Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation
Specifications
Brand Name :
CN CABLE
Model Number :
NHXMH-J
Certification :
VDE
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
15days after payment
Packaging Details :
Drum
Construction :
Copper conductor :bare ,single-wired
Insulation :
VPE
Shielding :
aluminum foil screening,
Sheath : :
halogen free polymer
name :
Halogen free cable
model :
NHXMH-J
Description

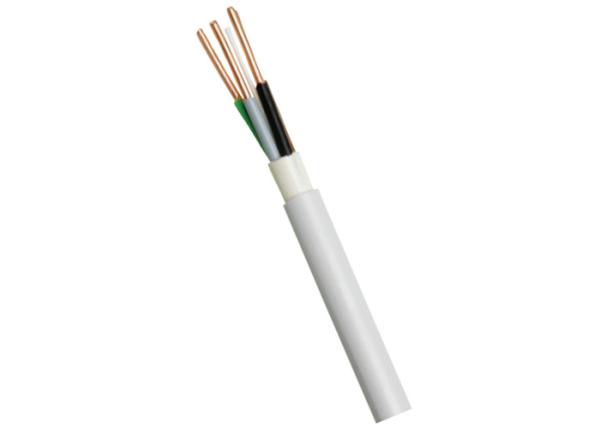

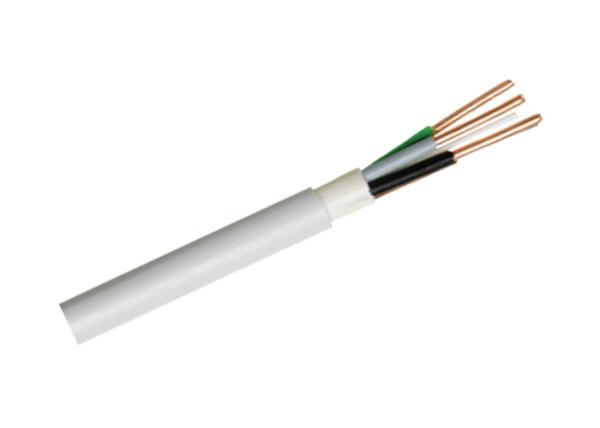

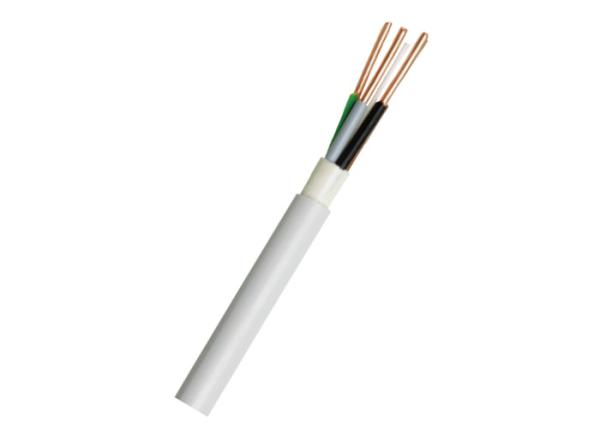

Halogen free sheathed cable with improved fire characteristics NHXMH-J type cable

Application

These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete, in and under plaster, not for underground installation. NHXMH-J/O are especially used in buildings with a high concentration of persons or valuable property, where improved fire characteristics are needed. Outdoor usage is only possible, as long as the cable is protected against direct UV-sunlight.

This product conform to 2006/95/EG directive(low voltage directive)

Construction

Copper conductor: plain, single-or multi-wired

Insulation: cross-linked polyethylene compound

Stranding: stranded cores, filling compound

Sheath: halogen free thermoplastic polymer compound

Technical data

Nominal voltage 300/500v

Test voltage: 2000v

Continuous conductor temperature: max.70℃

Minimum bending radius in fixed condition: 4*cable diameter

Outdoor Sheathed Halogen Free Cable Stranded Cores For Underground Installation

Section
mm2		 Colour Copper content
kg/km
NHXMH-J
1 x 1,5 re
3 x 1,5 re
4 x 1,5 re
5 x 1,5 re
7 x 1,5 re
10 x 1,5 re
12 x 1,5 re
16 x 1,5 re
21 x 1,5 re
24 x 1,5 re
1 x 2,5 re
3 x 2,5 re
4 x 2,5 re
5 x 2,5 re
7 x 2,5 re
1 x 4 re
3 x 4 re
4 x 4 re
5 x 4 re
1 x 6 re
3 x 6 re
4 x 6 re
5 x 6 re
1 x 10 re
3 x 10 re
4 x 10 re
5 x 10 re
1 x 16 rm
4 x 16 rm
5 x 16 rm
4 x 25 rm
5 x 25 rm
4 x 35 rm
NHXMH-O
1 x 1,5 re
2 x 1,5 re		 gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr
gr		 14,4
43,0
58,0
72,0
101,0
144,0
173,0
230,0
302,0
346,0
24,0
72,0
96,0
120,0
168,0
38,0
115,0
154,0
192,0
58,0
173,0
230,0
288,0
96,0
288,0
384,0
480,0
154,0
614,0
768,0
960,0
1200,0
1344,0
14,4
29,0
