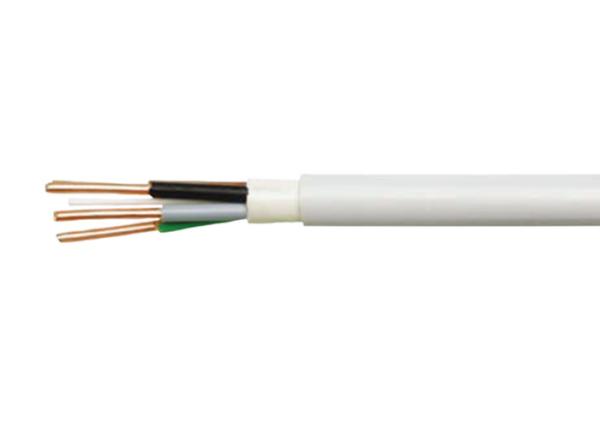

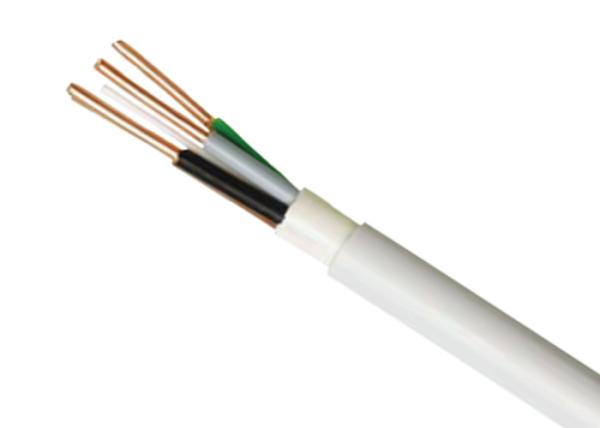

Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color
Specifications
Brand Name :
CN CABLE
Model Number :
NHMH-J / NHMH-O
Certification :
VDE
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
15days after payment
Packaging Details :
Drum
conductor :
Copper
insulation :
thermoplastic polymer compound
sheath :
halogen free thermoplastic polymer compound.
name :
copper conductor cable
model :
NHMH-J / NHMH-O
certification :
VDE
Description

plain single or multi copper conductor Halogen free sheathed cable NHMH-J and NHMH-O

Application

These cables are intended for fixed installation in dry and moist rooms as well as in masonry and concrete. In and under plaster, not suitable for imbedding in solidified or compressed concrete, not for underground installation. Outdoor usage is only possible. As long as the cable is protected against direct UV-sunlight.

The product conforms to 2006/95/EG directive(low voltage directive)

Construction

Copper conductor: plain single- or multi-wired

Insulation: thermoplastic polymer compound

Core identification: acc.to VDE0293

Stranding: stranded cores, filling compound

Sheath: halogen free thermoplastic polymer compound.

Technical data

Nominal voltage: 300/500V

Test voltage: 2000V

Continuous conductor temperature: max.70℃

Minimum bending radius in fixed condition: 4*cable diameter

Fixed Installation Copper Conductor Cable Halogen Free Sheathed White Color

Section mm2 Copper content kg/km Section mm2 Copper content kg/km
NHMH-J NHMH-O
3*1.5 43.0 1*1.5 14.4
3*1.5 43.0 2*1.5 29.0
4*1.5 58.0 3*1.5 43.0
4*1.5 58.0 4*1.5 58.0
5*1.5 72.0 7*1.5 101.0
5*1.5 72.0 1*2.5 24.0
7*1.5 101.0 2.*2.5 48.0
3*2.5 72.0 3*2.5 72.0
3*2.5 72.0 4*2.5 96.0
4*2.5 96.0 4*2.5 96.0
4*2.5 96.0 1*4 38.0
5*2.5 120.0 2*4 77.0
5*2.5 120.0 4*4 154.0
7*2.5 168.0 1*6 58.0
1*4 38.0 2*6 115.0
3*4 115.0 4*6 230.0
4*4 154.0 1*10 96.0
5*4 192.0 2*10 192.0
1*6 58.0 4*10 384.0
3*6 173.0 1*16 154.0
4*6 230.0 4*16 614.0
5*6 288.0 4*25 960.0
1*10 96.0 4*35 1344.0
3*10 288.0
5*10 480.0
4*10 384.0
1*16 154.0
4*16 614.0
5*16 768.0
4*25 960.0
5*25 1200.0
4*35 1344.0
