EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable
Specifications
Brand Name :
CN CABLE
Model Number :
SHD power cable
Certification :
CE
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
20days after payment
Packaging Details :
roll ,drum
Conductor :
2 AWG thru 3/0 AWG coated annealed copper, bunched wires,
Insulation :
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield: :
A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape
Grounding Conductors :
Coated copper, rope-lay-stranded per
Jacket :
Reinforced, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
Description

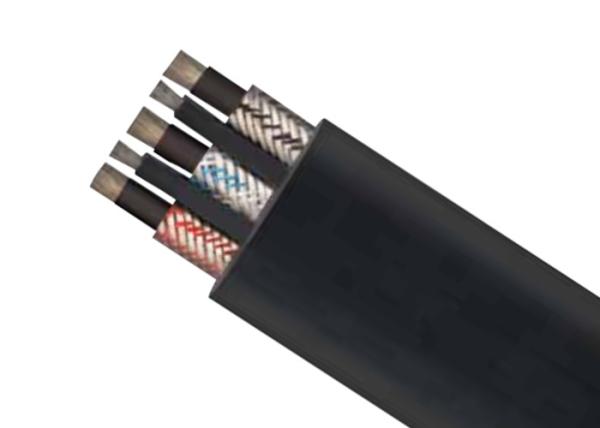

SHD Power, Flat Portable w/Ground, EPR/CPE 2000 Volts, 90˚C, Three Conductor power cable

Product Construction
Conductor:

2 AWG thru 3/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172
Insulation:
Ethylene Propylene Rubber (EPR) insulation
Insulation Shield:
A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape

Grounding Conductors:
Coated copper, rope-lay-stranded per
ASTM B172
Two conductors, shaped and covered with an extruded semi-conducting shield
Jacket:
Reinforced, extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE)
Options:
Colored jackets are available jacket
Applications:
Designed for use as trailing cables on AC mining
equipment:
Where induced voltages in the grounding system will not produce a hazard
On low- and medium-voltage AC circuits where shielding is desired or required
Features:
Flexible insulation shield provides shock hazard
protection
Excellent heat, moisture, steam, oil, chemical and radiation resistance
Flexible for easy handling
Features (cont’d):

Resists cutting, impact, abrasion, flame and
sunlight
Excellent thermal stability and physical properties over a broad temperature range
Compliances:
ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications
Meets flame test requirements and is accepted for listing by MSHA
Approved by the Pennsylvania Department of Environmental Protection
Packaging:
Material cut to length and shipped on nonreturnable reels

EPR / CPE 2000 Volts Special Cables Three Annealed Copper Conductor Power Cable

2 AWG THRU 3/0 AWG CONDUCTORS, THREE CONDUCTOR,
FLAT PORTABLE W/GROUND, TYPE SHD - 2000 VOLTS

NO. OF COND. COND.
SIZE
(AWG)		 COND. STRAND NOMINAL
INSULATION
THICKNESS		 GRD.
COND.
SIZE
(AWG)		 NOMINAL
CABLE
DIMENSIONS		 COPPER
WEIGHT		 NET
WEIGHT		 AMPACITY
INCHES mm INCHES mm LBS/1000 FT kg/km LBS/1000 FT kg/km
3 2 259 0.070 1.8 6 0.94 x 2.45 23.9 x 62.2 938 1395 2243 3338 159
3 1 259 0.080 2.0 5 1.04 x 2.64 26.4 x 67.1 1156 1721 2540 3780 184
3 1/0 259 0.080 2.0 4 1.08 x 2.82 27.4 x 71.6 1414 2104 2915 4338 211
3 2/0 329 0.080 2.0 3 1.18 x 2.99 30.0 x 76.0 1766 2628 3346 4980 243
3 3/0 413 0.080 2.0 2 1.25 x 3.29 31.8 x 83.6 2173 3234 3890 5789 279
