5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket
Specifications
Brand Name :
CN CABLE
Model Number :
MV CABLE
Certification :
IEC
Place of Origin :
Henan
MOQ :
1000meters
Payment Terms :
L/C, T/T
Delivery Time :
20 days
Packaging Details :
wooden drum. iron-wooden drum
Name :
MV Power Cable
Conductor :
Copper
Insulation :
XLPE Insulation
Screen :
Copper Tape
Sheath :
PE
Color :
Purple or Black
Description

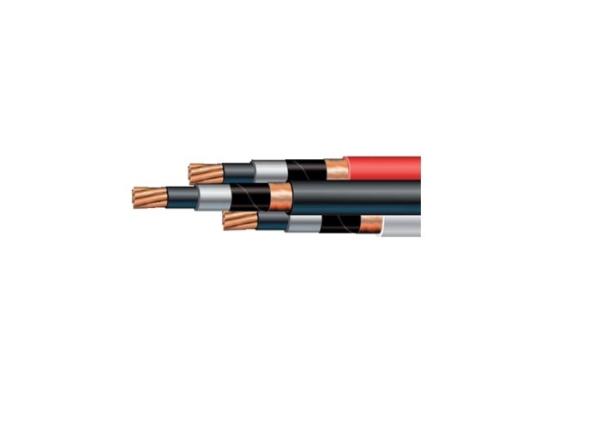

5kv Airport Airfield MV Power Cable Copper Conductor PVC Jacket

MV Power Cable construction:

A. Bare or Stranded Tinned Cu Conductor

B. Semi-conductive Layer

C. XLPE insulation

D. Semi-conductive Layer

E. Copper tape shielding

F. PVC jacket

Packing Material:Coil, Box, Pallet, Drum

5kv Airport Airfield MV Power Cable Copper Conductor PVC jacket

MV Power Cable Parameters

Section

Area

Nominal

(mm2)

 Insulation thickness nominal (mm) Shielding

Copper Tape Thickness

(mm)

 Outer sheath

Outer

Diameter Approx. (mm)

Weight

(kg/km)
1 x 6 2.2 Copper Tape 0.10 XLPE 13.8 263
1 x 6 2.2 Copper Tape 0.10 PVC 13.8 278
1 x 6 2.2 Copper Tape 0.10 PE 13.8 263
1 x 8 AWG 2.2 Copper Tape 0.10 XLPE 14.2 285
1 x 8 AWG 2.2 Copper Tape 0.10 PVC 14.2 315
1 x 8 AWG 2.2 Copper Tape 0.10 PE 14.2 285
