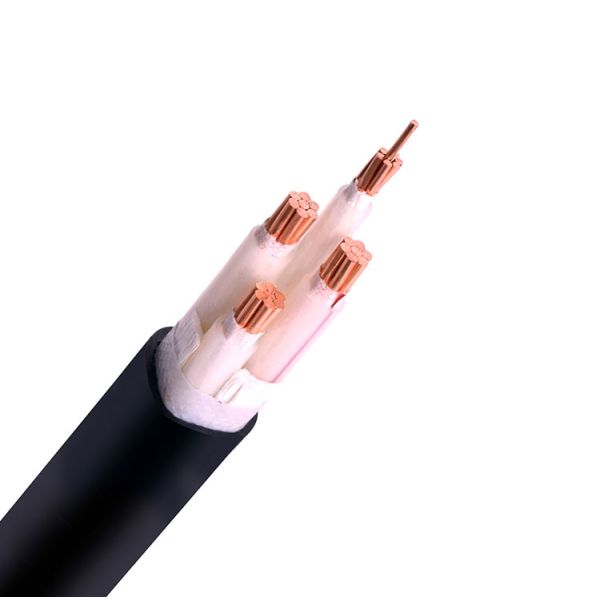

Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
Specifications
Place of Origin :
china
Brand Name :
OEM
Supply Ability :
50000meters per week
Packaging Details :
wooden drum
MOQ :
200 meters
Price :
Negotiable
Certification :
ISO/RoHS/CE
Delivery Time :
5-15day
Payment Terms :
L/C, T/T
Insulation Material :
Xlpe
Type :
High Voltage
Application :
Construction
Conductor Material :
Copper
Jacket :
PVC
Color :
Request
Product name :
XLPE Insulated
Conductor :
Bare Copper
Insulation :
Mica+XLPE
Core :
Multi-core
Name :
high voltage power cable
Rated voltage :
11KV 66KV
Description

Cross Linked Polyethylene 11KV 66KV 185mm2 150mm2 HV Power Cable

Product feature and purpose:

Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In term of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
Operative standard:
GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
Operational performance:
The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).

NO.of cores×section
(mm²)

Normal insulation

thickness(mm)

Normal thickness of

oversheath

Approximate overall

diameter of cable(mm)

Approximate weight

of cable(kg/km)
Cu AL
Unarmoured Armoured Unarmoured Armoured YJV YJV22 YJLV YJLV22
4×4 0.7 1.8 1.8 12.5 18.1 282 430 / /
4×6 0.7 1.8 1.8 14.7 17 383 545 / /
4×10 0.7 1.8 1.8 16.9 19.1 565 752 390 517
4×16 0.7 1.8 1.8 19.3 21.6 783 1020 416 663
4×25 0.9 1.8 1.8 23.5 25.7 1241 1502 593 902
4×35 0.9 1.8 1.8 26.7 28.7 1631 1957 776 1096
4×50 1.0 1.8 1.9 28.0 32.6 2080 2812 961 1770
4×70 1.1 2.0 2.1 33.2 37.5 2952 3796 1302 2222
4×95 1.1 2.1 2.3 38.0 42.6 3970 4962 1693 2757
4×120 1.2 2.3 2.4 40.9 46.4 4894 5913 2077 3363
4×150 1.4 2.4 2.6 46.0 51.3 5980 7170 2852 3878
4×185 1.6 2.6 2.7 52.5 57.8 7442 8802 3173 4618
4×240 1.7 2.8 3.0 59.4 64.6 9764 11289 4032 5782
4×300 1.8 3.0 3.1 66.2 71.6 12122 13856 4924 6735
4×400 2.0 3.3 3.4 73.8 80.3 15624 18407 6272 9313
4×500 2.2 3.5 3.7 89.3 96 19877 23264 7667 11062
4×630 2.4 3.8 4.0 99.6 106.3 25124 28895 9514 13293

Cross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power CableCross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power CableCross Linked Polyethylene 11KV 66KV 120mm2 150mm2 HV Power Cable
