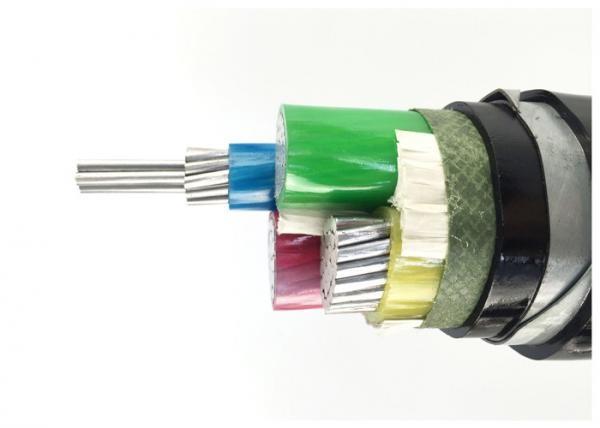

35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable
Specifications
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Price :
Negotiable
Conductor Core :
Copper or Aluminum
Insulation :
Crosslinked Polyethylene (XLPE)
Outer Sheath :
Polyvinyl Chloride (PVC) or Polyethylene (PE)
Armour Type :
STA/SWA/AWA Armoured or Unarmoured
Voltage :
600V to 35KV
Cross Section Area :
0.75mm2-1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Color :
Black (or customized)
Description

10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core Xlpe Cable

Number of cores:

1 core, 2 core , 3 core , 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core

XLPE Electrical Cables Application:


XLPE insulated electrical cable has more advantages than PVC insulated electrical cable including the characteristics of high electric strength, mechanical strength, anti-chemical corrosion etc. In addition xlpe cable has higher long-term working temperature and current-carrying capacity than PVC cable. So xlpe cable is widely used in indoor, tunnel, canal, power plant etc.

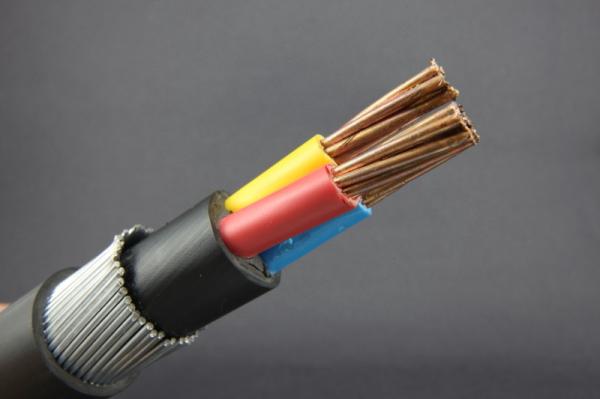

35KV 10mm2 25mm2 35mm2 Anti Chemical Corrosion 4 Core XLPE Cable

XLPE Electrical Cables Service Characteristics:

1. The long working temperature of xlpe cable should not be higher than 90℃.


2. The temperature should not exceed 250℃ in short-circuit (max. 5s).


3. The ambient temperature should be above 0℃ otherwise the cable should be preheated when installed.


4. Bending radius of cable:

single core cable: 20*(D+d)±5% 2~5 core cable: 15*(D+d)±5%

Remarks: D (overall diameter of cable) d (diameter of conductor)

XLPE Electrical Cable Types:

0.6/1kV XLPE Insulated Electrical Cable
XLPE Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/PVC copper core, xlpe insulated, pvc sheathed, electrical cable

1 core

2 core

3 core

4 core

5 core

3+1 core

3+2 core

4+1 core

1.5, 2.5,

4, 6,

10, 25,

35, 50,

70, 95,

120, 150,

185, 240,

300, 400, 500, 630, 800, 1000
Al/XLPE/ PVC aluminum core, xlpe insulated, pvc sheathed, electrical cable
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electrical cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable
Al/XLPE/SWA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electrical cable
