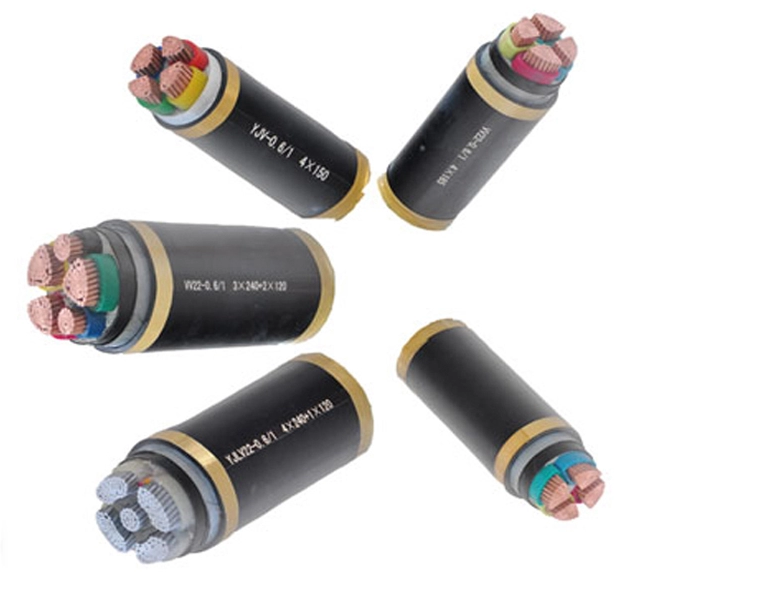

600V Fire Retardant Cable
600V Fire Retardant Cable
600V Fire Retardant Cable
600V Fire Retardant Cable
Specifications
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Application :
Heating,Alarm system and Signaling
Insulation material :
Fiberglass,XLPE
Product name :
Fire Resistant pure nickel high temperature mica cable
Color :
black and others,Customized
Insulation :
Fiberglass,XLPE PE PVC
Standard :
IEC60502
Price :
Negotiable
Description

600V Fire Retardant Cable

Used for electric heating,petrochemical and mechanical equipment,power plant, drying path drying room,heating source for lighting,electric appliances and other high temperature areas

Conductor:Nickel-plated copper wire
Temperature Range:-60℃~+450℃
Rated Voltage:600V
Color:Customer Requipment

1. Fire-resistant power cable with PVC insulation,PVC sheath :Laying indoors,in tunnels and pipelines,the cable can not bear external pressure and mechanical force from outside

2. Fire-resistant soft power cable with PVC insulation,PVC sheath:Laying fixedly on the soft occasion

3. Fire-resistant power cable with PVC insulation,steel tape armoring,PVC sheath:Laying indoors,in tunnels and pipelines,the cable can not bear external pressure and other force from outside

4. Fire-resistant power cable with PVC insulation,steel wire armoring,PVC sheath :Laying indoors,in mines and in water,the cable can bear considerable pulling force

5. Fire-resistant power cable with PVC insulation,heavy steel wire armoring,PVC sheath:Laying in shafts and underwater and other vertical places,the cable can bear considerable radial pulling force

Fire resistance electrical cable fire proof cable Fire Resistant Cable

AWG
Conductor Constrution No.X(mm)
(mil)
Diam
(mm)
(mil)
Insulation Thickness
(mm)

(mil)
Over
Diam
(mm)
(mil)
Max. Conductor
Resistance DC 20℃ Ω/Km
20
7/0.30
7/11.8
0.9
35.4
0.64
25.2
2.1±0.3
82.7±0.3
36.7
18
11/0.30
11/11.8
1.15
45.3
0.64
25.2
2.3±0.3
90.6±0.3
23.2
17
14/0.30
14/11.8
1.3
51.2
0.64
25.2
2.4±0.3
94.5±0.3
18.3
16
18/0.30
18/11.8
1.5
59.1
0.64
25.2
2.6±0.3
102.4±0.3
14.6
15
21/0.30
21/11.8
1.6
63.0
0.64
25.2
2.7±0.3
106.3±0.3
11.3
14
28/0.30
28/11.8
1.85
72.8
0.64
25.2
3.0±0.3
118.1±0.3
8.96
13
35/0.30
35/11.8
2.1
82.7
0.64
25.2
3.2±0.3
126.0±0.3
7.1
12
49/0.30
49/11.8
2.7
106.3
0.64
25.2
3.8±0.3
149.6±0.3
5.64
11
56/0.30
56/11.8
2.8
110.2
0.76
29.9
4.6±0.5
181.1±0.5
4.48
10
77/0.30
77/11.8
3.4
133.9
0.76
29.9
5.2±0.5
204.7±0.5
3.54
8
112/0.30
112/11.8
4.2
165.4
0.76
29.9
6.0±0.5
236.2±0.5
2.23
7
140/0.30
140/11.8
4.5
177.2
0.76
29.9
6.3±0.5
248.0±0.5
1.76
6
190/0.30
190/11.8
5.5
216.5
0.76
29.9
7.3±0.5
287.4±0.5
1.4
5
228/0.30
228/11.8
6
236.2
0.76
29.9
7.8±0.5
307.1±0.5
1.11
4
304/0.30
304/11.8
7
275.6
0.76
29.9
8.8±0.5
346.5±0.5
0.88
3
380/0.30
380/11.8
7.8
307.1
0.89
35.0
9.8±0.5
385.8±0.5
0.69
2
494/0.30
494/11.8
8.8
346.5
0.89
35.0
10.7±0.5
421.3±0.5
0.55
1
342/0.30
342/11.8
9.8
385.8
0.89
35.0
11.2±0.5
440.9±0.5
0.43
1/0
396/0.30
396/11.8
10.6
417.3
0.89
35.0
11.7±0.5
460.6±0.5
0.34
2/0
532/0.30
532/11.8
12.2
480.3
0.89
35.0
12.9±0.5
507.9±0.5
0.27
3/0
684/0.30
684/11.8
13.9
547.2
0.89
35.0
14.2±0.5
559.5±0.5
0.21
4/0
836/0.30
836/11.8
15.3
602.4
0.89
35.0
15.7±0.5
618.1±0.5
0.17

Fire resistance electrical cable fire proof cable Fire Resistant Cable

600V Fire Retardant Cable
