0.27mm 18AWG PVC Insulation Copper Conductor Fire Resistant Cable
0.27mm 18AWG PVC Insulation Copper Conductor Fire Resistant Cable
0.27mm 18AWG PVC Insulation Copper Conductor Fire Resistant Cable
0.27mm 18AWG PVC Insulation Copper Conductor Fire Resistant Cable
Specifications
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Price :
Negotiable
Application :
Mining,Alarm system and Signaling
Insulation material :
Fiberglass,
Conductor material :
copper
Type :
Insulated
Conductor type :
Stranded,flexible
Color :
black and others
Description

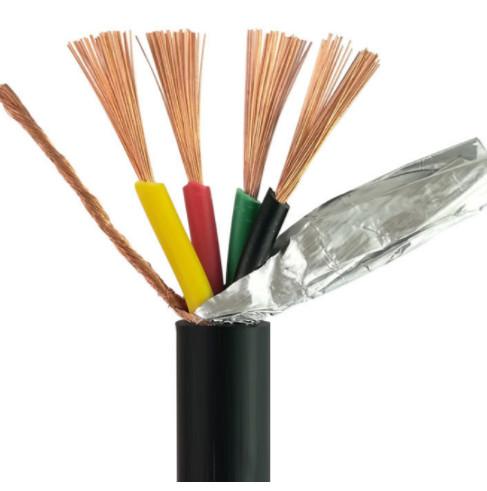

18AWG PVC Insulation Copper Conductor Fire Resistant Cable

Apply to low voltage circuit, remote control, security system, communication system and talkback etc.

Fire Protective Signaling Circuits, Smoke Detectors, Strobes/Sirens, Pull stations
Voice Communications, Burglar Alarms, Audio, Control, Initiating & Notification Circuits, Microprocessor/Addressable Controlled Systems.

The products can be produce according to the standard IEC 60502. Our factory can also design and manufacture special XLPE cable according to the other standards required by the customers'. They not only have excellent electric conductivity mechanical properties, but also have powerful resistance against chemical corrosion, heating and environmental stress. Their structure are simple. The permissible maximum operating temperature is 90° C. It is convenient for using, and they can be laid with no restriction of different elevation.

Fire performance cable flame retardant cable Fire resistant cable

Conductor Material Stranded Bare Copper
Size 18AWG X 4C
Construction 16/0.24mm(0.254mm)
Insulation Material PVC
Min. Thickness 0.27mm
AVG. Thickness 0.30mm
Diameter 1.70±0.05mm
Colors Black & Red & White & Green
Jacket Material PVC
AVG. Thickness 0.50mm
Min. Thickness 0.45mm
Diameter 5.10±0.10mm
Rip Cord Nylon
Colors Per request

Fire performance cable flame retardant cable Fire resistant cable

0.27mm 18AWG PVC Insulation Copper Conductor Fire Resistant Cable
