Specifications
Brand Name :
Artcilux
Model Number :
A2303
Certification :
EMC CE RoHS
Place of Origin :
Guangdong, China
MOQ :
100pieces
Price :
9.5 USD per piece(negotiable)
Payment Terms :
T/T, L/C
Supply Ability :
100000piece/pieces per. Month rechargeable LED light
Delivery Time :
5-8 work days
Packaging Details :
Rechargeable LED Light
1 pc/ white box with PE foam
Packing :
1pc/white box
Height :
12mm
Number Of Leds :
30
Lifespan :
50,000 hours
Length :
1 meter
Warranty :
1 year
Material :
Aluminum
Installtion :
Recessed mounted
Keyword :
Mirror light
Shade Type :
Clear Glass
Color Temperature :
3000K or others
Shape :
customized
Rated Voltage :
12/24V
Size Mm :
1000*11*12mm
Dimmable :
Yes
Description

A2303 LED stripe light

Size(mm) Voltage Bead Type Color Temperature Power
1000*11*12 12 SMD2835(120PCS/m) WW:3000,NW:4000;CW:6000 14.4

Technical details

SIZE(mm): 1000/11/12

voltage(VDC): DC12V

LED type:SMD2835(120pcs/m)

CCT(K): WW3000, NW4000, CW6000

power(W): 14.4W

Important safety instructions:

  • for indoor use only
  • regularly check the cord, the transformer and all other parts for damage. If any part is damaged the product should not be use.
  • Important information! Please follow instruction requirements strictly when install and use these light fixture. Keep these instruction for future use.
  • The light source of this product is non-changeable light diodes(LED)
  • Do not immerse in water.

Maintenance

  • cannot replace the wires, if wire be damaged, please stop use it.
  • Use a dry cloth, never a strong cleaning agent.

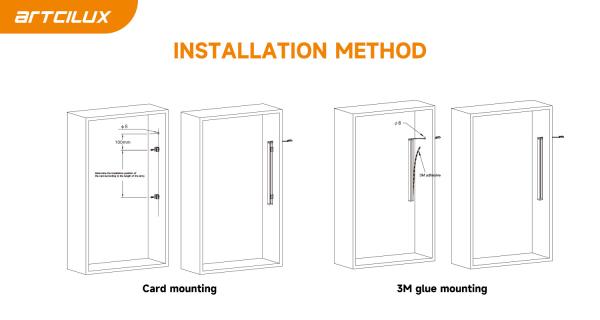

Installation option:

  • Use accessories install on surface. Accessories: screw x2, cover x 2
  • open wire hole: please open wire holes on installation position(diameter 8mm)
  • use screwdriver fix up screw/cover which need wire hole 100mm position
  • put lamp in the cover, put wire through the wire hole, and plug in power source.

Accessory Installation

  • 3M sticker installation, 3M (220mmx8mm), can follow other length upon request.
  • open hole on the installation position (see below image3)
  • slit off 3M sticker, put wire through hole. Stick on lamp on installation position(see image4)
