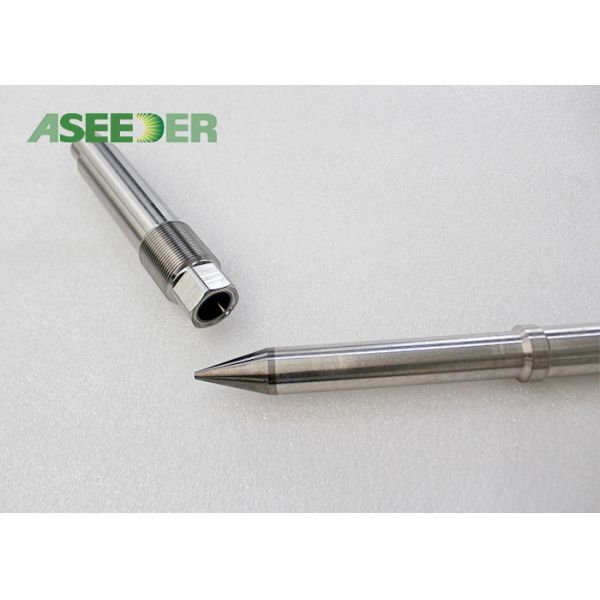

Wellhead equipment choke bean / choke stem with sufficient strength and rigidity

Choke bean is often used in the positive choke valve for controlling the flow, Aseeder choke bean is same as Cameron type H2 big john choke bean, body Material: 410SS, lined with Tungsten Carbide (C10 or C25) , to protect them from corrosive and abrasive wear.

On one side of the choke manifold, calibrated choke beans are used to control flow rate through the fixed choke box. Each bean is a specific diameter, usually in graduations of 1/64-132 inch, Depending on the type of equipment used, the size of the choke bean can be as large as 3 inches.

We can do the QPQ treatment on the body of choke bean, to enhance the surface hardness.

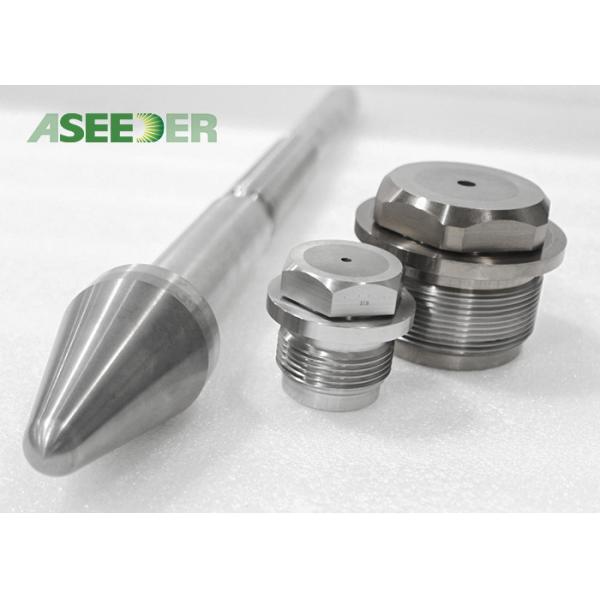

Choke stem and seat are the key parts for ajustable choke valves in wellhead equipment . Assembled with tungsten carbide tips and SS410 body .

1. Size : Usually according to customer's requirement
2. High precision
3. ISO

Choke bean is installed in positive choke to adjust the flow rate, reduce pressure, and calculate oil volume. Our choke is interchangeable with Cameron H2 Big John Choke Bean and OCT bean. Orifice material is hard alloy which can undertake sand blast and promote choke bean life.

Bean Size Gauge is one gauge to test choke bean orifice size. If the remark on choke bean is not clear, this gauge can be used to test orifice size.

Tungsten Carbide Materials Grade As Below:

Features:

1. Sufficient strength and rigidity.

2. Good impact toughness.

3. Abrasion resistance.

4. Corrosion resistance.

5. Long service life.

6. Anti-compression.

7. Excellent thermal shock resistance.

8. Good sealing character

9. Nice sealing character

PACKING WAY :
1.Packaging way: Foam paper + carton box /wooden case
2.Shipping way : By DHL,UPS,Fedex ,TNT express , By air , By sea

OUR SERVICE
1. Customized material grade and production according to customer's requirement
2. Low MOQ
3. Free sample availble
4. Professional international transportation system to make sure high cost-effective ,safety service.
