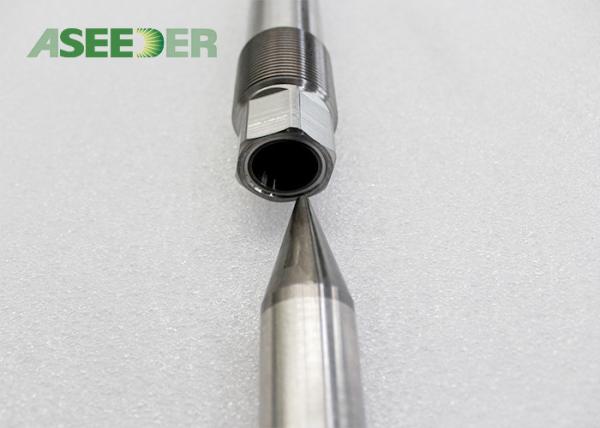

Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
Specifications
Brand Name :
ASEEDER
Model Number :
CHOKE SEAT-0023
Certification :
ISO,API
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
Negotation
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
15tons per month
Delivery Time :
5-8 weeks
Packaging Details :
1.Standard mooden case. 2.According to the requirements of your packaging.
Working Medium :
Oil, Natural gas, mud and gas containing H2S
Material :
Tungsten carbide
Rated Working Pressure :
5,000psi ~ 20,000psi
Media :
oil
Size :
Customized
Temperature :
K ~ U
Description

Tungsten Carbide Valve Choke Bean / Choke Seat / Choke Beans For Oil Field

Product Description


Choke bean used in the positive chokes for controlling the flowrate,and are usually mounted on or close to the wellhead equipment.High pressure gas/oil, with abrasive sand minerals passes through these chokes at high speed causing rapid wear. Bean chokes contain a replaceable insert, or bean, made from hardened steel or similar durable materials.

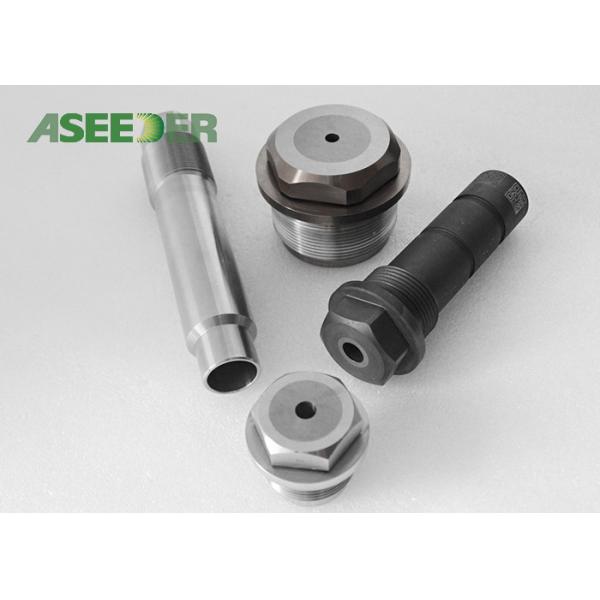

Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance

The technical parameters about choke seat

Item Technical Description
Nominal Bore 1 13/16"- 7 1/16" (46mm - 180mm)
Working Pressure 2000 PSI – 20000 PSI
Working Temperature Class LU (-46°C~121°C)
Working Medium Oil, Natural gas, mud and gas containing H2S


Main features of our choke beans
1. Choke bean size: 4/64" ~ 192/64" in increment with 1/64".
2. Medium: oil, natural gas,water, sand, including H2S
3. Tungsten carbide and ceramic choke bean are all available.
4. The bonnet connection form is union, which is more convenient to replace bean.
5. The bean orifice is made of ceramics or hard alloy with wearing resistance and washing resistance.
6. Can be customizable.

DN
(in)

Pressure
(PSI)

A
(in)

B
(in)

Оrifice
(in)

 Series
Adjustable Choke (standard delivery: max orifice)
2 1/16 2,000 5.51 7.95 1/2, 3/4, 1 920
2 9/16 6.50 8.50 3/4, 1, 1 1/2
3 1/8 7.00 9.25 1, 1 1/2, 2
4 1/16 8.58 10.00 1 1/2, 2, 3
2 1/16 3,000 6.50 7.95 1/2, 3/4, 1
2 9/16 7.75 8.50 3/4, 1, 1 1/2
3 1/8 7.75 9.25 1, 1 1/2, 2
4 1/16 9.06 10.00 1 1/2, 2, 3
2 1/16 5,000 6.50 7.95 1/2, 3/4, 1
2 9/16 7.75 8.50 3/4, 1, 1 1/2
3 1/8 8.74 9.25 1, 1 1/2, 2
4 1/16 10.00 10.00 1 1/2, 2, 3
2 1/16 10,000 6.50 8.27 1/2, 3/4, 1 924
2 9/16 7.75 8.50 3/4, 1, 1 1/2
3 1/16 10.24 11.80 1, 1 1/2, 2
2 1/16 15,000 6.50 8.27 1/2, 3/4, 1
2 9/16 7.75 8.50 3/4, 1, 1 1/2
3 1/16 10.24 11.81 1, 1 1/2, 2































Tungsten Carbide Premium Choke Bean , Positive Choke Valve Low Maintenance
