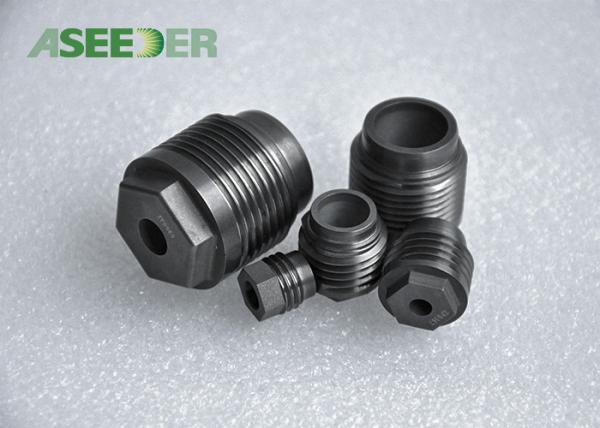

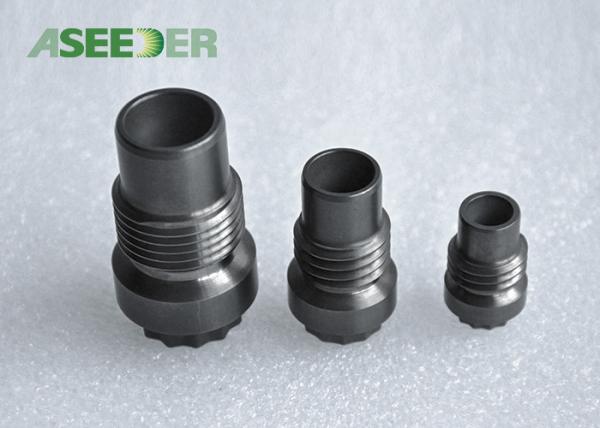

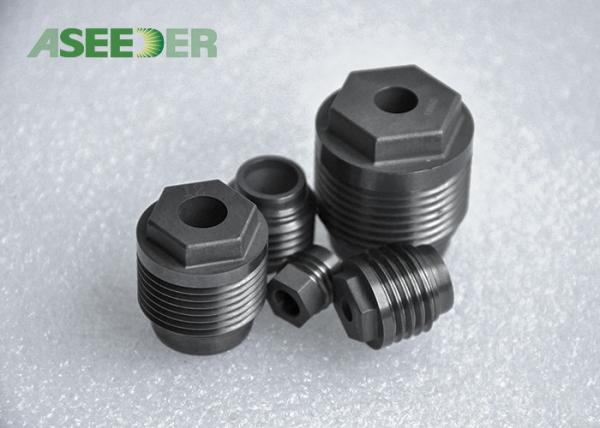

Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry
Specifications
Brand Name :
ASEEDER
Model Number :
AN-031
Certification :
ISO,TDS,API, ASP9100
Place of Origin :
CHINA
MOQ :
20 pieces for Standard package customer's demand
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per months
Delivery Time :
30 working days
Packaging Details :
Standard package or to customer's demand
Materials :
tungsten carbide
Industry :
Petroleum,Chemical and Mechanic Industry
application :
PDC drilling bit
type :
Inner hexagon
Packing :
plastic cylinder
Name :
Inner hexagon pdc drill bit tungsten carbide thread nozzle for petroleum industry
Description

Outer hexagon pdc drill bit tungsten carbide thread nozzle for petroleum industry

Tungsten carbide nozzle is mainly used in chemical industry, food, machinery, metallurgy, architecture and other industries for pulverizing, derusting, cleaning, atomization, etc. Aseeder drill bit nozzles are mainly for Oil Drilling Tools.

Features:

Aseeder drill bit nozzle have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Benefit

  • High efficiency for cooling, cleaning and cuttings evacuation, extend the drilling bit lift.

  • When tightening nozzle reduced pop-up force.

Recommended tungsten carbide grade list

Grade Co
(Wt %)		 Density
(g/cm3)		 Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000

Advantage::

  •  High stability, long lifespan circle.
  •  Customized as your requirements.
  •  Approved factory for oil and natural gas industry TOP10 customers.
  •  With ASP9100 certificate , API certificate, ISO9001:2015
  •  With a Special Thread Processing Workshop

Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

Outer Hexagon PDC Drill Bit Tungsten Carbide Thread Nozzle For Petroleum Industry

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
