Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle
Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle
Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle
Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle
Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle
Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle
Specifications
Brand Name :
ASEEDER
Model Number :
AN-060
Certification :
ISO,TDS,API, ASP9100
Place of Origin :
CHINA
MOQ :
negotiation
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per months
Delivery Time :
30 working days
Packaging Details :
Standard package or to customer's demand
Name :
Tungsten Carbide Oil Spray Nozzle
Feature :
Anti Corrosion
Usage :
Drill Bit Nozzle
application :
oil service
type :
tungsten carbide nozzle
packing :
plastic cylinder
Description

Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle

Tungsten Carbide Oil Spray Nozzle Description

Tungsten carbide nozzle is made by the precision machining with the tungsten carbide materials (super hard alloy). The hardness reached over HRA 90 degree while the antibending degree reached over 2300N/mm, is mainly used in mining industry, petroleum industry, sandblasting gun industry, chemical industry, food, machinery, metallurgy, architecture and other industries for flushing, cooling and lubricating cleaning, etc. Most often, they are used in PDC drill bits and cone roller bits for water cooling and slurry scouring in the working conditions of high pressure, vibration, sand and slurry impacting during oil and natural gas prospecting. We are specilized on manufacturing Cemented tungsten carbide spary nozzle of oil field.

Tungsten Carbide Oil Spray Nozzle Parameters

Grade Co
(Wt %)		 Density
(g/cm3)		 Hardness (HRA) TRS
(≥N/mm²)
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000

Tungsten Carbide Oil Spray Nozzle Advantage::

  •  High stability, long lifespan circle.
  •  With ASP9100 certificate , API certificate, ISO9001:2015
  •  With a Special Thread Processing Workshop

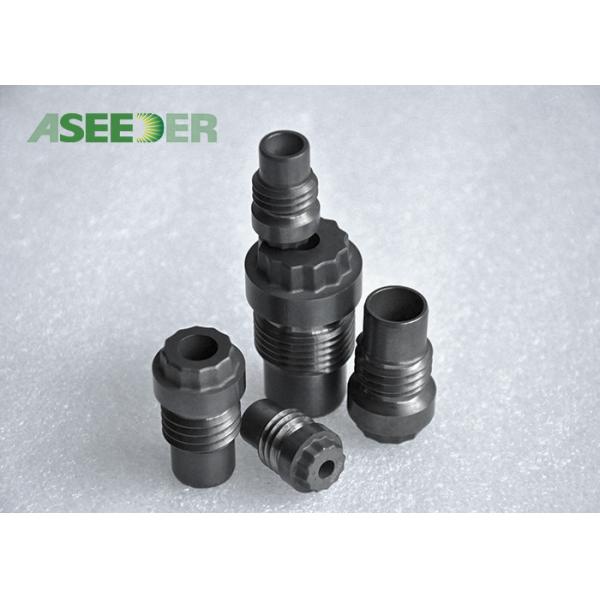

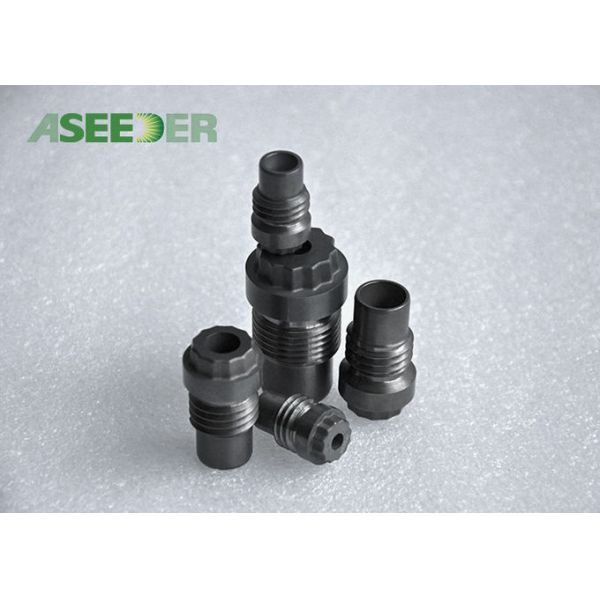

Tungsten Carbide Oil Spray Nozzle Pictures

Anti Corrosion Tungsten Carbide Oil Spray Nozzle , Hard Drill Bit Nozzle

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
