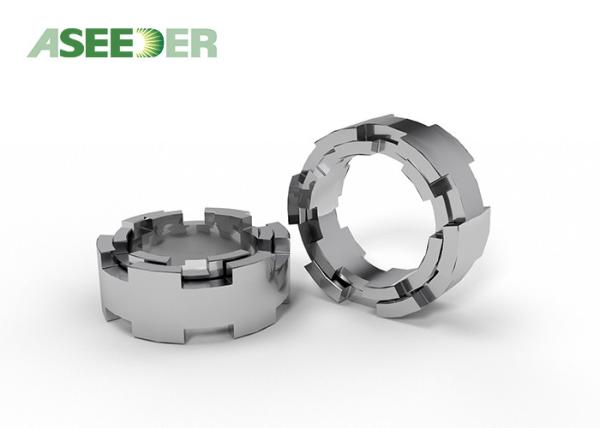

High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
Specifications
Brand Name :
SEED
Model Number :
Bearing NY-122
Certification :
ISO,TDS,API
Place of Origin :
CHINA
MOQ :
20 pieces
Price :
To be negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5-8 weeks depend on quantity
Delivery Time :
5-8 workdays
Packaging Details :
Aseeder standard packing or as customer's demand
Features :
Wear-resisting Long Life
Packing :
Wood package
Service :
Customize ODM OEM
Usage :
Oil Industry
Surface treatment :
Sandblasting
Hardness :
30-70HRC
Description

PDC Thrust Radial Bearing Used For Downhole Motor With Long Lasting Time

Polycrystalline Diamond (PCD) radial bearings are comprised of a series of PCD inserts assembled (usually by brazing) in carrier rings. A typical PCD radial bearing set includes a rotating and stationary bearing ring. These two rings oppose each other with the PCD surface on the inside diameter of one ring in direct contact with the PCD surface on the outside diameter of the mating ring.

1. Product Introduction of PDC Thrust bearing

PDC Thrust Bearing is widely used in turbo drills,mud motors and other oil field applications. We have two different types includes PDC radial bearing and PDC thrust bearing.Compared with tungsten carbide bearing,The PDC bearing has longer working life,its life is 4-10 times longer than tungsten carbide bearing, meanwhile it can also bear the increased load capacity.

2. Product Specification of PDC Thrust bearing

The bearings are available in size from 1inch to 10inch in diameter.

We can make PDC Radial bearing and PDC Thrust bearing as your specific drawings or samples.

·Highly resistant to abrasion, erosion, corrosion, and mechanical failure

·Extremely resistant to chipping, cracking, and flaking which are inherent problems in cladding or welded overlay processes

·High heat conductivity eliminates thermal cracking

·Proprietary design eliminates catastrophic downhole radial bearing failure

·Carbide tile and matrix design ensures extended life compared to cladding or welded overlay designs

·Inner and outer components can be reconditioned.

·The hardness of body surface can reach 30-37 HRC.

High Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole MotorHigh Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole MotorHigh Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole MotorHigh Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole MotorHigh Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole MotorHigh Strength PDC Thrust Bearing , PDC Cutter Insert Bearing For Downhole Motor
