Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy
Specifications
Brand Name :
ASEEDER
Model Number :
Choke beans-0247
Certification :
ISO,GE,API
Place of Origin :
CHINA
MOQ :
20 pieces
Price :
Nogetation
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
15-20 workdays
Packaging Details :
Aseeder standard packing or customized packing
Medium :
oil and gas accompanied with sour gas or / and sand
Application :
Flow control
Material :
Tungsten Carbide +Ss410
Key word :
Choke Stem and Seat
Transport Package :
Foam Paper Packing+Carton Box + Wooden Case
Rated Working Pressure :
5,000psi ~ 20,000psi
Description

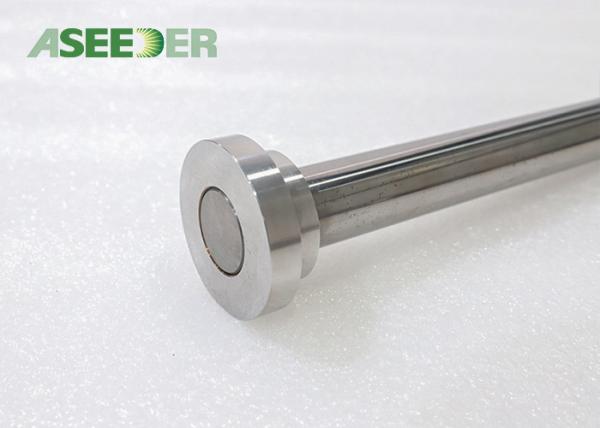

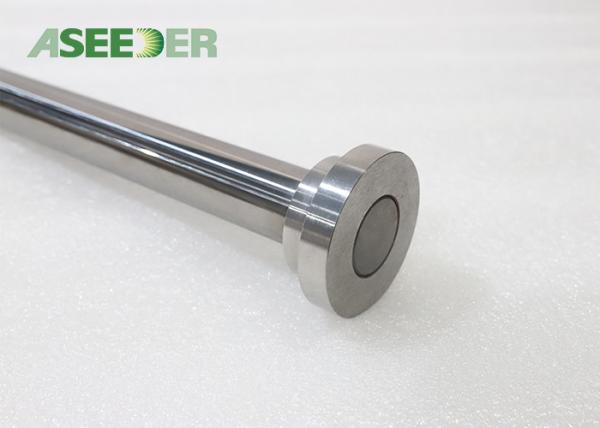

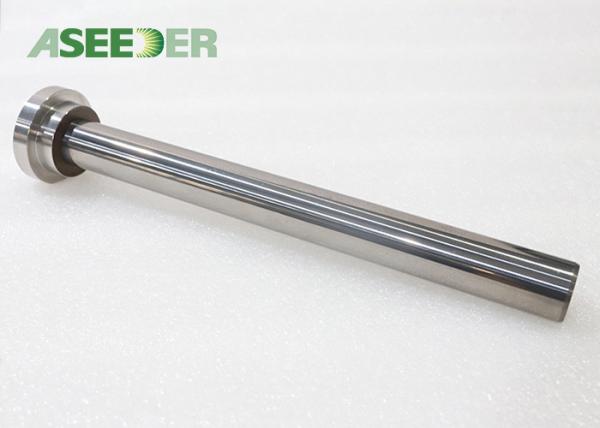

Customized tunsgten carbide choke valve stem and seat with high machining accuracy and precision

1. Tungsten carbide tip in conjunction with stainless steel stem provides optimum wear resistance in erosive conditions.
2. Carbide wear parts for oil and gas industry, wellhead assembly (eg. Christmas tree, multi­stage choke manifold)
3. Customized tunsgten carbide choke valve stem and seat according to drawings.

Product Parameters

TYPE Dimension (mm) Material
Recommended
D d1 d L α°
Valve Core 52-80 40-70 10-40 75-120 10-45 Tungsten+Cobalt
TYPE Dimension (mm)

Material

Recommended
D d L
Valve Seat 75-100 55-70 20-80 Tungsten+Cobalt

Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy

.

Customized Tungsten Carbide Choke Stem And Seat High Machining Accuracy

1. Size : Usually according to customer's requirement
2. High precision
3. ISO

Tungsten Carbide Materials Grade As Below:

Aseeder Grade Co
(Wt %)		 Density
(g/cm3)		 Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000

Features:

1. Use 100% tungsten carbide raw material
2. Stable chemical properties
3. Excellent performance and good wear / corrosion resistance
4. HIP sintering, good compactness
5. Blanks, high machining accuracy / precision
6. OEM customized sizes available

PACKING WAY :
1. Packaging way: Foam paper + carton box /wooden case
2. Shipping way : By DHL,UPS,Fedex ,TNT express , By air , By sea

OUR SERVICE
1. Customized material grade and production according to customer's requirement
2. Low MOQ
3. Free sample availble
4. Professional international transportation system to make sure high cost-effective ,safety service.

ABOUT US

1, Aseeder is one of the fast growing and leading manufacturers in China working specifically with cemented tungsten carbide.

We specialize in producing a wide range of wear part for oil & gas drilling, flow control items

2, From the selection of premium raw materials to the precision finishing and polishing of complex parts,ND performs all process steps. ND Carbide produces all of the carbide covered by the industry standards as well as custom grades to meet special customer requirements.
