Non Standard Customized Tungsten Cemented Carbide ASP9100 Certificated
Non Standard Customized Tungsten Cemented Carbide ASP9100 Certificated
Non Standard Customized Tungsten Cemented Carbide ASP9100 Certificated
Non Standard Customized Tungsten Cemented Carbide ASP9100 Certificated
Specifications
Brand Name :
ASEEDER
Model Number :
AN-028
Certification :
ISO,TDS,API, ASP9100
Place of Origin :
CHINA
MOQ :
10 pieces for Standard package customer's demand
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000pcs per months
Delivery Time :
30 working days
Packaging Details :
Standard package or to customer's demand
Materials :
cemented carbide,tungsten carbide,
Industry :
oil & gas , Mining machinery
Packing :
Plastic cylinder with foam
Feature :
wear resistance
Working Temperature :
per cusstomer's requirement
Keyword :
customized
Description

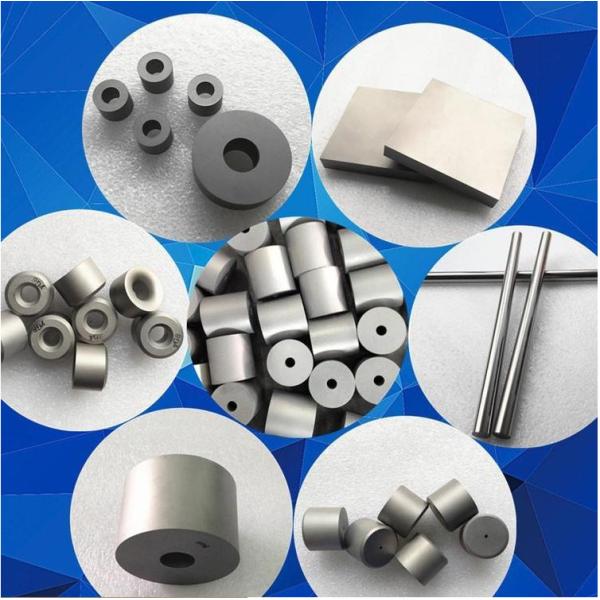

High quality Non-standard Customized Products Tungsten Cemented Carbide

SEED is the leading manufacturer and exporter of tungsten carbide components, Nozzles, radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application, should you have any interesting welcome to contact us for OEM service, thanks.

Features:

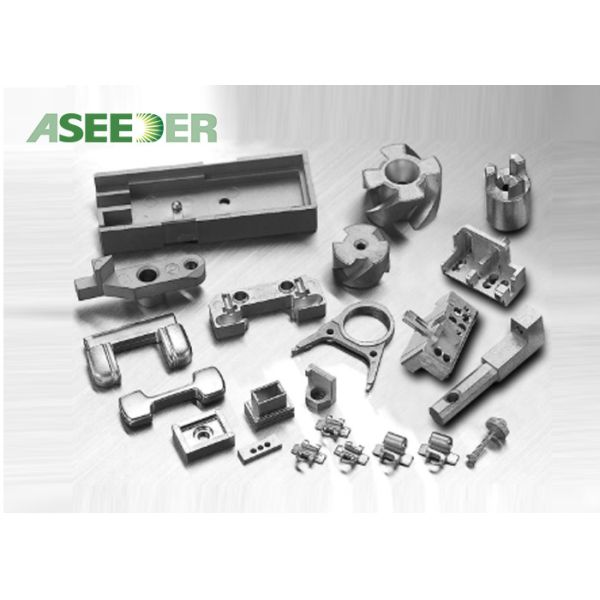

Aseeder Cemented tungsten carbide wear parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.

Recommended tungsten carbide grade list

Grade Co
(Wt %)		 Density
(g/cm3)		 Hardness (HRA) TRS
(≥N/mm²)
ZY11-C 9.0-11.0 14.33-14.53 88.6-90.2 2800
ZY15-C 15.5-16.0 13.84-14.04 85.6-87.2 2800
ZY15X 14.7-15.3 13.85-14.15 ≥89 3000
ZY20 18.7-19.1 13.55-13.75 ≥83.8 2800
ZY06X 5.5-6.5 14.80-15.05 91.5-93.5 2800
ZY08 7.5-8.5 14.65-14.85 ≥89.5 2500
ZY09 8.5-9.5 14.50-14.70 ≥89 2800
ZY10X 9.5-10.5 14.30-14.60 90.5-92.5 3000

Applications :

We are manufacturing Cemented Tungsten Carbide Wear Parts for use Oil & Gas Industry. Aseeder Cemented tungsten carbide wear parts are available in a wide range of styles and size combinations for Petroleum industry.

Advantage::

  •  High stability, long lifespan circle.
  •  Customized as your requirements.
  •  Approved factory for oil and gas industry TOP10 customers.
  •  With ASP9100 certificate , API certificate, ISO9001:2015
  •  With a Special Thread Processing Workshop

Package :

Each unit will be packed into a plastic cylinder with foam, then put on carton box.

Major Product Lines

· Wear resistant carbide components via powder metallurgy technique

· Hardfacing (oxy-acetylene spray, PTA, HVOF, etc.) and surface enhancement (phosphating, boronizing, etc.)

· High-precision machining of metals (S.Steel, carbon steel, Inconel 718, etc.)

· Additive manufacture

The products and technologies from Seed (Aseeder) have been widely applied in the fields of oil & gas, chemical engineering, subsea, nuclear power and aerospace industries. Mainly used in harsh operating conditions include severe abrasion, erosion, corrosion, high temperature, high pressure and strong impact. Our major clients are Fortune 500 companies. Seed is the leading export enterprise in China of wear-resistant cemented carbide products and the related high-precision machining techniques.

Non Standard Customized Tungsten Cemented Carbide ASP9100 Certificated剪切

Non Standard Customized Tungsten Cemented Carbide ASP9100 CertificatedNon Standard Customized Tungsten Cemented Carbide ASP9100 CertificatedNon Standard Customized Tungsten Cemented Carbide ASP9100 CertificatedNon Standard Customized Tungsten Cemented Carbide ASP9100 Certificated

Representative Products

Chokes and valves trim parts
Pumps seal rings
Labyrinth product series
Drill bit nozzles, inserts, cutters
MWD parts, downhole tool components
TC bearings, PDC thrust bearings
Downhole flow control components
Artificial lift pumps components
Super hard product series
Innovative hardfacing solutions
