Specifications
Brand Name :
PLS
Model Number :
PBA-16000
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS/MONTH
Delivery Time :
60-89 DAYS
Packaging Details :
SEA WORTHY PACKAGE
Name :
Aseptic Filling Machine
Condition :
New
Volume :
1000ml Base
Capacity :
6000PPH
Application :
Milk, Juice, Liquid Foods
Filling Temperature :
0-40℃
Dimension :
6180mm*3760mm*5500mm
Weight :
10000kg
Automatic Grade :
Automatic
Total Power :
35kw
After-Sales Service :
Engineers available to service machinery overseas
Warranty :
1 Year
Description

1L Aseptic Carton Filling Machine For Milk / Juice / Beverage

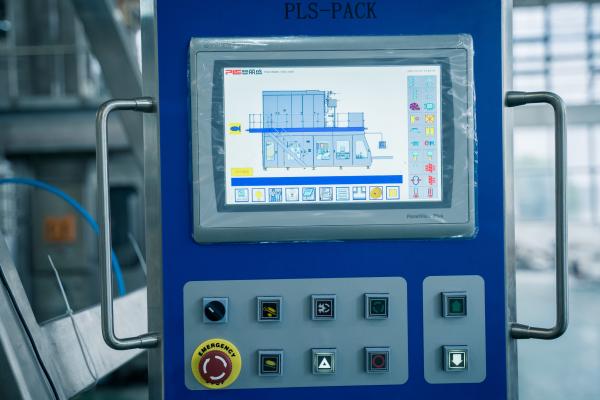

PLC human control, Human - Machine Interface with English and Chinese display. Intuitive operation and Low Fault rate. The forming system we choose our own patent rectangular forming method instead of roundness system. this system made the running much more stable, the function much more reliable, the exterior appearance.

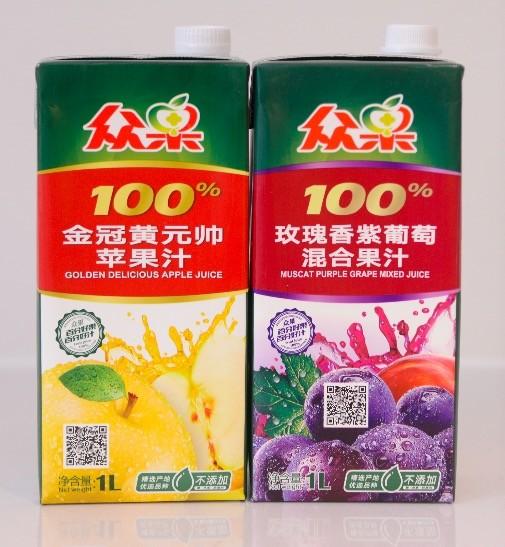

This machine can fill 250-1000ml brick paper aluminum composite box. It is for water, milk, juice and other beverage drinks. This machine adopts paper aluminum composite material, automatic batch-type working. Flow as below: workman put box - automatic folding forming - automatic filling - automatic sealing - automatic bevel hot sealing - automatic falling box.

1000ml Aseptic Slim Carton Filling Machine 6000PPH with Cap Applicator for Juice

Parameter:

Name:

Aseptic filling machine

Model:

PBA-16000 (1000B)

Capacity:

6000 packs/hour

Filling volume:

1000B: 1000ml ±1.5%

Outline dimension:

5195mm (L)*3206mm(W)*3722mm(H)

Entrance dimension:

2200mm*3500mm

Weight:

5000kg

Power supply:

380V±10% (3φ) 50Hz

Electricity consumption:

Total power: 35kw

Pre-heating: 20kw, sterilizing: 24kw, producing: 26kw, cleaning: 2.2kw

Air consumption:

450±100L/min (0.6~0.7Mpa)

Softened water consumption:

15L/min (0.3~0.45Mpa, below 20℃)

Steam consumption:

2.5kg/h (130±5℃, 0.17±0.03Mpa)

H2O2 consumption:

0.6~1.0L/H (Density: 30~50%), food grade

Lubrication oil consumption:

0.015L/H

Operating system:

Human-company interface

Discharging conveyor belt:

Teeth chain

Temperature of filling material:

15-25℃

Connection format and caliber:

Side of material input: 2s SMS standard thread

Side of material output: 2s SMS standard thread

Filling pressure:

50-150±10KPa (mechanical pontoon), 50~350±100Kpa (flow rate adjusting valve)

Shape of container:

Brick

Type of packaging

Roll paper

Pressure of filling room:

＞1.3mmAg


Key Points:

  • Automatic Form Feed –sterilize –filling –shaping – sealing

  • User friendly interface

  • Noiseless operation


Applications:

Suitable for filling liquid herb tea, dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.


Main Components:

Name Supplier Country
PLC MITSUBISHI Japan
Touched screen HITECH Taiwan
Electrical switch SCHNEIDER France

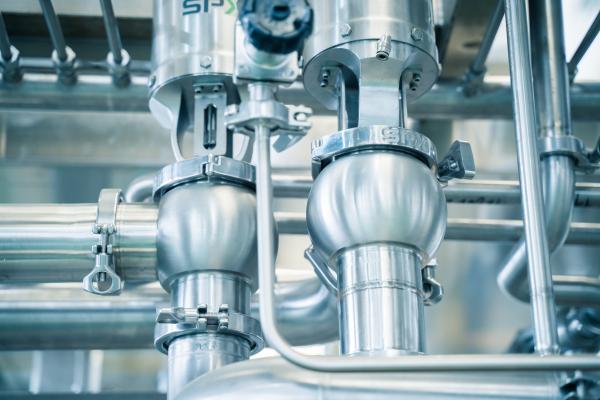

Controlling valve GEMU, BURKERT Germany
Sensor SICK Germany
Main motor ABB Sweden
Motorized pulley INTERROLL Denmark

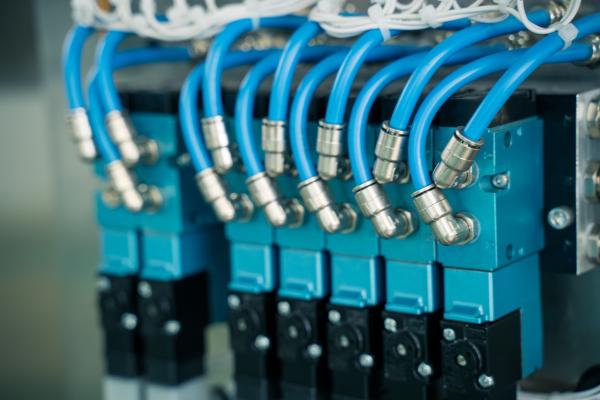

Pneumatic controlling MAC, CAMOZZI USA/Italy
Temperature controller OMRON Japan
