Specifications
Brand Name :
PLS
Model Number :
PBA-16000
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS/MONTH
Delivery Time :
60-90 DAYS
Packaging Details :
SEA WORTHY PACKAGE
Name :
Aseptic Filling Machine
Condition :
New
Capacity :
16000PPH
Filling Format :
250ml Base
Warranty :
1 Year
Filling Temperature :
0-40℃
Dimension :
5560mm*3850mm*5000mm
Weight :
8500kg
After-Sales Service :
Engineers available to service machinery overseas
Application :
Milk, Juice, Liquid Foods
Automatic Grade :
Automatic
Filling Head :
1
Description

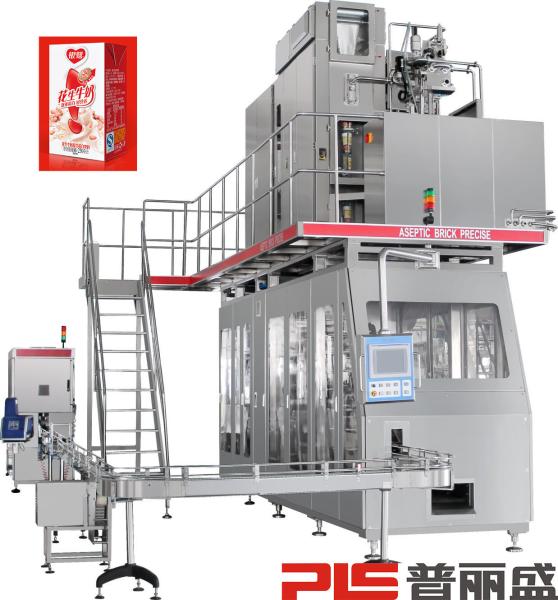

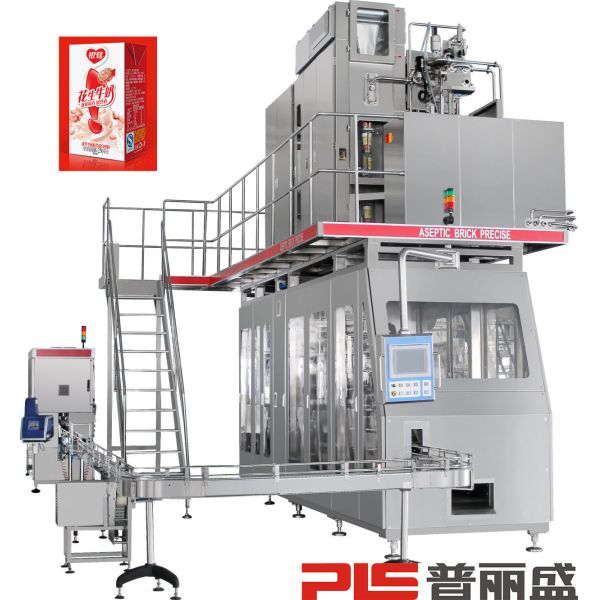

High Speed Brick Aseptic Filling Machine

Description:

Fully automatic cup filling and sealing machine adopts a new design and technology, small size, high degree of automation, stable function.
Working process: automatic filling, automatic sealing cup, automatic roll film, automatic shift, automatic cup, and infrared monitoring of each process to achieve a reliable full automatic operation.


Practical application of neutrality that saves a labor cost, not only quickly improve the product output and speed, but also the quality of stability, filling quantity standard, greatly reduce the cost of products.

16000 PPH 250ml Base Aseptic Carton Filling Machine With Straw Applicator for Milk

Parameter:

Name: Aseptic filling machine
Model: PBA-16000 (250B)
Capacity: 16000 packs/hour
Filling volume: 250B: 250ml ±10%
Outline dimension: 5560mm (L)*3580mm(W)*5000mm(H)
Installation space: 8500mm*4500mm*5700mm
Weight: 8500kg
Power supply: 380V±10% (3φ) 50Hz
Air consumption: 450±100L/min (0.6~0.7Mpa)
Softened water consumption: 15L/min (0.3~0.45Mpa, below 20℃)
Steam consumption: 2.5kg/h (130±5℃, 0.17±0.03Mpa)
H2O2 consumption: 0.6~1.0L/H (Density: 30~50%), food grade
Lubrication oil consumption: 0.015L/H
Operating system: Human-company interface
Temperature of filling material: 15-25℃
Filling pressure: 50-150±10KPa (mechanical pontoon), 50~350±100Kpa (flow rate adjusting valve)
Shape of container: Brick Base
Type of packaging Roll paper


Key Points:

  • Automatic Form Feed –sterilize –filling –shaping – sealing
  • User friendly interface
  • Noiseless operation


Applications:

Suitable for filling liquid herb tea, dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.


Main Components:

Name Supplier Country
PLC MITSUBISHI Japan
Touched screen HITECH Taiwan
Electrical switch SCHNEIDER France
Controlling valve GEMU, BURKERT Germany
Sensor SICK Germany
Main motor ABB Sweden
Motorized pulley INTERROLL Denmark
Pneumatic controlling MAC, CAMOZZI USA/Italy
Temperature controller OMRON Japan
