6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk
Specifications
Brand Name :
PLS
Model Number :
WGZ01-200
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
20 SETS/MONTH
Delivery Time :
60-89DAYS
Packaging Details :
SEA WORTHY PACKAGE
Name :
Aseptic Cartion Filling Machine
Condition :
New
Capacity :
6000PPH
Format :
200ml Prisma
Filling Head :
1
Packing form :
Paper and Aluminum Laminated Brick Shape
Control :
PLC
Power :
35kw
Weight :
5000kg
Dimension :
5195mm*3206mm*3722mm
Description

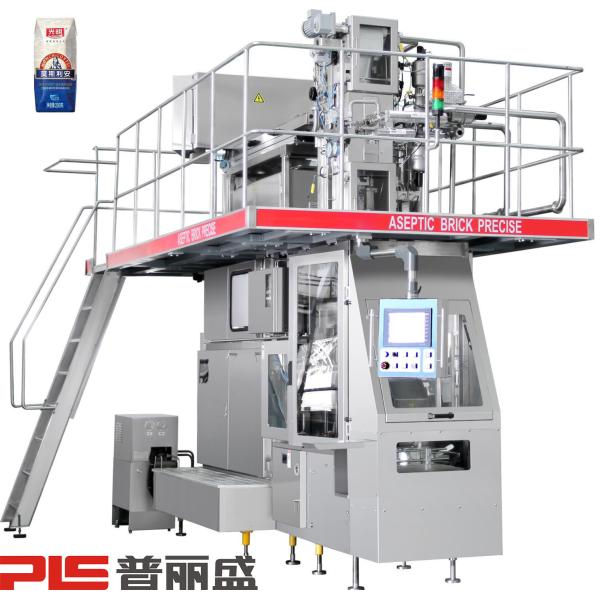

Prisma Aseptic Carton Filling Machine

Description:

The machine is applicable for aseptic packing of liquid milk and non-soda drink, fruit juice, coffee, plant protein drink, tea beverage, fruit wine etc. gravity flow type liquid food that have been carried out after UHT sterilization.

The whole machine is made of stainless steel. All the core parts are made of world first class brand products. It can automatically complete the paper feeding, sterilizing, filling and forming. The packing form is paper and aluminum laminated brick shape.

6000 PPH 200ml Prisma Aseptic Carton Filling Machine for Milk



Parameter:

Name:Aseptic carton filling machine
Model:WGZ01-200 (200SQ)
Capacity:6000 packs/hour
Filling volume:200SQ: 200ml ±1.5%
Outline dimension:5195mm (L)*3206mm(W)*3722mm(H)
Entrance dimension:2200mm*3500mm
Weight:5000kg
Power supply:380V±10% (3φ) 50Hz
Electricity consumption:

Total power: 35kw

Pre-heating: 20kw, sterilizing: 24kw, producing: 26kw, cleaning: 2.2kw

Air consumption:

1200±100L/min (0.6~0.7Mpa)

Softened water consumption:15L/min (0.3~0.45Mpa, below 20℃)
Steam consumption:2.5kg/h (130±5℃, 0.17±0.03Mpa)
H2O2 consumption:0.6~1.0L/H (Density: 30~50%), food grade
Lubrication oil consumption:0.015L/H
Operating system:Human-company interface
Discharging conveyor belt:Teeth chain
Temperature of filling material:15-25℃
Connection format and caliber:

Side of material input: 2s SMS standard thread

Side of material output: 2s SMS standard thread

Filling pressure:50-150±10KPa (mechanical pontoon), 50~350±100Kpa (flow rate adjusting valve)
Shape of container:Prisma
Type of packagingRoll paper
Pressure of filling room:＞1.3mmAg


Key Points:

  • Automatic Form Feed –sterilize –filling –shaping – sealing
  • User friendly interface
  • Noiseless operation


Applications:

Suitable for filling liquid herb tea, dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.

Main Components:

NameSupplierCountry
PLCMITSUBISHIJapan
Touched screenHITECHTaiwan
Electrical switchSCHNEIDERFrance
Controlling valveGEMU, BURKERTGermany
SensorSICKGermany
Main motorABBSweden
Motorized pulleyINTERROLLDenmark
Pneumatic controllingMAC, CAMOZZIUSA/Italy
Temperature controllerOMRONJapan
