Product Description:

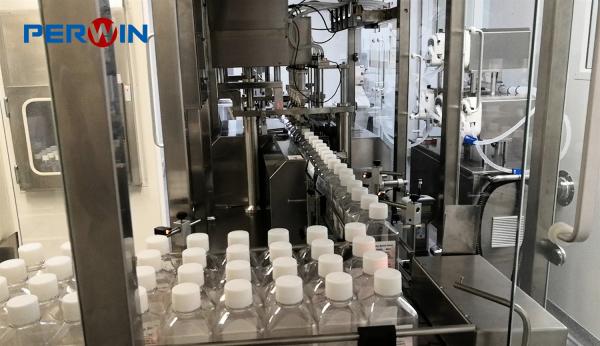

Animal Serum Filling Equipment is designed to fill animal sera into containers accurately and efficiently. It is a highly automated, accurate, and reliable machine capable of filling square bottles. The machine is equipped with a powerful servo motor control to accurately lift and position the capping head, and a 0-0.3Mpa filling pressure to ensure accurate and consistent filling. The entire filling process is controlled through a series of interconnected stations, beginning with the bottle loading on the powered platform (unpacking station), and ending with a single side labeling machine and bottle collection platform.

The Fetal bovine serum filling machine features an air consumption of 0.3m³/min and a weight of 1000kg, and can perform the following steps: screw positioning bottle, de-capping, weighing I, peristaltic pump filling, weighing II and capping, automatic rejection station, finished products to packing area, automatic sleeve labeling, heat shrinking machine, single side labeling machine and bottle collection platform. This machine is suitable for filling fetal bovine serum and other animal sera with excellent accuracy and repeatability in a safe and hygienic environment.

The Animal sera filling machine is designed to provide an accurate, efficient, and economical filling solution for the animal sera industry. It is capable of filling a variety of containers quickly and accurately, while ensuring the highest quality and safety standards. The machine is equipped with a powerful servo motor control and a 0-0.3Mpa filling pressure, providing precise and consistent filling and capping. It is the perfect choice for animal serum filling applications.

Features:

• Product Name: Animal Sera Filling Machine
• Filling Speed: 5~30bottles/min
• Filling Pressure: 0-0.3Mpa
• Filling Accuracy: ±0.5~1%
• Filling method: 5 Sets Of OEM Peristaltic Pumps, Watson-Marlow 505L Pump Heads, Driven By Servo Motors. Set And Adjust The Filling Volume On The Touch Screen
• Labeling machine: Mechanical Synchronization Of Top Pressure Positioning Mechanism, Horizontal Positioning Mechanism And Conveyor Belt, Three-in-one Power, Accurate And Stable Positioning
• Animal Blood Filler
• Animal Sera Aseptic Filling Device
• Animal Serum Filler

Technical Parameters:

Applications:

The PERWIN PW-ZWGX550 Animal Sera Filling Machine is the perfect choice for a wide range of laboratory and medical needs. This machine is certified by CE, ISO, GMP, UL, TUV, and SGS, and is designed to meet the highest standards of safety and quality. The minimum order quantity is only 1, and the price is negotiable. It comes with export standard wooden cases for packaging. The delivery time is estimated to be 60 working days. Payment terms are TT. The supply ability is 10pcs/month.

This machine features servo motor control capping head lift and 5 sets of OEM peristaltic pumps, Watson-Marlow 505L pump heads, driven by servo motors. It is also equipped with a bottle separating method of 1 set of servo motor drive screw for positioning. The filling program control is each group of pumps is individually controlled. The rejection unit is an automatic reject workstation, conveyor belt controlled by servo motor, corresponding to a group of 5 bottles. Each bottle corresponds to a cylinder and unqualified bottles can be pushed into the corresponding channel of the collection platform with the corresponding cylinder. At the top of each channel, a full bottle sensor is installed.

Customization:

We provide Customized Animal Sera Filling Machine with the below attributes:

• Brand Name: PERWIN
• Model Number: PW-ZWGX550
• Place of Origin: Qidong, Jiangsu
• Certification: CE, ISO, GMP, UL, TUV, SGS
• Minimum Order Quantity: 1
• Price: Negotiable
• Packaging Details: Export Standard Wooden Cases
• Delivery Time: 60 working days
• Payment Terms: TT
• Supply Ability: 10pcs/month
• PLC: Siemens 1500
• Pneumatic components: SMC Or Festo
• Air Pressure: 0.6-0.8Mpa
• Product Name: Animal Sera Filling Machine
• Filling Temperature: 0-100℃

Our customized Animal Sera Filling Machine is perfect for filling Animal Plasma, Animal Serum, or Fetal Bovine Serum quickly and accurately.

Support and Services:

We provide technical support and service for the Animal Sera Filling Machine. Our support team is available 24/7 to answer any questions you may have about the machine. We can provide help with installation, troubleshooting, maintenance, and repair.

We offer a comprehensive warranty for the Animal Sera Filling Machine. If you experience any problems with the machine within the warranty period, we will repair or replace it free of charge. We also offer extended warranties for additional peace of mind.

Our team of experts is available to provide custom solutions for any unique needs you may have. We can develop custom software and hardware solutions to meet your specific requirements.

We are committed to providing excellent customer service and technical support. Our team is available 24/7 to answer your questions and provide assistance with any issues you may have.

FAQ:

Q: What is the brand name of the Animal Sera Filling Machine?

A: The brand name of the Animal Sera Filling Machine is PERWIN.

Q: What is the model number of the Animal Sera Filling Machine?

A: The model number of the Animal Sera Filling Machine is PW-ZWGX550.

Q: Where is the Animal Sera Filling Machine made?

A: The Animal Sera Filling Machine is made in Qidong, Jiangsu.

Q: What certifications does the Animal Sera Filling Machine have?

A: The Animal Sera Filling Machine has CE, ISO, GMP, UL, TUV, and SGS certifications.

Q: What is the minimum order quantity for the Animal Sera Filling Machine?

A: The minimum order quantity for the Animal Sera Filling Machine is 1.
