2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching
2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching
2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching
2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching
2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching
2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching
Specifications
Brand Name :
ASIA MTAL
Model Number :
AM-ESSS-0006
Certification :
ISO9001
Place of Origin :
Guangdong China
MOQ :
1 Ton/Sheet
Price :
$1/Tons 1-100 Tons
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000000 Tons Per Month
Delivery Time :
15-21 days
Packaging Details :
Standard Sea-worthy Packing
Product Name :
304 316 PVD Mirror Color Stainless Steel Etching Plate
Material :
Stainless Steel
Grade :
304 316
Thickness :
0.3mm-3mm
Width :
1219mm
Length :
2438mm/3048mm
Bending or Laser Cutting :
available
Thickness tolerance :
within +/- 0.05mm
Color :
Customized
MTC :
can be provided
Sample :
can be offered free
Edge :
Mill Edge Slit Edge
PVC :
double 7C
Payment Term :
30%T/T Advance + 70% Balance
Description

ASIA METAL Manufacturer 304 316 PVD Mirror Color Stainless Steel Etching Plate

Type
Etched Stainless Steel Sheet
Material
Stainless Steel
Color Coating
Gold, Rose, Black, Blue, Bronze. Any Color Available
PVC
7c PVC, Double PVC. Customized Laser PVC
Length
Customized
Thickness
0.3 - 3.0 mm
Thickness Tolerance
1%, 2%, 3%, Customized
Regular Size
1000*2000mm, 1219*2438mm, 1219*3048mm, 1500*3000mm
Application
Construction / Indutry / Building / Chemical / Door / Elevator / Wall Decoration
Mater Test Certificate
Can Be Provided
200 Series Steel
201, J1, J2, J3, J4
300 Series Steel
301, 304,304L, 316L, 321
400 Series Steel
409L, 410, 420, 420J1, 420J2, 430, 444, 441, 443

What is etching ?

Etched finish is created by a screen printing the protective acid resistant to a polished surface and acid etching the unprotected areas. The etching removes a thin layer of stainless steel and roughens the surface.

Chemical composition and mechanical properties of stainless steel

Grade Chemical Composition (%) Mechanieal Performece
C Si Mn P S Ni Cr Mo Hardness
201 ≤0.15 ≤1.00 5.5/7.5 ≤0.060 ≤0.030 3.5/5.5 16.0/18.0 - HB≤241,HRB≤100, HV≤240
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.0/11.0 18.00/20.00 - HB≤187,HRB≤90,HV≤200
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00/14.00 16.0/18.0 2.00/3.00 HB≤187, HRB≤90 HV≤200
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00/14.00 16.0/18.0 2.00/3.00 HB≤187, HRB≤90 HV≤200
410 ≤0.15 ≤1.00 ≤1.25 ≤0.060 ≤0.030 ≤0.060 11.5/13.5 - HB≤183, HRB≤88 HV≤200
430 ≤0.12 ≤1.00 ≤1.25 ≤0.040 ≤0.03 - 16.00/18.00 - HB≤183, HRB≤88 HV≤200

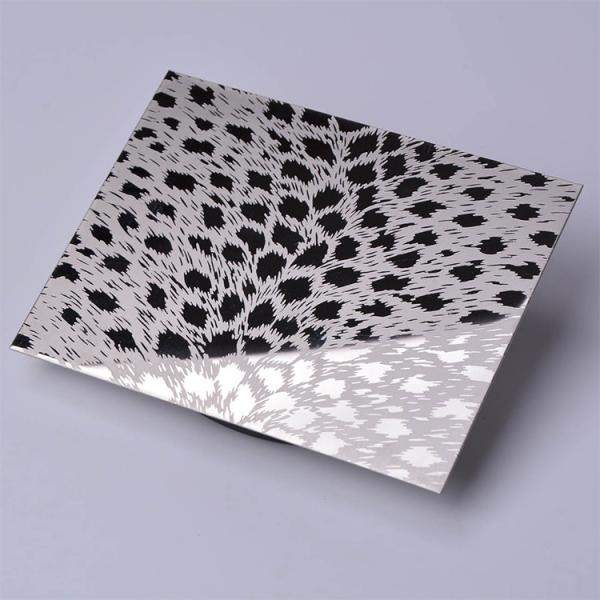

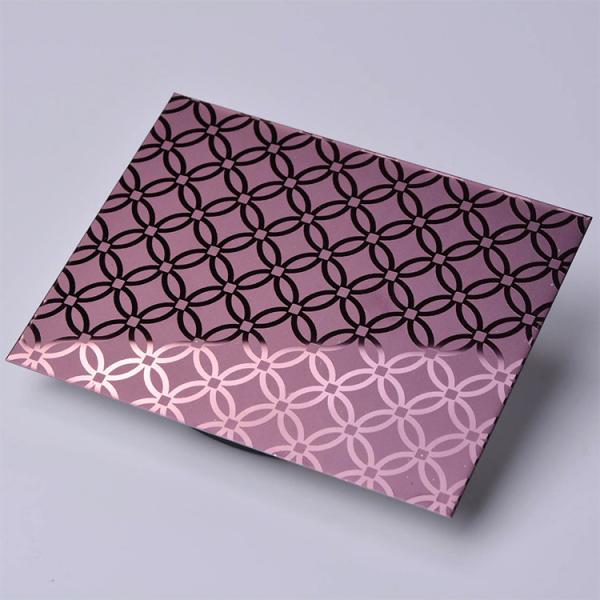

Product Display:

2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching

Etched stainless steel sheet application

Etched stainless steel sheets are widely used in Wall cladding, luxury indoor decoration, elevator door and cabin decoration, furniture, ads nameplates, corridor boards, hotel lobbies, architectural decoration, subway, and many other products and building projects.

Packaging & Delivery

2000mm Color Stainless Steel Plate Mirror 304L 304 316 PVD Etching

Protective Film

1. Double layer or single layer.

2. Black and white PE film/Laser (POLI) film.
Packing Details

1. Wrap with waterproof paper.

2. Cardboard encase all packs of the sheet.

3. The strap aligned with edge protection.
Packing Case Strong wooden case, metal pallet and customized pallet are acceptable.

Stainless steel sheet packaging and loading

1 Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.

The inner size of container is below:


20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high) about 24-26CBM
40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high) about 54CBM
40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high) about 68CBM
