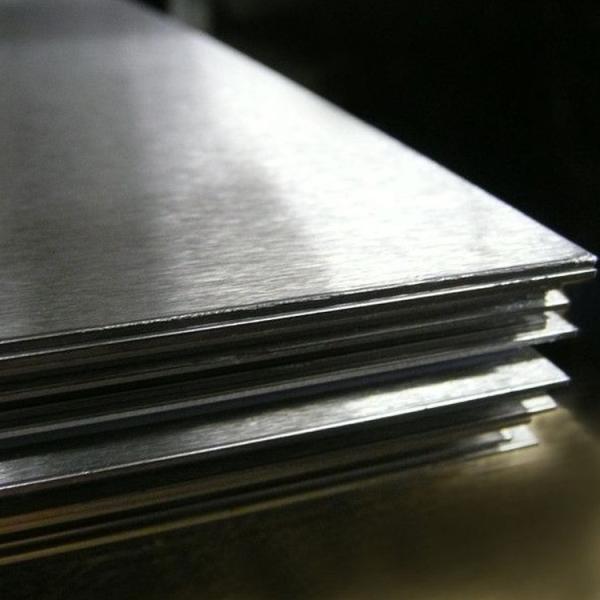

304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
Specifications
Brand Name :
ASIA METAL
Model Number :
304
Certification :
ISO9001
Place of Origin :
Guangdong China
MOQ :
1 Ton/Sheet
Price :
$1/Tons 1-100 Tons
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000 Tons Per Month
Delivery Time :
15-21 days
Packaging Details :
Standard Sea-worthy Packing
Product Name :
304 stainless steel sheet with 2B/BA/No.4 surface
Material :
Stainless Steel
Type :
Sheet
Thickness :
0.3-3mm
Surface :
2B/BA/No.4
Width :
1219mm
Edge :
Mill Edge Slit Edge
Price Term :
CIF CFR FOB EX-WORK
Payment Term :
30%T/T Advance + 70% Balance
Description

China Foshan factory 304 stainless steel sheet with 2B/BA/No.4 surface

What is Stainless Steel ?
Stainless steel contains chromium which provides the properties of corrosion resistance at high temperatures. Stainless steel can withstand corrosive or chemical environments due to its smooth surface. Stainless steel products are safe for long-term use with excellent resistance of corrosion fatigue.

What is 2B ?
2B Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface.

What is BA ?
BA surface finished is Bright heat treatment after cold rolling.

What is NO.4 ?
No.4, also called #4, satin or directional finish, is an unidirectional finish obtained with a 100-400 grit abrasive depending on requirements. High grit numbers create finer polishing lines and more reflective finishes.
Surface Finish Definition Application
2B Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface. With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on.
BA Bright heat treatment after cold rolling. Structual members .etc.kitchen utensil ,cutlery ,eleltric applicances ,medical instruments ,building decorations ,etc.
NO.3/NO.4 Polished with No.150-240 abrasives. Milky food processing equipment , medicalinstruments ,building decorations.
HL Finshed by polishing with abrasives of suitable grain size to obtain continuous streaks. Building decorations ,such as elevators ,escalators ,door etc.
6K/8K A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all gritlines are removed. Buliding entrances,bulkding column casting ,elevator's wall doors ,counters,sculptures etc.
Stainless Steel Sheet Information
Technique Surface Finish Grade Series Thickness(mm) Width(mm) Application
Main Dimension
20-850 1000 1219 1240 1250 1500 Petro-chemical industry,Tanks
Construction material
Hot Rolled No.1 / 2E 201/202/
304		 2.2-12.0 √ √ √ √ √
Cold Rolled 2B 201/304 0.25-3.0 √ √ √ √ √ √
410S/430 0.25-2.0 √ √ √ √
No.4 / Hairline
Mirror / Linen
SB		 201/304 0.22-3.0 √ √ √ √ √
410S/430 0.25-2.0 √ √ √ √ √
BA 201/304 0.2--1.8 √ √ √ √
410S/430 0.25-2.0 √ √ √ √
2BA √ √ √ √

Chemical composition and mechanical properties of stainless steel coils
Grade Chemical Composition (%) Mechanieal Performece
C Si Mn P S Ni Cr Mo Hardness
201 ≤0.15 ≤1.00 5.5/7.5 ≤0.060 ≤0.030 3.5/5.5 16.0/18.0 - HB≤241,HRB≤100, HV≤240
304 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 8.0/11.0 18.00/20.00 - HB≤187,HRB≤90,HV≤200
316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00/14.00 16.0/18.0 2.00/3.00 HB≤187, HRB≤90 HV≤200
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.00/14.00 16.0/18.0 2.00/3.00 HB≤187, HRB≤90 HV≤200
410 ≤0.15 ≤1.00 ≤1.25 ≤0.060 ≤0.030 ≤0.060 11.5/13.5 - HB≤183, HRB≤88 HV≤200
430 ≤0.12 ≤1.00 ≤1.25 ≤0.040 ≤0.03 - 16.00/18.00 - HB≤183, HRB≤88 HV≤200

Packing details

304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge

1 Sheets covered with wooden plate for protection in transportation.
2. All sheets will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.

304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge

304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge

304 316 SS Sheet Metal Slit Edge 2B Finish BA No.4 Surface Mill Edge
