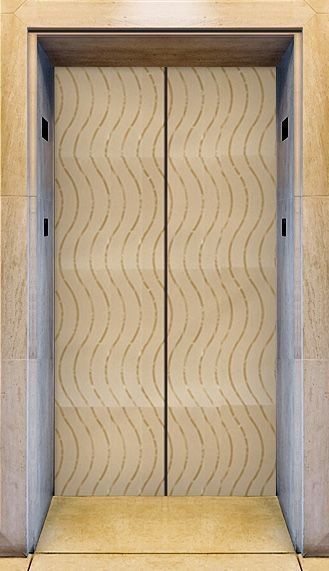

6K HL Custom Stainless Steel Panels Etched 201 304 For Lift Door

Specifications

Brand Name :

ASIA MTAL

Model Number :

AM-SSES-0007

Certification :

ISO9001

Place of Origin :

Guangdong China

MOQ :

1 Ton/Sheet

Price :

$1/Tons 1-100 Tons

Payment Terms :

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability :

1000000 Tons Per Month

Delivery Time :

15-21 days

Packaging Details :

Standard Sea-worthy Packing

Product Name :

Art Etched Pattern ODM Design Stainless Steel Sheet For Lift Door

Material :

Stainless Steel

Grade :

201 304

Thickness :

0.3mm-3mm

Width :

1219mm

Length :

2438mm/3048mm

Bending or Laser Cutting :

available

Thickness tolerance :

within +/- 0.05mm

Color :

lots of color available

MTC :

can be provided

Sample :

can be offered free

Edge :

Mill Edge Slit Edge

Original Material :

TISCO, BAOSTEEL, LISCO

PVC :

double 7C

Description

201 304 Art Etched Pattern ODM Design Stainless Steel Sheet For Lift Door

Surface Finish	Definition	Application
2B	Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface.	With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on.
BA	Bright heat treatment after cold rolling.	Structual members .etc.kitchen utensil ,cutlery ,eleltric applicances ,medical instruments ,building decorations ,etc.
NO.3/NO.4	Polished with No.150-240 abrasives.	Milky food processing equipment , medicalinstruments ,building decorations.
HL	Finshed by polishing with abrasives of suitable grain size to obtain continuous streaks.	Building decorations ,such as elevators ,escalators ,door etc.
6K/8K	A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all gritlines are removed.	Buliding entrances,bulkding column casting ,elevator's wall doors ,counters,sculptures etc.

Thickness	0.3 mm - 3.0 mm
Size	10002000mm, 12192438mm, 1219*3048mm, customized Max.width 1500mm and length 4000mm
SS Grade	201 / 304 / 316 / 430 etc.
Surface Treatment	Mirror / Satin / Anti-Fingerprint / PVD Color Coating / Embossing / Etching / Stamping
Origin	POSCO / JISCO / TISCO / LISCO / BAOSTEEL
Protective Film	Single layer or double layers of 7C PVC or Laser film with or without customized logo
Package	Wooden cases or plywood cases of standard type or more robust double layers type

What is elevator stainless steel sheet ?

Elevator stainless steel doors are the perfect way to carry a design theme across a property, from cab interior to cab exterior and beyond. Included within this group are door skins for elevator car doors and hoistway doors in a variety of materials, finishes and patterns.

Product Name	Stainless Steel Elevator Door Panel
Standard	JIS, AISI,ASTM,GB,DIN
Type	Sheet
Material	Stainless Steel
Thickness	0.2mm-3mm
Size	Main Size	Other Size
	1219mm*2438mm	Customized
Surface Finish	HL,NO.4,6K,8K,10K,Mirror
	Vibration,Sandblasted,Linen,Etched,Embossed
	Anti-fingerprint,Combination,Lamination,Etc
Color	Titanium gold,rose gold,champagne,gold
	coffee,brown,bronze,brass,wine red,purple
	sapphire,Ti-black,wooden,marble,texture,etc.
Pattern	Customized
Application	1.Indoor and outdoor public space backdrop
	2.Aisle
	3.Entrance background image of the wall
	4.Door signs
	5.Ceiling
	6.Living room background wall
	7.Elevator cabin,handrail
	8.Kitchen equipment
	9.Specially for bar,club,KTV,hotel,bath center,villa.
Advantage	Fireproof,Waterproof,Corrosion
	Protection,Colorful,Fashionable,Delicate,Luxurious,Fast Color,Stable
	In Decorative Effection.

Chemical composition and mechanical properties of stainless steel

Grade	Chemical Composition (%)								Mechanieal Performece
Grade	C	Si	Mn	P	S	Ni	Cr	Mo	Hardness
201	≤0.15	≤1.00	5.5/7.5	≤0.060	≤0.030	3.5/5.5	16.0/18.0	-	HB≤241,HRB≤100, HV≤240
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	8.0/11.0	18.00/20.00	-	HB≤187,HRB≤90,HV≤200
316	≤0.08	≤1.00	≤2.00	≤0.045	≤0.03	10.00/14.00	16.0/18.0	2.00/3.00	HB≤187, HRB≤90 HV≤200
316L	≤0.03	≤1.00	≤2.00	≤0.045	≤0.03	10.00/14.00	16.0/18.0	2.00/3.00	HB≤187, HRB≤90 HV≤200
410	≤0.15	≤1.00	≤1.25	≤0.060	≤0.030	≤0.060	11.5/13.5	-	HB≤183, HRB≤88 HV≤200
430	≤0.12	≤1.00	≤1.25	≤0.040	≤0.03	-	16.00/18.00	-	HB≤183, HRB≤88 HV≤200

Product Display:
