Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
Specifications
Supply Ability :
10000 Meter/Meters per Day
Packaging Details :
carton box
Place of Origin :
Tianjin, Deyang
Brand Name :
SENPU
Certification :
WRAS, ISO, CE, IAPMO R&T
Model Number :
DN16MM-DN1500MM
MOQ :
100PCS
Price :
2.75USD/METER
Delivery Time :
5-10 working days
Payment Terms :
TT, L/C
Item :
Flexible Corrugated Plastic Cable Wire Electrical Pipe
Model :
AD10.0MM-AD108.00MM
Brand :
SENPU
Product Thickness :
1.7-4.5mm
Certificate :
CE, WRAS, IAPMO R&T.
Operate Temperature :
e range
Port :
Shanghai/Tianjin/Qingdao Port
Lead Time :
5-10 working days
Description

Color Flexible Corrugated Plastic Cable Wire Electrical Pipe

Product Application

It can be widely used in municipal, telecommunication, electric power, gas, water, heat and other pipeline projects.

Urban and rural trenchless horizontal directional drilling power pipe drainage project, and open excavation power pipe drainage project.

Urban and rural trenchless horizontal directional drilling and drainage projects. Industrial waste water discharge project.

Product Specification

Item No.

flexible pipe (AD)

Inner × outer (mm)

Curved radius (mm)

Packaging unit (m)

PE-10.0

AD10.0

1/4"

6.5×10.0

16

100

PE-13.0

AD13.0

5/16"

10.0×13.0

20

100

PE-15.8

AD15.8

3/8"

12.0×15.8

30

100

PE-18.5

AD18.5

14.3×18.5

40

100

PE-21.2

AD21.2

1/2"

17.0×21.2

45

100

PE-25.0

AD25.0

20.0×25.0

45

50

PE-28.5

AD28.5

3/4"

23.0×28.5

50

50

PE-34.5

AD34.5

1

29.0×34.5

60

50

PE-42.5

AD42.5

1 1/4"

36.0×42.5

70

50

PE-54.5

AD54.5

2"

48.0×54.5

90

25

PE-74.0

AD74.0

2 1/2"

63.0×74.0

130

10

PE-88.0

AD88.0

3"

76.0×88.0

170

10

PE-108.

AD108.0

4"

94.0×108.0

225

10

Construction instructions

1.It is strictly forbidden to throw, strike, carve and expose the pipe during transportation and construction.

2. The axes of the two tubes should be aligned during hot melt butt, and the end face cutting should be vertically flat.

3.The processing temperature, time, pressure, according to the climatic conditions to adjust accordingly.

4.The minimum bending radius of pipe shall be greater than or equal to the outer diameter of pipe.

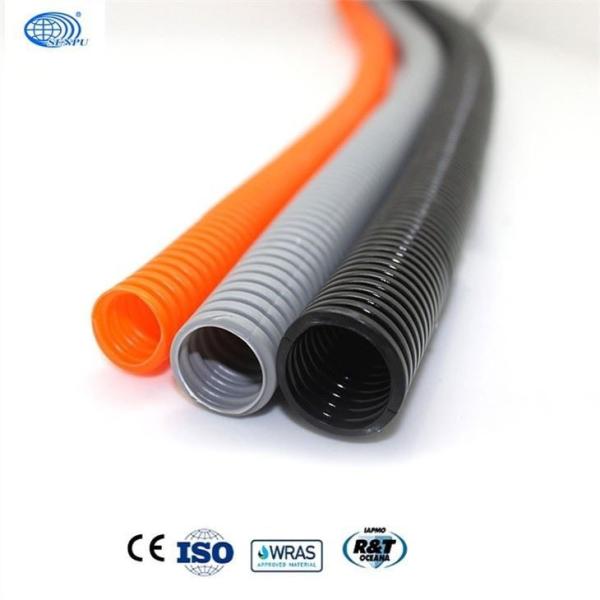

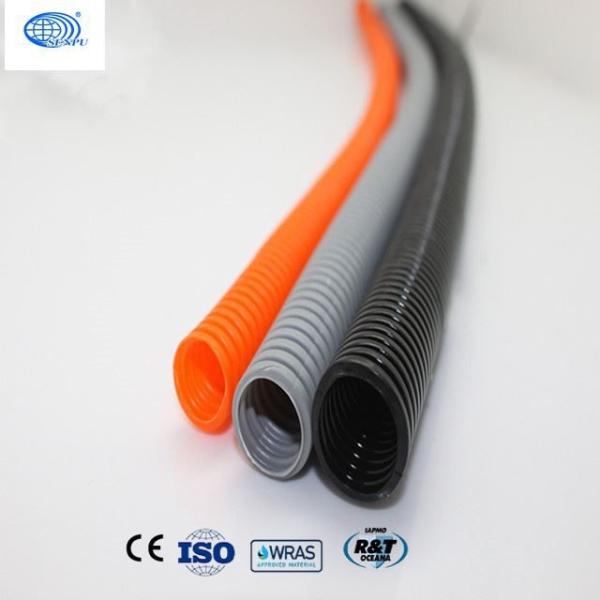

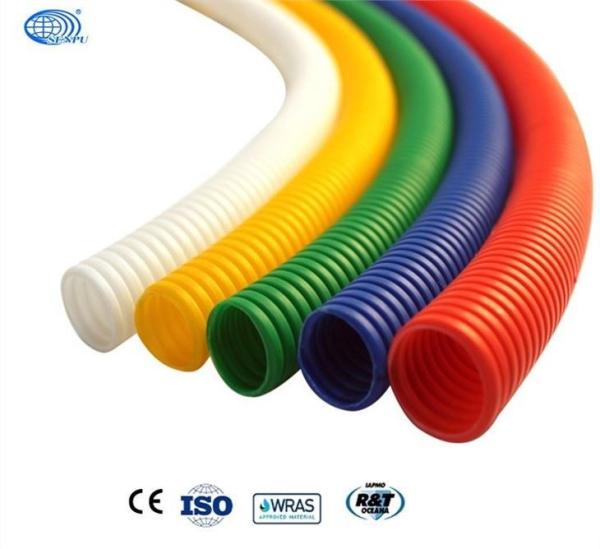

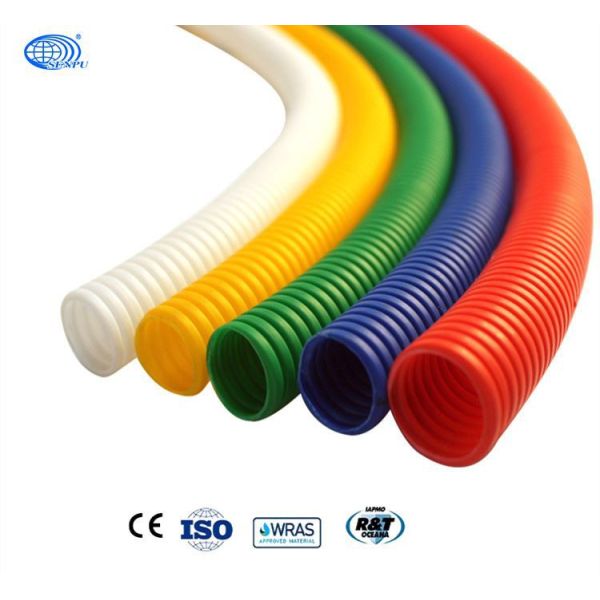

Product Picture

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Company Profile

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness

Construction HDPE Corrugated Pipe Flexible Cable Conduit Pipe 1.7mm To 4.5mm Thickness
