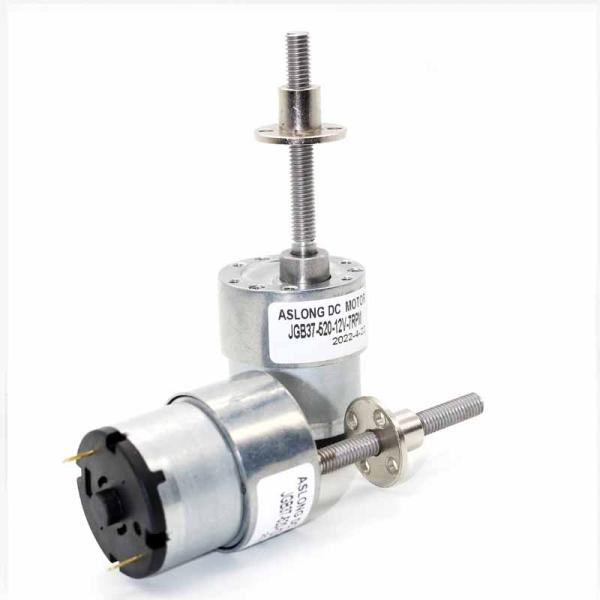

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
Specifications
Brand Name :
ASLONG
Model Number :
JGB37-520
Certification :
CE
Place of Origin :
CHINA
MOQ :
10
Price :
negotiation
Supply Ability :
1000pcs per days
Packaging Details :
bubble +carton
Type :
Gear Motor
Usage :
Home Appliance
Commutation :
Brush
Construction :
Permanent Magnet
Protect feature :
Totally Enclosed
Rated voltage :
12VDC-24V DC
Description

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC MotorDia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor

* Specifications

1.Standard Operating Conditions

1-1 Rated Voltage:12v,24V.

1-2 Direction of Rotation:CW when viewed from output shaft side

1-3 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.

1-4 Storage Temperature:Temperature range of -20C~+60C

2. Measuring Conditions:

2-1 Motor Position:To be place t horizontally when measuring

2-2 Power Supply: Regulated DC power supply

-- No load speed:10-1280rpm.

-- Robotics, Small Appliance, Fanner, Electric Curtain;

-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device

-- Electric motor,low noise,low current and no spark.

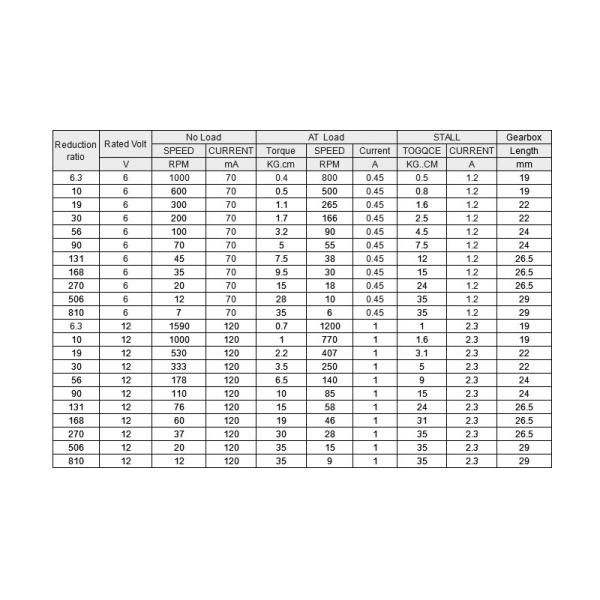

-- 37mm Gear box ratio: 6.25 10 18.8 30 56 90 131 168 270 506 810

-- 37mm Gear box ratio: 6.25 10 18.8 30 56 90 131 168 270 506 810

-- 555 dc motor 12V 8000rpm 6000rpm 24v 8000rpm 6000rpm

if you need no-loading speed , can't select it , pls contact us

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor

The following is a description of the quality materials and structures of this motor.

1. All metal gears ensure the life of the motor
2. High quality carbon brush, wear-resistant, prolongs the service life of the motor
3. The wire in the rotor is made of pure copper, which is resistant to high temperature, strong in electrical conductivity and wear-resistant, and promotes smooth rotation of the motor.

4. High-strength magnetic tile, strong power, high torque of the motor

Dia 37mm Micro Metal Gear Motor M6*50 Screw Shaft With 6V 12V 24V DC Motor
