Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm
Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm
Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm
Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm
Specifications
Brand Name :
Aslong
Model Number :
5840-3650SCDtype
Certification :
CE,ROHS,CCC
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Week
Delivery Time :
5-8working days
Usage :
Home Appliance,Electric Bicycle,Car
Commutation :
Brushless
Speed(rpm) :
8-470RPM
Type :
BLDC motor
Efficiency :
IE 2
Protect feature :
Totally Enclosed,
Product name :
Double Shaft Worm Gear Motor Brushless DC Motor D type 5840-3650 8-470rpm 2.5-70KG 12v 24v
Description

Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

Double Shaft Worm Gear Motor Brushless DC Motor D type 5840-3650 8-470rpm 2.5-70KG 12v 24v

Specification:

  • Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

  • Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

  • Error: ±5%

Wiring:

  • Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

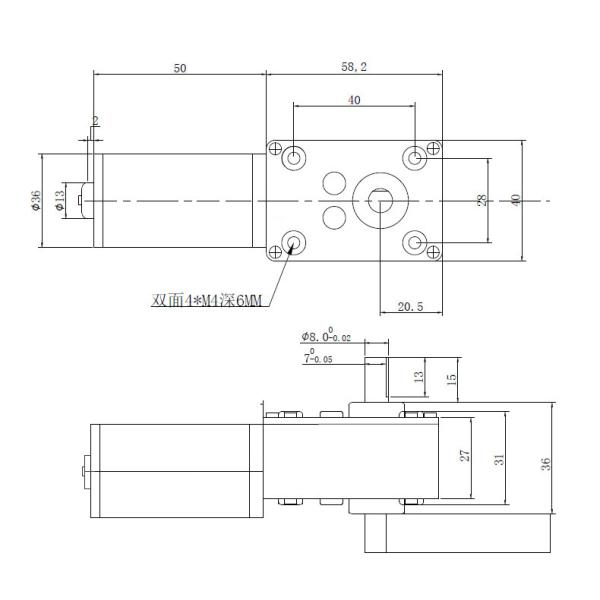

Datasheet:

Double Shaft Worm Brushless DC Gear Motor 12v 24v D Type 470rpm

5840-3650
Reduction ratio Rated Volt No Load AT Load STall
SPEED CURRENT Torque SPEED Current TOGQCE CURRENT
V RPM mA KG.cm RPM A KG..CM A
17 12 235 230 2.5 180 0.8 4.3 3
31 12 130 230 4.5 100 0.8 8 3
50 12 80 230 7.3 60 0.8 12.5 3
100 12 40 230 14.5 30 0.8 25 3
200 12 20 230 29 15 08 51 3
290 12 14 230 42 10 0.8 70 3
500 12 8 230 60 6 0.8 70 3
17 24 470 300 5 380 1.6 8.5 3
31 24 260 300 9.5 200 1.6 15.5 3
50 24 160 300 15 130 1.6 25 3
100 24 80 300 30 60 1.6 50 3
200 24 40 300 40 30 1.6 70 3
290 24 27 300 50 20 1.6 70 3
500 24 16 300 60 12 1.6 70 3
