5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine
Specifications
Brand Name :
ASLONG
Model Number :
A5840-3650
Certification :
CE
Place of Origin :
China
MOQ :
2 Pieces
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Week
Delivery Time :
5-8working days
Packaging Details :
on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Usage :
Home Appliance,Fan,Electric Bicycle
Commutation :
Brush
Type :
Worm Gear Motor
Protect feature :
Totally Enclosed
Weight :
1.0kg
Description

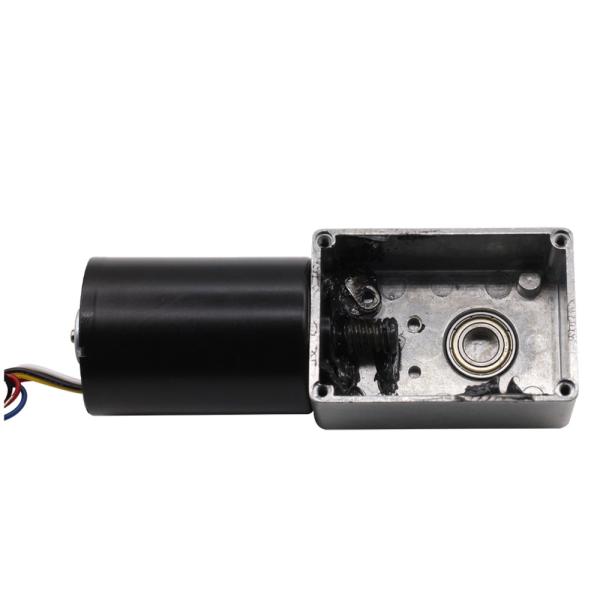

5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine

5840-3650 BLDC Worm Geared Motor 12V DC High Power High Torque Silent For Curtain Machine

Specification:

  • Voltage: DC12V

No-load Speed: 8rpm,14rpm,20rpm,40rpm,80rpm,130rpm,235rpm

  • Voltage: DC24V

No-load Speed: 16rpm,27rpm,40rpm,80rpm,160rpm,260rpm,470rpm

  • Error: ±5%

Wiring:

  • 5840-3650 40rpm BLDC Brushless DC Gear Motor High Torque Silent For Curtain Machine

Datasheet:

Reduction ratio

Rated Volt

No Load

On Load

Stall

SPEED

CURRENT

Torque

SPEED

Current

Torque

CURRENT

1:00

V

RPM

mA

KG.cm

RPM

A

Kg.cm

A

17

12

235

230

2.5

180

0.8

4.3

3

31

12

130

230

4.5

100

0.8

8

3

50

12

80

230

7.3

60

0.8

12.5

3

100

12

40

230

14.5

30

0.8

25

3

200

12

20

230

29

15

08

51

3

290

12

14

230

42

10

0.8

70

3

500

12

8

230

60

6

0.8

70

3

17

24

470

300

5

380

1.6

8.5

3

31

24

260

300

9.5

200

1.6

15.5

3

50

24

160

300

15

130

1.6

25

3

100

24

80

300

30

60

1.6

50

3

200

24

40

300

40

30

1.6

70

3

290

24

27

300

50

20

1.6

70

3

500

24

16

300

60

12

1.6

70

3

FAQ

Q1: Are you a Manufacturer or a Trading Company?

A:We are a professional manufacturer with over 15 years of experience, and have a complete supply chain from parts processing to finished products.
Q2: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

Q3: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee,please feel easy, it would be refund when you place formal order.
Q4: How long is the producing and shipping?
A: 1. Delivery timedepends on the quantity you order. usually it takes 7-15 working days.
2. Regular type products can be shipped within 3 workingdays, and other customized samples can be shipped within 7-10 working days.

Q5: When will you reply after got my inquiries?

A: Ourcustomer service is online 24 hours, looking forward to your inquiry.
