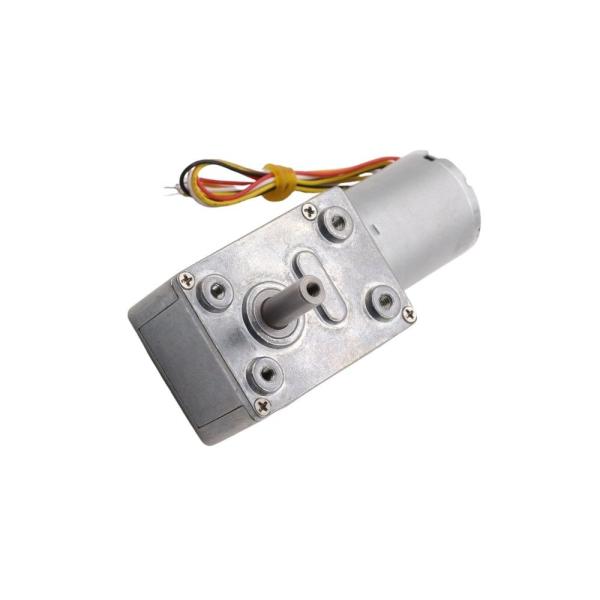

100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder
Specifications
Brand Name :
ASLONG
Model Number :
JGY-2430
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/Week
Delivery Time :
5-8working days
Usage :
Home Appliance,Electric Bicycle
Commutation :
Brushless dc gear motor
Type :
BRUSHLESS DC geared MOTOR
Protect feature :
Totally Enclosed
Construction :
Permanent Magnet
Description

100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder​

12V 24V Brusheless Worm Gear DC Motor Adjustable BLDC Gearmotor With Encoder​

Note:
* Brushless Gearmotors are best suited for applications that require "continuous (constant) operation.
* Gearmotor performance is highly influenced by the motor's ability to dissipate heat and avoid thermal overload, which can damage internal components and even demagnetize the magnets. Proper sizing and selection are the first step to ensuring that the motor is not at risk of thermal overload within the parameters of the application
Specification:
Voltage: DC12V, DC24V
No-Load Speed: 6rpm, 10rpm, 18rpm, 23rpm, 30rpm, 40rpm, 100rpm, 150rpm
Error: ±10%
Output Shaft Diameter: 6mm D-type
Output Shaft Length: 14mm
Gearbox Size:46*32*25mm
Gearbox Size Detal, please see the table

Wirings:

Red Wire - positive power supply of motor(+)

Black Wire - negative power supply of motor(-)

Yellow Wire - FG output
Orange Wire - control CW or CCW of motor(CCW: Orange Wire do not connect. CW: Orange Wire connect negative power supply of motor(-))
White Wire - control speed of motor (by PWM signal control speed)

Note: For it is a blushless motor, the wires can't be connected wrong, or it will be burnt.

CW: Red wire --> positive power supply of motor(+); Black wire and White wire ---> negative power supply of motor(-)

CCW: Red wire --> positive power supply of motor(+); Black wire, White wire and Orange Wire ---> negative power supply of motor(-)

  • Size and Parameter Table:
  • Rote Volt DC12V JGY370-2430
    Reduction ratio 40 65 150 200 260 340 600 1000
    No load Current (MA) <130 W130 <130 W130 <130 <130 W130 <130
    No load RPM 150 90 40 30 23 18 10 6
    Load torque (Kg,cm) 1.5 3 7.0 9.0 12.0 15.0 21.0 25.0
    Load RPM 100 70 30 22 17 13 7 4
    Load Currern (A) W0.8 W0.8 W0.8 W0.8 W0.8 <0.8 <0.8 W0.8
    Max Torque (Kg.cm) 2.5 4.2 10.0 13.0 17.0 22.0 Max 25KG
    Stall Current (A) 1.8 1.8 1.8 1.8 1.8 1.8 Fobidden Stall
    Rated Volt DC12V JGY370-2430
    Reduction ratio 40 65 150 200 260 340 600 1000
    No load Current (MA) <80 <80 <80 <80 <80 <80 <80 <80
    No load RPM 150 90 40 30 23 18 10 6
    Load ©rque (Kg.cm) 20 3.5 8.0 10.0 14.0 17.0 20.0 25.0
    Load RPM 100 70 30 22 17 13 7 4
    Load Current (A) <1.3 <0.5 <0.5 <0.5 <0.5 <0.5 <0.5 <0.5
    Max Torque (Kg.cm) 3.0 4.9 11.5 15.0 20.0 25.0 Max 25KG
    Stall Current (A) 1.3 1.3 1.3 1.3 1.3 1.3 Fobidden Stall
    100rpm 12V 24V Worm BLDC Brushless DC Gear Motor With Encoder

FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
