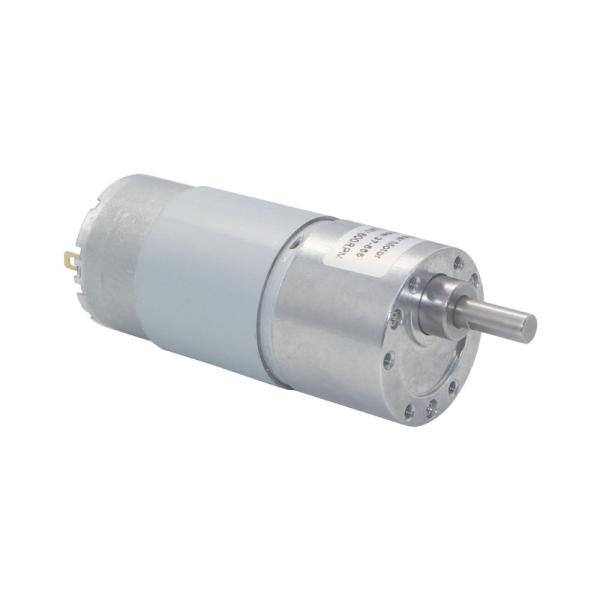

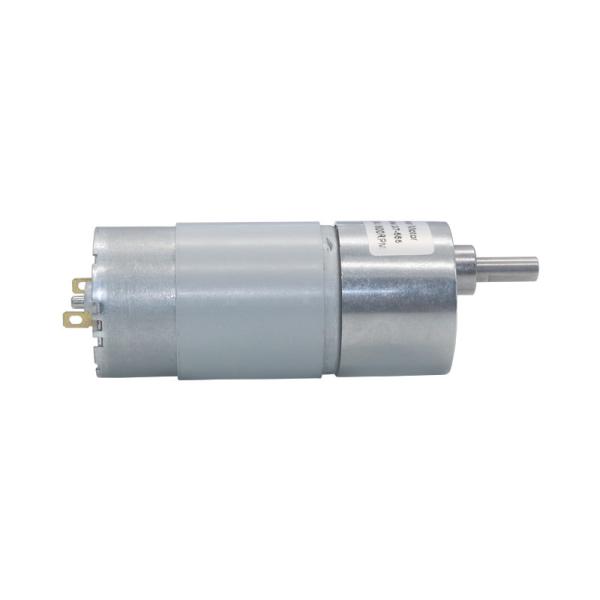

JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot
Specifications
Brand Name :
ASLONG
Model Number :
JGB37-555
Certification :
CE,RoHs
Place of Origin :
CHINA
MOQ :
1 Pieces
Price :
Negotiation
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
5000 Pieces Per day
Delivery Time :
5-8 working days
Packaging Details :
on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Model Number: :
JGB37-555
Type :
GEAR MOTOR
Torque :
Requests
Rated Voltage: :
12v/ 24v
Certification: :
ce, RoHS
Size 37MM :
37MM
Usage: :
BOAT, Car, Electric Bicycle, FAN, Home Appliance
Description

JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot

JGB37-555 37mm small high torque dc motor small dc gear motor for robot 12V 555 PM DC Reducton industrial gear motor

Voltage/rpm/shaft can be customized , welcome to consult.

Datasheet:

Voltage No load On Load Stall Speed reducer Weight
JGB37- 555 Using Rated Speed Current Speed Current Torque Power Torque Curren Reductor length unit
Range Voltage rpm ma rpm A kg. cm W kg. cm A Ratio mm g
24V 6-30V 24V 1280 300 960 2.4 1.75 35 5.6 3 6.25 19 302
6-30V 24V 800 300 600 2.4 2.8 35 9 3 10 19 302
6-30V 24V 425 300 318 2.4 5.3 35 17 3 18.8 22 309
6-30V 24V 266 260 200 2.3 8.4 35 27 3 30 22 309
6-30V 24V 143 260 107 2.3 15.7 35 50.2 3 56 24 314
6-30V 24V 88 260 66 2.3 25 35 Forbidden 3 90 24 314
6-30V 24V 61 260 46 2.3 37 35 Forbidden 3 131 26.5 320
6-30V 24V 48 200 36 2.2 47 35 Forbidden 3 168 26.5 320
6-30V 24V 30 200 23 2.2 60 35 Forbidden 3 270 26.5 320
6-30V 24V 16 200 12 2.2 60 35 Forbidden 3 506 29 324
6-30V 24V 10 200 8 2.2 60 35 Forbidden 3 810 29 324
12V 6-30V 12V 1280 300 960 2.4 1.75 35 5.6 3 6.25 19 302
6-30V 12V 800 300 600 2.4 2.8 35 9 3 10 19 302
6-30V 12V 425 300 318 2.4 5.3 35 17 3 18.8 22 309
6-30V 12V 266 260 200 2.3 8.4 35 27 3 30 22 309
6-30V 12V 143 260 107 2.3 15.7 35 50.2 3 56 24 314
6-30V 12V 88 260 66 2.3 25 35 Forbidden 3 90 24 314
6-30V 12V 61 260 46 2.3 37 35 Forbidden 3 131 26.5 320
6-30V 12V 48 200 36 2.2 47 35 Forbidden 3 168 26.5 320
6-30V 12V 30 200 23 2.2 60 35 Forbidden 3 270 26.5 320
6-30V 12V 16 200 12 2.2 60.0 35 Forbidden 3 506 29 324
6-30V 12V 10 200 8 2.2 60.0 35 Forbidden 3 810.0 29 324

Dimension:

JGB37 555 12V Electric DC Gear Motor High Torque 37MM For Robot

Above techinical data is from our factory engineer testing product, for customer reference , and then our factorycan offer OEM service , welcome to visit our factory !

Inventory informatio

More than 1000pcs of each type product is in factory store about this type of different no-load output speed

Model: JGB37-555

Voltage: 12V

No-load OutputSpeed: 1280Rpm800Rpm 425Rpm 266Rpm 143Rpm 88Rpm 61Rpm 48Rpm 30Rpm 16Rpm 10Rpm;

Voltage:24V

No-load OutputSpeed:1280Rpm800Rpm 425Rpm 266Rpm 143Rpm 88Rpm 61Rpm 48Rpm 30Rpm 16Rpm 10Rpm;
