Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM
Specifications
Brand Name :
ASLONG
Model Number :
JGB37-520GB
Certification :
CE,RoHs
Place of Origin :
China
MOQ :
1 Pieces
Price :
negeotiation
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
5000 Pieces Per day
Delivery Time :
5-8days
Packaging Details :
on-the-spot foaming package 13*10*8(cm) 20*15*10(cm) 42*32*16(cm) 42*32*32(cm)
Product name :
JGB37-520gb
Type :
Brushed Motor
Voltage(v) :
12V
Speed(rpm) :
12-1600RPM
Size :
37MM
Usage :
Home Appliance, Car, Electric Bicycle, Boat, Fan
Torque :
0.1-30
Efficiency :
IE 2
Description

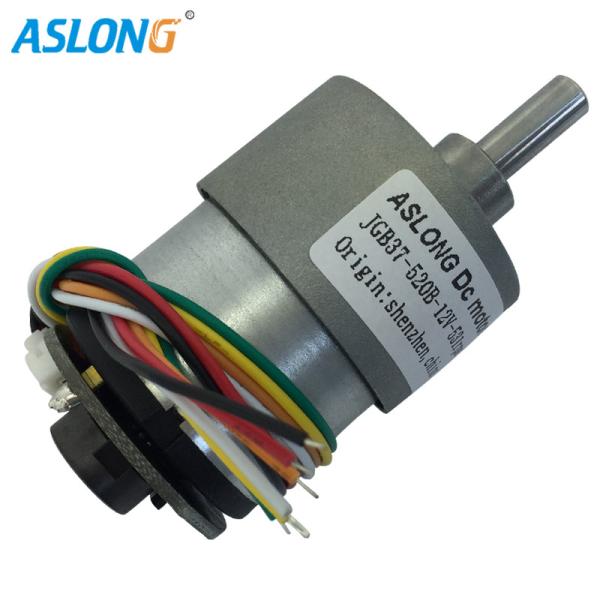

Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM

Aslong Jgb37-520gb Metal Gear Dc Motor DC Spur GearReduction Motor Hall Encoder Speed Measurement Large Torque Motor

Model: JGB37-520GB


Operating voltage range: 6-15VDC


12V no-load speed per minute:

1600rpm 1000rpm 531rpm 333rpm 178rpm 111rpm 76rpm 59rpm 37rpm 20rpm 12rpm


Note: Please note the no-load speed you need when taking the picture, so that we can ship it, thank you!

Datasheet:

JGB37-520GB
voltage No load

On load

stall Speed reducer
length Weight
Using Rated Voltage al speed Speed Current speed Currernt Torque Power torque Current ratio Redction (L)Size unit
Range r/min 1 mA r/min mA kgcm w kgcm A Raw m m g
6-15 12V 1600 120 1200 400 01 3 1 1 06:00 19 175
6-15V 12V 1000 120 800 400 000 3 2 1 10 19 177
6-15V 12V 531 120 424 350 0.7 3 2.8 1 188 22 180
6-15V 12V 333 120 266 350 001 3 4.5 1 30 22 180
6-15V 12V 178 120 412 350 2.1 3 8.4 1 56 24 188
6-15V 12V 111 120 88 350 003 3 13 1 90 24 188
6-15V 12V 76 120 60 350 005 3 20 1 131 26.5 190
6-15V 12V 59 120 47 300 6.3 3 25 1 168 26.5 195
6-15V 12V 37 120 29 300 010 3 40 1 270 26.5 194
6-15V 12V 20 120 16 300 019 3 Forbidden 1 506 29 200
6-15V 12V 12 120 9 300 030 3 Forbidden1 810 29 200

Dimension:

Aslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPMAslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPMAslong Jgb37 520gb Electric DC Gear Motor Hall Encoder 1600RPM

FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
