115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
Specifications
Brand Name :
ASLONG
Model Number :
5840-31ZYC
Certification :
Rosh,CE
Place of Origin :
China
MOQ :
5 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
10000pcs/week
Delivery Time :
3-7working days
Packaging Details :
on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Usage :
For Robot Smart Car
Commutation :
Brushed
Speed(rpm) :
12-470rpm
Type :
Worm Gear Motor with Encoder
Efficiency :
IE 1
Construction :
Permanent Magnet
Material :
Stainless Steel
Voltage :
12V/24V
Description

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm With Encoder​

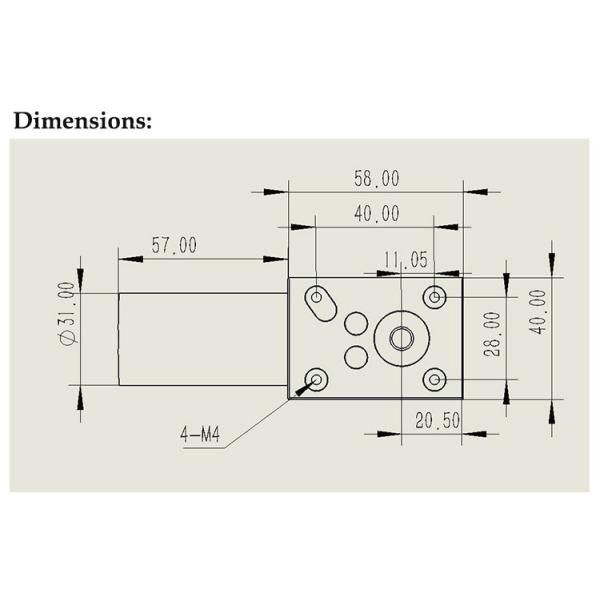

Worm Gear Motor With 115mm Length 8mm Diameter Screw Lead Shaft And Flange Low Speed Max 7N.M

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder

Worm gearbox Micro Dc Gear Motor Description:

Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:

115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder

JGY-370

JGY-395

 JGY-385

5840-31ZY
115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
5840-3650 5840-555 JGY-2430 5882-4260
Specification:
  • Voltage: DC12V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm

  • Voltage: DC24V

No-load Speed: 470rpm,260rpm,160rpm,80rpm,40rpm,27rpm,16rpm,12rpm,10rpm,7rpm

  • Error: ±5%
  • 115mm Brushed 12 Volt DC Worm Gear Motors 470rpm with Encoder
  • Datasheet:

1280 No load Rated Stall Weight
Rated voltaqe Speed Current Speed Current Torque Power Torque Current
V RPM A RPM A KG.CM W KG.CM A g
5840-31ZY-17X 12 470 0.3 405 1 0.95 4.03 53 65 355
5840-31ZY-31X 12 260 0.3 225.9 1.129 1.49 3.52 10.42 6.5 355
5840-31ZY-49X 12 160 0.3 139.9 1.101 2.33 3.41 13.61 6.5 355
5840-31ZY-100X 12 80 0.3 71.9 1.155 394 2.96 25.59 6.5 355
5840-31ZY-200X 12 40 0.3 378 1.031 1031 4.08 47.2 65 355
5840-31ZY-290X 12 27 0.3 229 1.117 1326 3.17 65.74 6.5 355
5840-31ZY-500X 12 16 0.3 14.4 1.106 20.62 2.6 Ban stall 355
5840-31ZY-670X 12 12 0.3 106 1.088 3057 309 355
2480 No load Rated Stall Weight
Rated voltaqe Speed Current Speed Current Torque Power Torque Current
V RPM A RPM A KG CM w KGCM A g
5840-31ZY-17X 24 470 0.2 415.6 0.695 113 4.91 5.9 4 355
5840-31ZY-31X 24 260 0.2 232 0.59 1.53 3.71 12.8 4 355
5840-31ZV-49X 24 160 02 144.1 0652 25 3.77 16.33 4 355
5840-31ZY-100X 24 80 02 74 0643 448 3.47 29 4 355
5840-31ZY-200X 24 40 0.2 34 0.643 9.66 3.44 53.47 4 355
5840-31ZY-290X 24 27 0.2 25 0.697 13.42 3.52 65.68 4 355
5840-31ZY-500X 24 16 02 15 0.634 2366 3.74 Ban stall 355
5840-31ZY-670X 24 12 0.2 11.1 0.612 2659 3.09 355


FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
