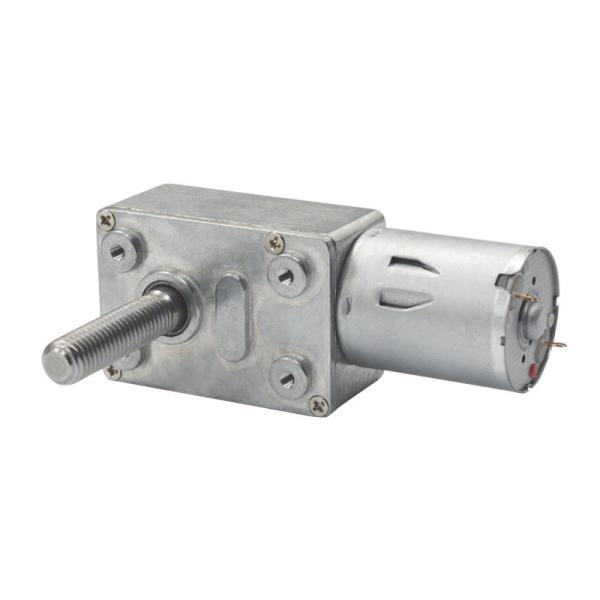

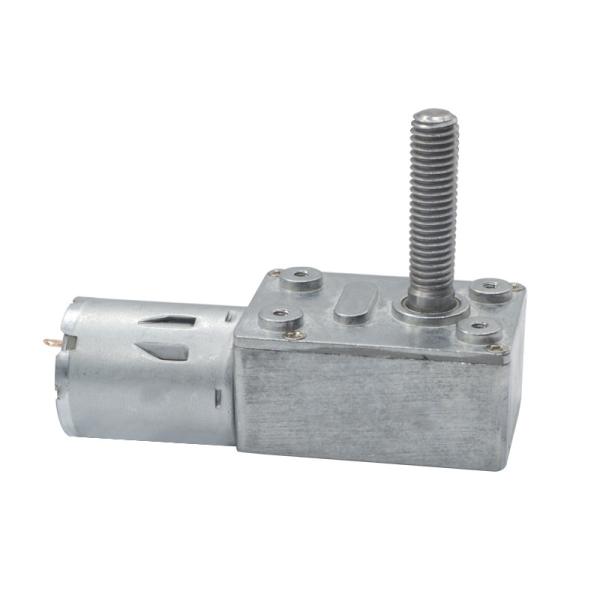

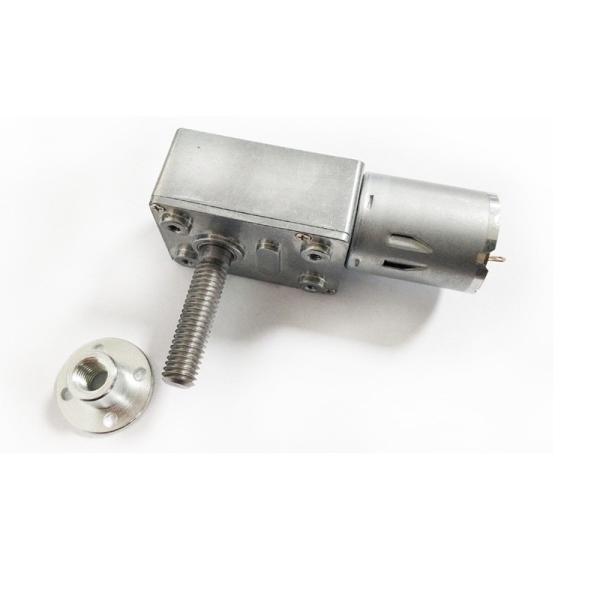

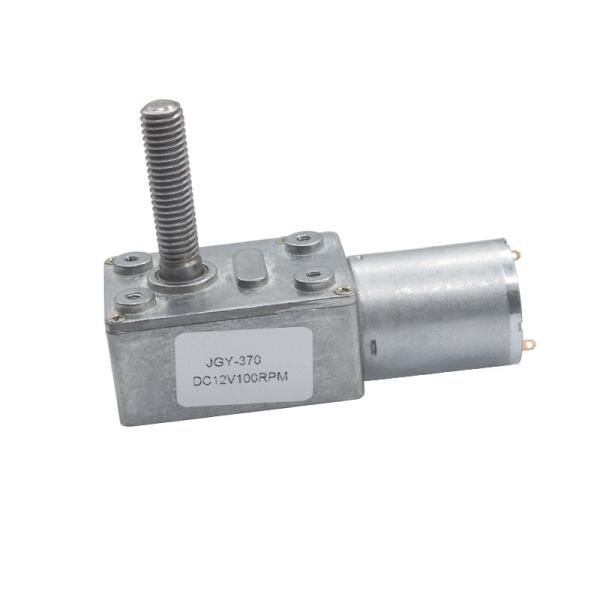

High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
Specifications
Brand Name :
ASLONG
Model Number :
JGY-370F
Certification :
Rosh,CE
Place of Origin :
China
MOQ :
10 Pieces
Price :
Negotiation
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
10000pcs/week
Delivery Time :
3-7working days
Packaging Details :
on-the-spot foaming package 13*10*8 20*15*10 42*32*16 42*32*32
Usage :
For Robot Smart Car
Commutation :
Brushed
Speed(rpm) :
12-470rpm
Type :
Worm Gear Motor with Screw Flange
Efficiency :
IE 1
Construction :
Permanent Magnet
Material :
Stainless Steel
Voltage :
12V/24V
Description

High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange

High Torque Worm Gear Motor 8mm*33mm Output Screw Shaft with Screw Flange DC 6v 12v 24v 2RPM to 150 RPM

High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw FlangeHigh Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange

Worm gearbox Micro Dc Gear Motor Description:

Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:

High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange

JGY-370

JGY-395

 JGY-385

5840-31ZY
High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange
5840-3650 5840-555 JGY-2430 5882-4260

Specifications:

  • Rated Volt: DC 6v 12V 24V
  • Speed(No load): 2/6/10/18/23/30/40/90/150 RPM
  • Max torque:24kg.cm
  • Main Material:Metal
  • 8mm Diameter screw shaft
  • Weight:160g

High Torque DC Worm Gear Motors 150 RPM 12v 24v With Screw Flange

Type Model:JGY-370 Parameter
Voltage No Load Load Torque Stall Reducer
Rated Speed Current Speed Current Torque Output Torque Current Ratio size
Volt.V rpm mA rpm mA kg.cm W kg.cm A 1:00 mm
660 6V 160 60 128 300 0.2 2 3 2 37.3 46
6V 100 60 80 300 0.5 2 6 2 60 46
6V 40 60 32 270 0.8 2 15 2 150 46
6V 24 60 19 270 2 2 20 2 250 46
6V 19 60 15 270 4.5 2 30 2 324 46
6V 10 60 8 260 6.7 2 60 2 600 46
6V 6 60 5 260 9 2 ban 2 972 46
6V 4 60 3 260 15.9 2 ban 2 1700 46
6V 2 60 2 260 30 2 ban 2 2900 46
1260 12V 160 45 128 270 0.74 1.7 4 1.7 37.3 46
12V 100 45 80 270 1 1.7 7 1.7 60 46
12V 40 45 32 230 2.2 1.7 11 1.7 150 46
12V 24 45 19 230 3.7 1.7 18 1.7 250 46
12V 19 45 15 230 4.8 1.7 24 1.7 324 46
12V 10 45 8 230 9 1.7 ban 1.7 600 46
12V 6 45 5 220 14 1.7 ban 1.7 972 46
12V 4 45 3 200 25 1.7 ban 1.7 1700 46
12V 2 45 2 200 43 1.7 ban 1.7 2900 46
2460 24v 160 26 128 180 0.4 1.5 2 1 37.3 46
24v 100 26 80 180 0.8 1.5 4 1 60 46
24v 40 26 32 180 1.8 1.5 9 1 150 46
24v 24 26 19 180 3 1.5 15 1 250 46
24v 19 26 15 180 3.8 1.5 19 1 324 46
24v 10 26 8 180 7 1.5 35 1 600 46
24v 6 26 5 180 11 1.5 ban 1 972 46
24v 4 26 3 180 20 1.5 ban 1 1700 46
24v 2 26 2 180 40 1.5 ban 1 2900 46


FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
