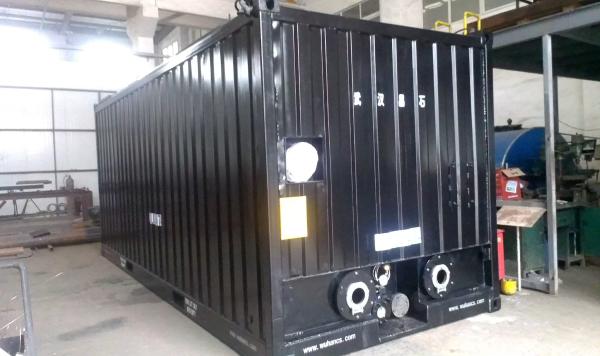

26000L Insulated Container For Asphalt Road Sea And Rail Transport
26000L Insulated Container For Asphalt Road Sea And Rail Transport
Specifications
Brand Name :
changshi
Model Number :
20ft
Certification :
iso,lr
Place of Origin :
china
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T
Delivery Time :
15 working days
Volume :
26000L-29000
Colour :
Black
Style :
Container
Insulation :
Insulated
Material :
Carbon Steel
Transport :
Sea, Raod and Railway
Corner Fittings :
8
Suitable for :
Asphalt, pitch, crude oil
Description

Quick Details

Type: Container

Length (feet): 20'

Certification: CSC, LR, BV

Capacity: 26m3-29m3

External Dimensions(l x W x H)(mm): 6058*2438*2591/mm

Place of Origin: Hubei, China

Loading Capacity: 26000L

Maximum Gross Weight: 34000KG

Tare: 5800KG

Manhole: Dia. 20inch Seal Plastic-Lined Steel Tank Cover

Frame Material: Q345b Square Steel Tube

Compartment: Single Compartment

Color: Customized

Specification
1. Recognized register CCS, LR,BV
2. Size 20/40 feet, tank/box type
3. Dimension 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm
4. Capacity 25/50 CBM
5. Tare weight 5800/8200 kg
6. Payload 25000/50000 kg, water load at 20 celsius
7. Gross weight 29000/58200 kg
Standard Configuration
1. Working pressure 0.09 Mpa
2. Working temperature -19~200 celsius
3. Temperature lapse rate Less than 12℃/24h, feeding temperature more than 120
4. Tank material Carbon stell, 5/6 mm
5. End enclosure 5/6mm, flanged flat head
6. Stiffener 6 mm, 4 pcs
7. Heating pipe φ57*3.5 mm, L = 77000/154000
8. Compound manhole DN500
9. Bitumen filling hole DN250
10. Anti-leaking breather valve DN60
11. Sheet gasket PTFE
13. Bitumen protective frame 800*750*150 mm, with bitumen flooding pipe
14. Thermometer 0 to 300 celsius
15. Volumeter Ball floating type
16. Bitumen discharge valve DN80
17. Quick coupling DN80
18. Reserve feeding flange hole DN50/100, 2 pcs
19. Flange hole of bitumen DN50/100
20. Bitumen detecting valve DN25
21. Flange hole of heating pipe DN50, 2 pcs
22. Insulated layer 100 mm, glass fiber wool
23. External close plate 1.5 mm, cold rolled plate
24. Guardrail of ladder W = 400 mm
25. Stackeble layer 9
26. Allowable Stacking Weight 192000

1. Idea for Sea, Road, Rail transportation

2. Nominal Capacity 29,000 Litres, with 20% more carrying capacity than conventional tank container

3. Suitable for storage and transportation of of Bitumen, Bitumen Emulsions, Heavy fuel Oils

4. Double skin design , High performance heating tubes and insulation fitted with robust outer skin
