Insulated Arc Cast Steel Gear Pump Asphalt Loading And Unloading Longlife Time
Insulated Arc Cast Steel Gear Pump Asphalt Loading And Unloading Longlife Time
Specifications
Brand Name :
WUHANCS
Model Number :
CAP
Certification :
ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiatable
Payment Terms :
T/T
Delivery Time :
7 working days
Material :
Cast Steel
Suitable for :
Base asphalt
Type :
Asphalt Plant Parts
Product Name :
Jacketed Asphalt Arc Gear Pump
Heat Conducting :
Hot oil, Electricity, Steam
Description

Jacketed Asphalt Loading/Unloading Arc Gear Pump

Parameters:

Model

Flow Rate

(L/min)

Working Pressure

(MPa)

Revolution Rate

(r/min)

Motor Power

(KW)

Suction Lift

(m)

Weight

(kg)
CAP-3 60 0.6 960 2.2 3 106
CAP-6 100 0.6 960 4 3 162
CAP-12 200 0.6 960 5.5 3 188
CAP-25 420 0.6 720 7.5 3 310
CAP-50 800 0.4 595 15 3 708
CAP-50G 800 0.4 595 15 3
CAP-75 1250 0.4 595 22 3 838
CAP-75G 1250 0.4 595 22 3
CAP-100 1660 0.4 500 30 3 1038
CAP-100G 1660 0.4 500 30 3
CAP-160 2660 0.5 450 55 3
CAP-160g 2660 0.5 450 55 3

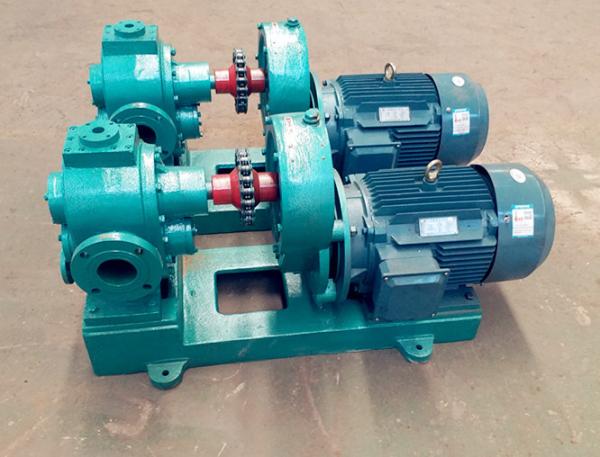

Structure of the Circular Arc-stle Gear Pump

This circular gear pump consists of the pump body, gear box, coupling, motor and the base. Both in the pump body and the gearbox there is a pair of gears made of high-quality steel which is mounted to the shaft after being precisely heat-procesed. Inside the pump body there is pair of circular arc-style gears and the gear shaft operates in high strength self-lubricated brass case.

One end of the driving shaft protruding out is equipped with a mechanical seal to prevent the oil leakage in operation. the motor, gear box and bump body are fixed with bolts onto the same which had four holes for the installation.
