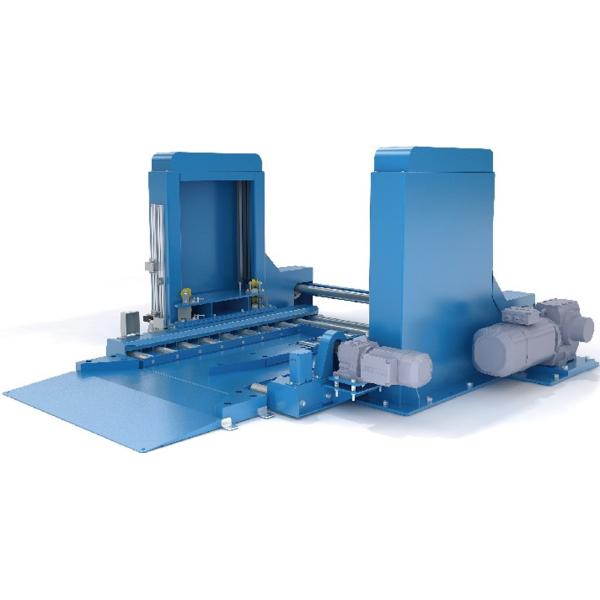

ASRS MHS Roller Pallet Conveyor Grounding Roller Lifter Multiple Lines
ASRS MHS Roller Pallet Conveyor Grounding Roller Lifter Multiple Lines
Specifications
Brand Name :
Kinte
Model Number :
Customized
Certification :
ISO9001/FEM/ISO14001/OHSAS 18001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Negotiable
Supply Ability :
Strong production capacity
Delivery Time :
According to customer's requirement
Packaging Details :
Packed with plastic films and wrap with strips
Model :
Pallet Conveyor System
Type :
Grounding Roller Lifter
lnner width :
620≤W≤1520 (w = pallet width + 20)
Height :
H min ≥80, H max≤1000
Length :
L=Pallet length+300=1500
Motor brand :
SEW(Europe), CPG(Taiwan)
Description

ASRS MHS Roller Pallet Conveyor Grounding Roller Lifter Multiple Lines

Payload 1200 Kg M Grounding Roller Lifter Pallet Conveyor System ASRS MHS

Standard

Description

W (mm)

lnner width

620≤W≤1520 (w = pallet width + 20)

H (mm) Height

H min/H max (Low position / High position)

H min ≥80, H max≤1000

L (mm) Length

L=Pallet length+300=1500

P (KW) Motor power

Lift: 0.4B(With Brake)

Transfer : 0.37B (With Brake)

V (m/min) Speed

Lift: 10

Transfer: 12,16,18

Motor brand

SEW(Europe),CPG(Taiwan)

Bearing brand/Bearing block brand

HRB/TR,NSK/TR,SKF/TR,NSK/NSK

Conveyor payload (Kg/m)

Max 1200

Nonstandard models can be customized.

Features of roller conveyor equipment

  1. It is easy to connect with the process equipment, the connection method is simple and compact, and sometimes it can be directly used as the material input and output section of the process equipment.
  2. Two or several rows of roller conveyors can be arranged side by side to form a mixed roller conveyor for conveying large items. The space between the rollers is convenient for arranging various devices and equipment.
  3. The roller conveyors are easy to connect and filter. Multiple roller lines and other conveying equipment or special machines can be used to form a complex material conveying system and a split and confluence system to meet various process requirements.
  4. The roller conveyor has the advantages of simple structure, stable operation, high reliability, and easy use and maintenance.
ASRS MHS Roller Pallet Conveyor Grounding Roller Lifter Multiple Lines
