2Megapixel Full HD 32x CNEX Flameproof Explosion Proof CCTV Camera With Infrared Lights

SH19-HD32 is SAKIA new developed fixed explosion proof camera, which is built into auto focus 1080P 32X zoom camera. The CCTV housing also has double infrared lights for longer distance night vision. The Camera housing is made of stainless steel 316L material and IP68 watherproof rated, special for hazardous area with explosive gas, oil, chemicals and powders.

SH19-HD32 Features

Explosion-proof, flame-proof design

SH19-HD32 is designed as full HD 1080P fixed explosion proof camera with infrared lights,

which can apply for hazardous area, like gas zone 1, gas zone 2, dust zone 21, and dust zone 22.

Long Rang Night Vision Distance

SH19-HD32 housing has double LED lights for dark area. Its lights night vision distance can be 100meters long, which can help get a good image during lower illuminate environment.

IP68 rated, Stainless Steel housing

SH19-HD32 explosion proof camera housing is IP68 rated, and its housing material can be made of stainless steel 304, 316L. The housing prevents any inside sparks or explosions from escaping and igniting vapors, gases, dust for fibers in the surrouding air.

Network Full HD 1080P Camera

SH19-HD32 is ready to use camera with 1080P resolution, 32X auto focus zoom camera.

SH10-HD32 series explosion proof camera has wiper systems for heavy polluted area. It can be equipped with washing tanker system to get a clearly surveillance video.

Audio, alarm, Fiber output options

SH19-HD32 is available with options of audio output, alarm output or optical fiber output. SAKIA help you reap the benefits of the most advanced technologies while taking advantage of your existing technology.

Power source input

SH19-HD32 power input can be AC85-265V or AC24V. Its power kit can also be upgraded as filter power kit, which has good performance of surge protection.

Lower temperature resist

SH19-HD32 can also be equipped with heater and cooling kit, which can resist temperature range from -50 to +65 °C. It is widely used in cold winter country such as Russia, Iceland, Norway, Ireland and Finland.

Hazardous area application

Explosion proof camera with infrared lights is suitable for industry aggressive area, such as off shore & onshore drilling rigs, marine vessel, oil refinery, gas plants, fueling station, paint & parnish manufacturing plants, grain processing industries, fertilizer plants, hospital operating room,wood processing zone,sugar industry,metal surface polishing, especially aluminite powder.

SH19-HD32 Technical Data Download

SH19-HD32 data sheet (EN) download link

Accessories

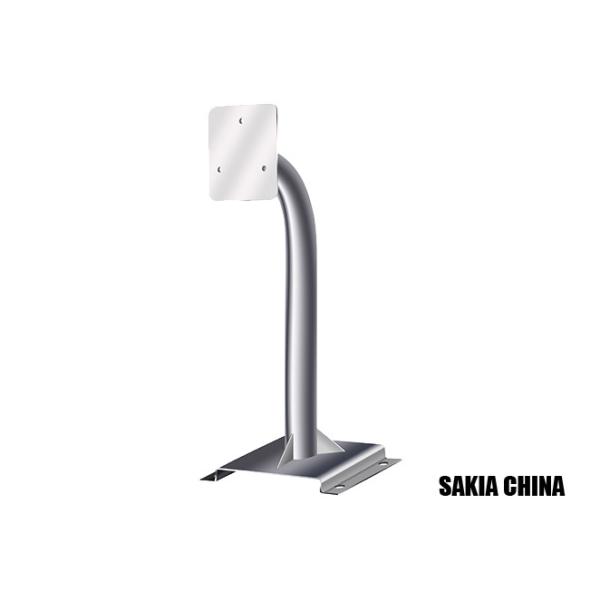

	Stainless steel wall mounted bracket	SP16
	Stainless Steel Univeral joint	SP21
	Explosion Proof flexible tube, Ø16*1000mm, with G3/4 connector,	SP12
	Explosion Proof junction box	SF17

Optional Models

SH19-HD32 2MP 32X , Exd 316L Explosion Proof Camera Housing Version

SH19-HD32S, 2MP 32X, Exd 304 Explosion Proof Camera Housing Version
