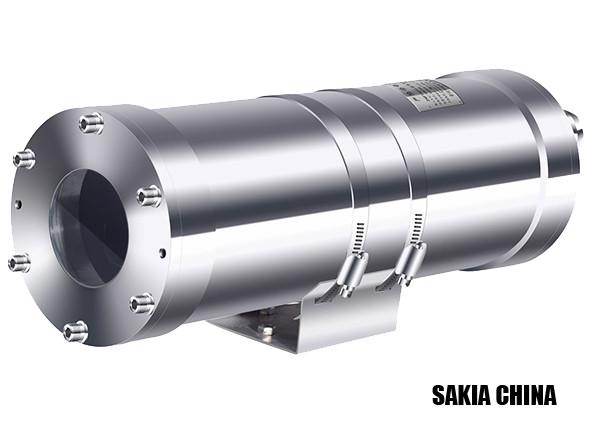

SH12 explosion proof CCTV camera housing can be fitted with box camera, bullet camera,

zoom lens camera, which is flexible choice for various application. The Camera housing is

made of stainless steel 304, 316L material and IP68 watherproof rated, special for hazardous

area with explosive gas, oil, chemicals and powders.

SH12 Features

Explosion proof, large enclosure design

SH12 is designed as an large size explosion proof camera housing, which inner usable space

can be 300*70*70mm. The explosion proof CCTV Camera can apply for hazardous area, like

gas zone 1, gas zone 2, dust zone 21, and dust zone 22.

IP68 rated, strong temperated glass

SH12 explosion proof camera housing is IP68 rated, and its housing material can be made of

stainless steel 304, 316L. Its window glass is 8 to 12mm thickness strong tempered glass.

The housing prevents any inside sparks or explosions from escaping and igniting vapors, gases,

dust for fibers in the surrouding air.

Optional Power source input

SH12 power source kit is optional can be AC85-265V or AC24V. Its power kit can also be

upgraded as filter power kit, which has good performance of surge protection.

Lower temperature resist

SH12 can also be equipped with heater and cooling kit, which can resist temperature range from

-50 to +65 °C. The thermostatically controlled heater starts on <10°C. The cooling kit starts on > 40°C.

the lower temperature version is more suitable for north countries with cold winter.

Hazardous area application

Explosion proof camera housing with wiper system suitable for industry aggressive area, such as off shore & onshore drilling rigs, marine vessel, oil refinery, gas plants, fueling station, paint & parnish manufacturing plants, grain processing industries, fertilizer plants, hospital operating room,wood processing zone,sugar industry,metal surface polishing, especially aluminite powder.

SH12 Technical Data Download

SH12 data sheet (EN) download link

Accessories

	Stainless steel wall mounted bracket	SP16
	Stainless Steel Univeral joint	SP21
	Explosion Proof flexible tube, Ø16*1000mm, with G3/4 connector,	SP12
	Explosion Proof junction box	SF17

Optional Models

SH12 Exd 316L Explosion Proof Camera Housing Version

SH12-S, Exd 304 Explosion Proof Camera Housing Version

SH12-Q, Exd Carbon Steel Explosion Proof Camera Housing Version

SH12-L, Exd 316L Lower Temperature Version (-50°C～+65°C)

SH12-SL Exd 304 Lower Temperature Version (-50°C～+65°C)
