Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection
Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection
Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection
Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection
Specifications
Brand Name :
SAKIA
Model Number :
SF17
Certification :
CNEX
Place of Origin :
Made In China
MOQ :
1pcs
Price :
USD1-300 per Set
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
300 pcs per month
Delivery Time :
3-7 work days
Packaging Details :
Neutral Carton Box
Material :
Stainless Steel 304 or 316L
CNEX :
Exd II CT6 Gb & Ex tD A21 IP68 T80°C
Temperature :
-25°C～+65°C
Weather Proof :
IP68
Connection inside :
6 pcs terminal blocks
Overall Size :
200*80*80mm
Net-weight :
3.5kg
Output Hole :
4 pcs of G3/4 gland for cable thread(14mm)
Description

Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection

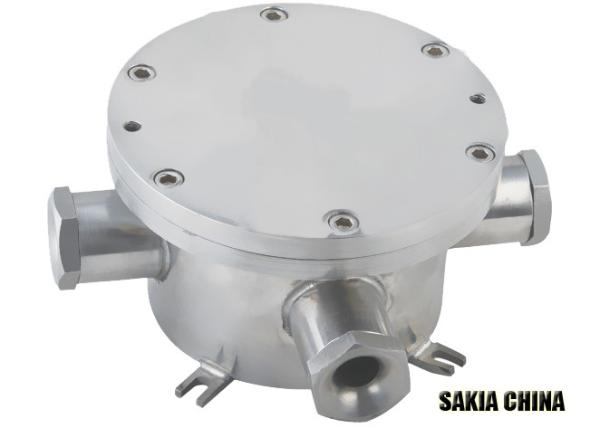

SF17 is a general-use explosion proof junction box, which make camera cable connection inside of box. The junction box housing is made of stainless steel 304, 316L material and IP68 watherproof rated, special for hazardous area with explosive gas, oil, chemicals and powders.

SF17 Features

Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection

Explosion proof, general-use design

SF17 is designed as an general-use explosion proof junction box for camera cable connection, which

has 6 pcs therminal blocks for cable connection. SF17 has 4pcs thread hole, size of G3/4, which can

apply for hazardous area, like gas zone 1, gas zone 2, dust zone 21, and dust zone 22.

IP68 rated, G3/4, NPT3/4 thread hole

SF17 explosion proof junctionn box is IP68 rated, and its housing material can be made of stainless steel

304, 316L. SF17 has 4pcs G3/4(NPT3/4 ) thread hole for cable thread by. The housing prevents any inside

sparks or explosions from escaping and igniting vapors, gases, dust for fibers in the surrouding air.

Hazardous area application

Explosion proof junction box is suitable for industry aggressive area, such as off shore

& onshore drilling rigs, marine vessel, oil refinery, gas plants, fueling station, paint & parnish manufacturing plants, grain processing industries, fertilizer plants, hospital operating room,wood processing zone,sugar industry,metal surface polishing, especially aluminite powder.

SF17 Technical Data Download

SF17 data sheet (EN) download link

Accessories

Hazardous Area IP68 Explosion Proof Stainless Steel Junction Box For Cable Connection Explosion Proof flexible tube, Ø16*1000mm, with G3/4 connector, SP12

Optional Models

SF17 Exd 316L Explosion Proof Junction Box Version

SF17-S, Exd 304 Explosion Proof Junction Box Version
