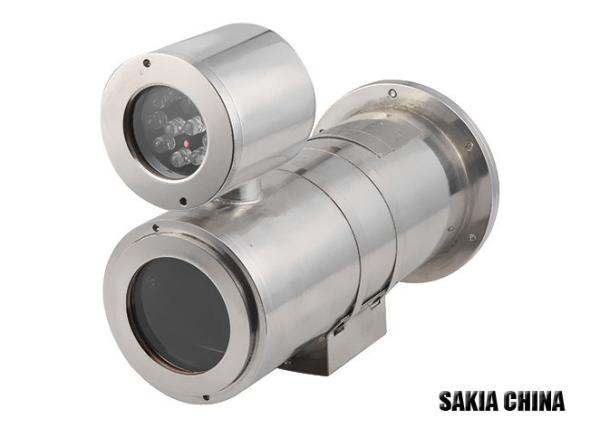

Explosion Proof industrial camera housing with wiper infrared light SH11C
Explosion Proof industrial camera housing with wiper infrared light SH11C
Specifications
Brand Name :
SAKIA
Model Number :
SH11C
Certification :
CNEX
Place of Origin :
China
MOQ :
1pcs
Price :
USD1-1000 per Set
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
300 pcs per month
Delivery Time :
3-7 work days
Packaging Details :
Neutral Carton Box
Material :
Stainless Steel 304 or 316L
CNEX :
Exd II CT6 Gb/ Ex tD A21, IP68 T80°C
Temperature :
-25°C～+65°C(optional-50°C～+65°C)
Weather Proof :
IP68
Inner size :
300*80*80mm
Mounted way :
Pole top, wall mounted
Night Vision :
0-20m, 20-60m
Description

IP68 night vision infrared light Explosion Proof camera enclosure SH15C

Features

Certificate: CNEX CE

Ingress Grade: IP68

Installation: mounted on ceiling, wall with pan &tilt, brackets

AISI316L stainless steel construction

sun shield to avoid excessive heating

optional accessories such as wipers

made of all-weather materials

protection against harsh and potentially corrosive environments

Strong protection against the elements for most climates

Widely used in petrochemical industry, and military industry, etc

Multiple Power: 24V AC, 24V DC ,220VAC POE

 Explosion Proof industrial camera housing with wiper infrared light SH11C

Explosion Proof industrial camera housing with wiper infrared light SH11CExplosion Proof industrial camera housing with wiper infrared light SH11CExplosion Proof industrial camera housing with wiper infrared light SH11CExplosion Proof industrial camera housing with wiper infrared light SH11CExplosion Proof industrial camera housing with wiper infrared light SH11C

Application

The Camera Housing is constructed from stainless steel AISI304 or AISI316L with glass windows and designed to accommodate a range of CCTV cameras, infra-red cameras, lenses and associated ancillary equipment to allow their deployment in harsh environmental conditions.The housing has facilities for optional items such as window demister/heater, internal window wiper mechanism, integral window washer pump and external sunshield.

Description

Many industries are in a flammable and explosive environment. In the civil industry, dust generated from metal processing of magnesium, aluminum and manganese, dust produced in grain processing such as coal processing, flour starch, etc., dust generated in textile processing. These dusts are very prone to explosions. In heavy industry, some industrial sectors such as the oil and gas industry or the ocean are often in the flammable gas environment. Explosion-proof cameras are very suitable for monitoring production activities in this environment, including people and vehicles. , operation and movement of production equipment

Datasheet

SH15C
Certificate
Certificate Mark Exd II C T6 GB/DIP A20 TA, T6
Certificate No CNEx15.1263
Standards Q/21392SH12-2015
Mechanical
Housing Stainless steel 304 or 316L
IP IP68
Cable thread hole 2pcs G3/4 or NPT3/4
Sun-shield No
Wiper No
Electrical
Voltage DC24Vor POE
Power 8W
Ambient
Ambient temperature -25 to +60°C / -45 to +80°C
Air pressure 80Kpa to 106Kpa
Relative Humidity ≦95% (no condensation)
General
Cable integrated cable
Size 350*142*142mm
Weight 7.0kg
Mounted wall, pole
Wall bracket SP16
