CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
Specifications
Brand Name :
wincor
Model Number :
1750035776
Certification :
CO
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
800pcs in stock
Delivery Time :
1day
Packaging Details :
Natural packing or according to customer's requirement
Warranty :
90 Days
Condition :
Original New
Product name :
CMD V4 V module drive shaft
Used in :
WINCOR Procash serial
Material :
rubber+ metal
Shipment :
DHL Fedex UPS TNT, By Express/by sea/by air, By Express/ Air/sea, Express, By sea
After-sales service provided :
Online support, Video technical support
Weight :
0.3kg
Description

1750035776 Wincor Nixdorf ATM Parts V Module CMD V4 DRIVE SHAFT

1750035776 Wincor Nixdorf ATM Parts V Module CMD V4 DRIVE SHAFT

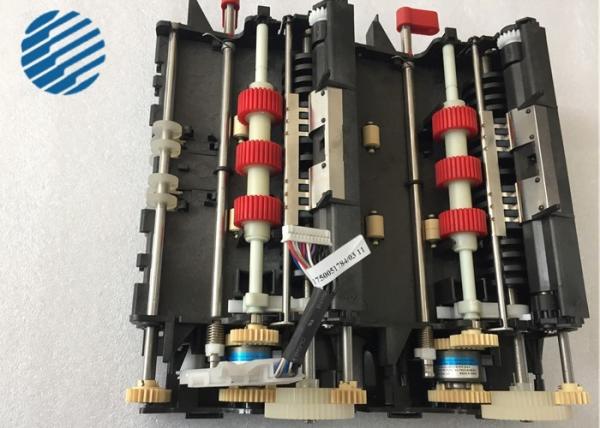

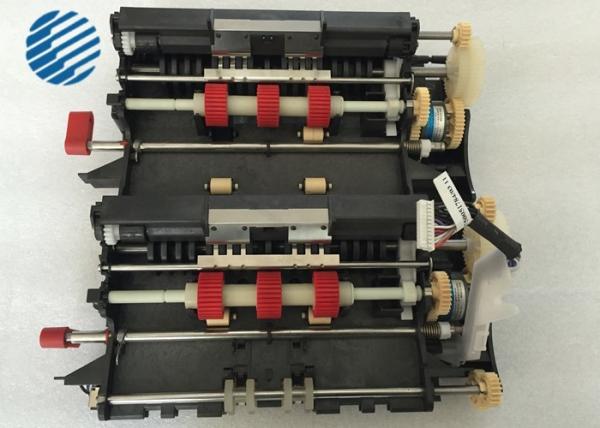

  • Double dispensing unit without DDU (CMD-V4 or VCMD)
A pendulum dispensing shaft is installed for the note dispensing. The drive of
the extractor shaft is provided by the central motor as well as a magnetic
coupling for each extractor shaft. At one end of the extractor shaft there is a
pressure sensor through which the note contact pressure and the message
'Cassette pushed in' are checked. A forward motion of the notes is brought
about by an additional roller in the cassette. Preliminary separation is achieved
by means of an extended inlet slope in the cassette.
The cassette can readily be pushed into the rack with dispensing unit(s). They
engage in place and are locked in the final position. The cassette position is
queried by the pressure sensor. The cassettes can be unlocked with the
release lever on the rack.
Voltages and signals from the controller to the cassette are redirected through
the cassette connector.
  • The following components are addressed in the dispensing unit.
1.Dispensing clutch
2.Retaining magnet
3. 'Note dispensing' photosensor
4.Cassette empty message' photosensor
5. Pressure sensor for 'Cassette pushed in' and 'Note contact pressure
Adjustment eccentric
The adjustment eccentric is part of the dispensing unit with which the
dispensing gap (V gap) can be set.
There are three settings for the
eccentric: Setting A, B and C.
In new deliveries, they are always set
to position A. If a replace dispensing
unit is supplied, its maximum setting is
B.
CMD V4 V Module Drive Shaft Wincor Nixdorf ATM Parts 1750035776
If the double dispenses from a single cassette in the CMD-V4 become more
frequent, the V gap on the corresponding dispensing unit can be decreased by
increasing both eccentrics (respectively to left and right of the shaft) by one
step, e.g. from A to B. If the V gap is set too high, than no dispensing from the
corresponding cassette will be possible.

  • Product Detail
1 1750044672 V Module Side Guard Plate
2 1750041948 CMD-V4 38t 49t Gear
3 1750109641 1750192140 Wincor Red Puller V Module Shaft
4 1750041947 Wincor Nixdorf Clutch Assembly For 2050 XE. Magneta 24V
5 1750044668 Measuring Station Sensor Holder Ceramic Assd
6 1750041952 GEAR WHEEL G26 26T
7 1750041951 V Module 25T Gear
8 1750041950 GEAR WHEEL G17 17T
9 1750042174 GEAR WHEEL G19 19T
10 1750035778 DRIVE ROLLER SHAFT CMD V4 ASSY
11 1750035768 THICNESS MEASURING SHAFT ASSY
12 1750020811 Counter rotat shaft assy
13 1750035275 V Module Roller with 3 Wheel Shaft Assy

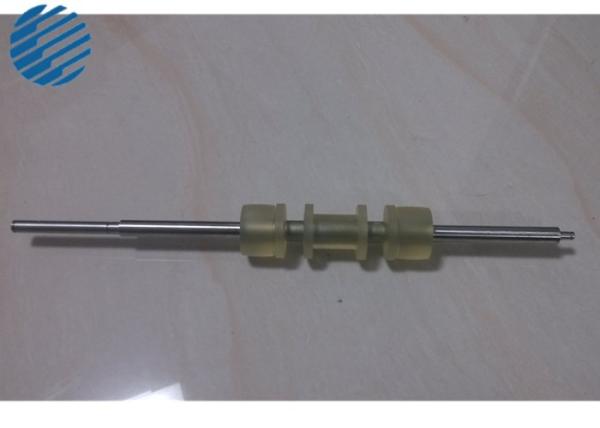

14 1750035776 DRIVE SHAFT CMD V4 ASSY
15 1750035773 Wincor Nixdorf CASH GUIDE XE
16 1750041251 Wincor Nixdorf Flat Belt, double extractor
17 1750035775 DOUBLE EXTRACTOR CHASSIS 01750035775
18 1750050076 Double Extractor Selenoid
19 1750035761 DOUBLE EXTRACTOR CHASSIS 01750035761
20 1750044604 MAGNET SUPPORT MDMS ASSD
21 1750051760
