GRG CDM8240 Bundle Banknote Dispenser For H22V H22V H22VL H22N
GRG CDM8240 Bundle Banknote Dispenser For H22V H22V H22VL H22N
GRG CDM8240 Bundle Banknote Dispenser For H22V H22V H22VL H22N
GRG CDM8240 Bundle Banknote Dispenser For H22V H22V H22VL H22N
Specifications
Brand Name :
GRG
Model Number :
YT4.029.039
Certification :
CO
Place of Origin :
China
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
800pcs in stock
Delivery Time :
1day
Packaging Details :
Natural packing or according to customer's requirement
Power Supply :
DC 24V±10%，200W（max）
Condition :
Original New / Refurbished original
Product name :
Bundle banknote dispenser CDM8240
Used in :
GRG ATM H22V H22V H22VL H22N/H22 serial
Weight :
Standard throat：42kg ( two cassettes）and the weight increases by 11kg for adding
Shipment :
DHL Fedex UPS TNT, By Express/by sea/by air, By Express/ Air/sea, Express, By sea
After-sales service provided :
Online support, Video technical support
Environment :
Working temperature：0℃～50℃ and Working humidity：20%～90%RH
Description

GRG ATM Parts CDM8240 Dispenser For H22V H22V H22VL H22N 4+1 New

YT4.853.1854 YT4.853.1855 YT4.853.7057 YT4.853.7058 YT4.853.7059YT4.029.039

  • Product features
The CDM8240 bundle dispensing module, the fruit of years of research and development, is a market leadingcashdispensingmoduleofwhichGRGBankingpossesses full independent intellectual property rights. Asa combination of advanced functionalities and a low costof ownership, the CDM8240 offers superior performanceand high reliability whilst it is easy to operate andmaintain. All this and more makes the CDM8240 an idealsolution for ATMs and other self-service application
  • Reliability
Complete detection for worn notes, double
notes and folded notes
Available to banknotes of various materials,whether new or not
Keyed reject bin is fully enclosed for security
  • Low Operation Cost
Cassette with the large capacity of 3000 notes lowers the frequency of cash loading and d aintenance cost
Leading dispensing speed of 7 notes per second meets the demand of fast transaction
Bills not taken within the specified period will be automatically captured by the CDM, which avoids conflicts during transaction
  • Company Profile

TS TECH (HONG KONG) CO.,LTD founded in 2003 in China,is a leading professional supplier of ATM modules and spares, and help hundreds of customers from around the world to source their NCR, Wincor,Diebold,hyosung,GRG parts.

TS TECH (HONG KONG) CO.,LTD has a professional sales and technical team.Most of our sales have more than 10years experience in ATM industry.Our sales know exactly what machine are used in each Market. They are also experienced in importing&exporting from each country.

It can save your communication times.

Our technical team consists of four members. We have top technicians for every brand.As all of them have years of working experience in manufacturers such as wincor diebold NCR hyosung.They can give you technical support.

We are a direct manufacturer in atm spare parts.our factory located in Guangzhou.TS also have good relationships with original manufacturer.we can get new original parts from manufacturer.

I trust TS can give you good support!

  • Product Specifications
Bill Dispensing Bundle widthwise with a speed of 7 notes per second
Banknote Available Material:paper and polymer Length range:110~172mm Width range:55~85mm,Thickness range: 0.06~0.18mm
Cassette Capacity:3000 notes for each cassette Low level detection: 50-250 notes
Reject Bin
Capacity: 100 notes(bundle)+250 notes
(single)
Fully enclosed and isolated design with
a security lock
Maintenance Direction Front/ rear access
Communication Interface RS-232 or USB
Specifications for CDM8240 Media ranges: Length: 110mm ~172 mm/ Width: 55mm ~85 mm/Thickness: 0.06mm ~0.18 mm
Dispensing system: Friction feed, Bundle dispensing, 7 notes/secondMaximum notes per transaction: 60 notes
Low level detection: 50~250 notes (adjustable)
Reject mode: Single/Bundle
Maintenance: Front/Rear
Note Cassette: Expandability: Up to 4 Cassette capacity: 3000 notes
Reject tray capacity: 100 (single area) + 250(bundle area)
Security: Mechanical lock and lead sealing
Weight
standard throat: 42 Kg long throat: 44 Kg (two cassettes weight, withthe increase of every cassette, the weight shall be added by 11kg.)Communication interface: RS- 232/ USB (optional)
Operating environment:Temperature: 0%C ~500C Humidity: 20% ~90%non-condensing
Power supply
Input voltage : 110V+10%; 220Vt 10%
Consumption : ldle 30W;
Operating 100W

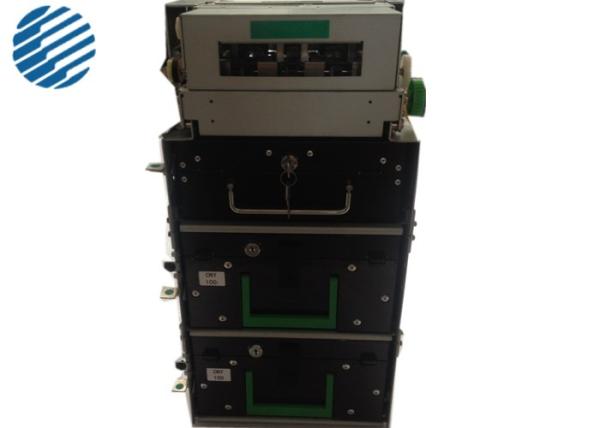

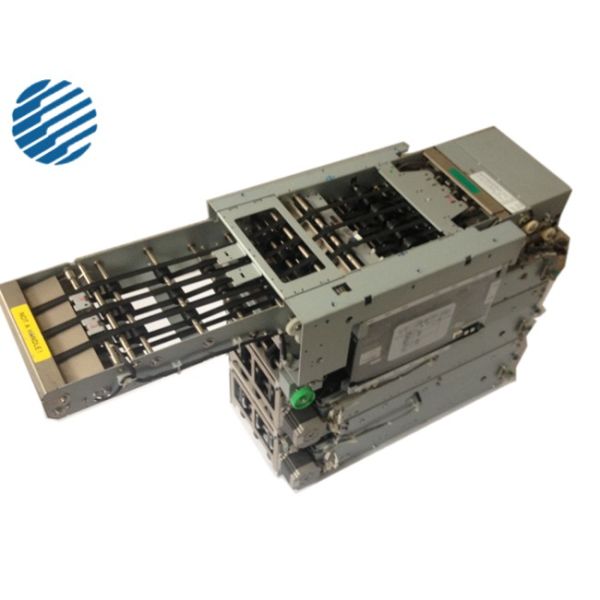

  • Pics detail

GRG CDM8240 Bundle Banknote Dispenser For H22V H22V H22VL H22N
