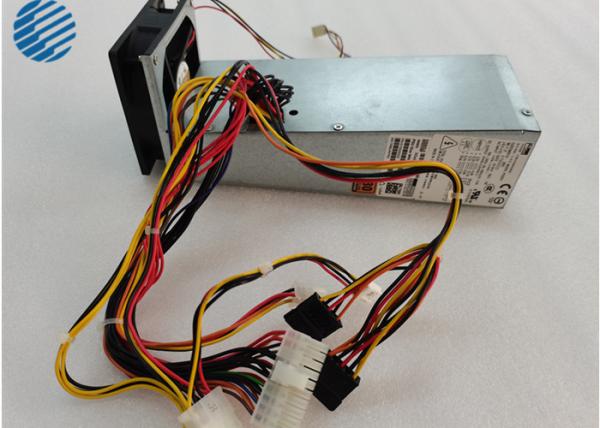

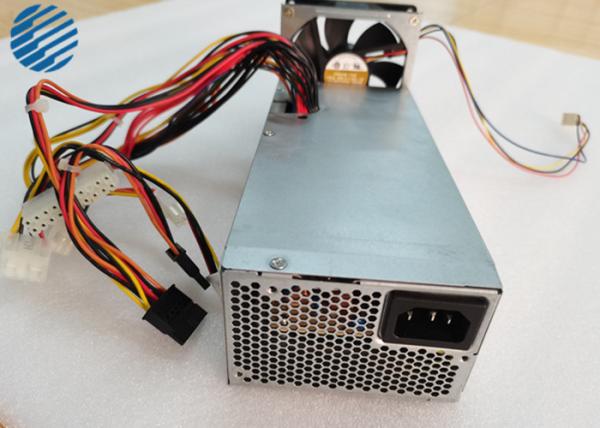

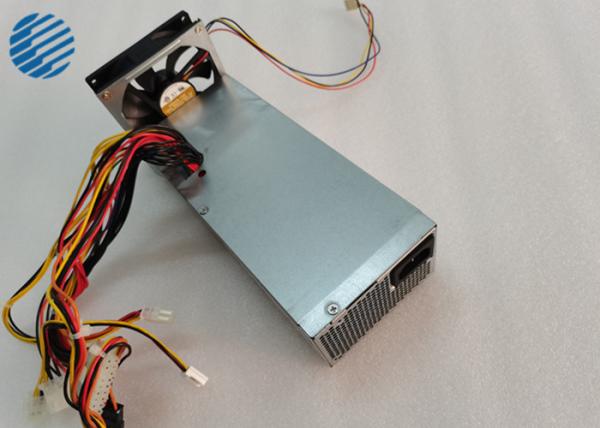

1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
Specifications
Brand Name :
wincor
Model Number :
1750255322
Certification :
CO
Place of Origin :
Germany
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
800pcs in stock
Delivery Time :
1day
Packaging Details :
Natural packing or according to customer's requirement
Warranty :
90 Days
Condition :
Original New
Product name :
Power supply 225W
Used in :
WINCOR ATM
Material :
(Plastic+ metal )
Shipment :
DHL Fedex UPS TNT, By Express/by sea/by air, By Express/ Air/sea, Express, By sea
After-sales service provided :
Online support, Video technical support
Weight :
3kg
Description

1750255322 Wincor ATM Parts Power Supply 1WN PC BD 225W 80Plus

1750255322 Wincor ATM Parts Power Supply 1WN PC BD 225W 80Plus

  • Services
Note the warning and information labels on the device.
Unless otherwise stated, grasp the components only by the green ledge
when handling them.
The device is equipped with a safety-tested power cable. The. which must
be connected only to a suitable grounded outlet.
hold the plug when removing the power cable. Never pull the cable
itself.
Lay all connecting cables in such a way that they will not be stepped on or
tripped over, damaged or crushed in any way.
Have damaged power cables replaced immediately.
Make sure that there is always free access to the sockets used or to the
electrical circuit-breakers of the house installation.
In case of an emergency (e.g. damaged housing, controls or power cables,
water or foreign objects in the device), proceed as follows:
Deactivate the device immediately by:
Switching off the automatic circuit breaker or removing the fuse insert
from the fuse holder in the distribution box of the building’s electricity
distribution cabinet.
Disconnecting the plug of the power supply cable from the grounded
socket in the building installation;
Switching off the ON/OFF switch on the power distributor.
Interrupting the power connection, if there is one, between the UPS
(uninterruptible power supply) and the device (see section "General
power interruption").
Never connect or disconnect data transmission lines during a
thunderstorm.
Always keep the device’s vents free from obstruction to ensure proper air
circulation and to prevent malfunctions resulting from overheating.
Only use accessories and extension components that have been approved
by us. Nonobservance can result in damage to the system or violations of
regulation concerning safety, radio interference and ergonomic
requirements.
  • Dispensing in the direction of the customer
1. Dispensing of the requested banknote number one after another from
every cassette (overall max. 60) (k)
2. Transport of the single notes to the multiple-note detection unit (i)
3. Transport of single notes for serial number detection (configuration
dependent) (o)
4. All 'good notes' are stored in the stacking position of the clamp (e)
5. Clamp gets closed with the routing disk
6. Routing disk takes the vertical dispensing position (d)
7. Transport of the bundle to the cash-out position (b)
8. The shutter opens
9. Transport of the bundle to the removal position
10. Note output by the customer
11. The shutter closes
12. Clamp goes back to its stacking position and switches automatically
open (e)
1. - 4. Process as the dispensing in the direction of the customer (vertical
Frontload)
5. Routing disk takes the horizontal dispensing position Frontload (d)
6. Clamp moves in the direction of the dispensing (horizontal
Frontload) (n)
7. Routing disk moves to the reject/retract position (d)
8. Clamps moves in the reject/retract position
9. Routing disk moves to the reject/retract position "Block the route" (d)
10. Clamps moves in the reject/retract cassette as far as possible
11. Routing disks turns in the reject/retract position and moves the
clamp to its reject/retract position by that
12. Transport of the bundle in the reject box of the reject/retract cassette (g)

  • Product Detail for CMD V4 LIST
1 1750044672 V Module Side Guard Plate
2 1750041948 CMD-V4 38t 49t Gear
3 1750109641 1750192140 Wincor Red Puller V Module Shaft
4 1750041947 Wincor Nixdorf Clutch Assembly For 2050 XE. Magneta 24V
5 1750044668 Measuring Station Sensor Holder Ceramic Assd
6 1750041952 GEAR WHEEL G26 26T
7 1750041951 V Module 25T Gear
8 1750041950 GEAR WHEEL G17 17T
9 1750042174 GEAR WHEEL G19 19T
10 1750035778 DRIVE ROLLER SHAFT CMD V4 ASSY
11 1750035768 THICNESS MEASURING SHAFT ASSY
12 1750020811 Counter rotat shaft assy
13 1750035275 V Module Roller with 3 Wheel Shaft Assy
14 1750035776 DRIVE SHAFT CMD V4 ASSY
15 1750035773 Wincor Nixdorf CASH GUIDE XE
16 1750041251 Wincor Nixdorf Flat Belt, double extractor
17 1750035775 DOUBLE EXTRACTOR CHASSIS 01750035775
18 1750050076 Double Extractor Selenoid
19 1750035761 DOUBLE EXTRACTOR CHASSIS 01750035761
20 1750044604 MAGNET SUPPORT MDMS ASSD
21 1750051760
22 1750052437/1750051784/1750062190

  • Pics detail

1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety

1750255322 ATM Machine Parts Wincor Power Supply 225W High Safety
