4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
Specifications
Brand Name :
Diebold / HITACHI
Model Number :
4P007460A
Certification :
CO
Place of Origin :
America
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
800pcs in stock
Delivery Time :
1day
Packaging Details :
Natural packing or according to customer's requirement
Warranty :
90days
Condition :
generic new
Product name :
ATM Parts WCS-S.ROLR ASSY
Used in :
DIEBOLD HITACHI module
Material :
PLASTIC+PU
Shipment :
DHL Fedex UPS TNT, By Express/by sea/by air, By Express/ Air/sea, Express, By sea
After-sales service provided :
Online support, Video technical support
Weight :
0.02kg
Description

4P007460A Diebold ATM Parts WCS-S.ROLR ASSY HCM ECRM BCRM Hitachi

4P007460A Diebold ATM Parts WCS-S.ROLR ASSY HCM ECRM BCRM Hitachi

  • HITACHI 2845
ADVANTAGES OF AUTOMATED DEPOSIT AND BANKNOTE RECYCLING The HT-2845 ATM has the following advantages:
(1) Automated deposit function
With the automated deposit function, the HT-2845 ATM can adjust account information immediately after the deposit transaction. This function eliminates the need for the bank staff to count and record the deposited banknotes in the back office.
(2) Banknote recycling system
The banknote recycling system can divert deposited banknotes into use for subsequent withdrawal transactions, storing banknotes in the same place for both deposit and withdrawal (see Fig. 2).
This system reduces the required space for storing cash needed for withdrawal, and banks can release their funds for alternative use.
Banks can also reduce ATM running costs, because frequent cash replenishment is not needed.
HITACHI’S NEW CASH MODULE
This chapter describes Hitachi’s new Cash Module (HCM), HT-3842, which enables the HT-2845 ATM to have the features described above (Fig. 3). Configuration and Actions The HT-3842 HCM is divided into an upper and a lower unit (see Fig. 4).
The upper unit is a note-recognition unit consisting of a cash in and out slot, a bill validator, a temporary stacker, and note-transport mechanisms. The lower unit is a banknote storage and it can be installed in a security safe. The lower unit can be equipped with up to five cassettes.
Communicating with the ATM, the HT-3842 HCM processes banknotes as follows: (1) It counts and validates the banknotes deposited by
a customer and sends them to the temporary stacker (escrow). (2) It sends banknotes from the temporary stacker and stacks them in the cassettes. (3) It dispenses banknotes from the cassettes and sends them to the cash in/out slot, validating each banknote in the process. Key Mechanisms The HT-3842 HCM has the following key mechanisms for the excellent performance of its functions.
(1) Cash in and out slot A single cash slot can handle bulk notes for both deposit and withdrawal transactions. This enables simple and easy operation for ATM users. Notes in bad condition are detected by a sensing system and returned immediately. The distance between banknotes fed into the system is strictly controlled. The controlling system with paddle-roller rotation enables stacking banknotes of various sizes in good condition. These mechanisms prevent the jamming of banknotes. (2) Banknote transport mechanism A simple two-way mechanical configuration provides high transport reliability. Using highly flexible and low-load durable transport belts, HCM can process banknotes at a speed of approximately 8 notes a second, which is the highest speed for banknote recycling modules handling world currencies. Optical sensors along the path are tuned automatically to prevent sensing troubles caused by dust. (3) Temporary stacker (escrow) The temporary stacker has a dram wheel that rolls up and winds off banknotes in the deposit process.
This mechanism enables handling banknotes of various sizes and those in bad condition. (4) Cassettes
The cassettes can hold a large number of banknotes, by stacking banknotes vertically and lining them up horizontally. ROLLING OUT INTO THE WORLD MARKET In 2000, Hitachi participated in CIFTEE (China International Exhibition on Financial Technology and Equipment) in Beijing to demonstrate its HT-2845 ATM, which was approved by Chinese government leaders and bank executives. In March, 2001, the ATM began its operation in China, and so far about 100 ATMs with cash recycling are in use. Hitachi is now providing its cash-handling module, HT-3842 HCM,to global ATM manufacturers. Some manufacturers have already exhibited their original cash-recycling ATM integrating HT-3842 (Retail Delivery Show, U.S.A., January 2000; CeBIT, Germany, March 2001).
  • Product Detail
DIEBOLD HITACHI ATM parts list
ROW1 PARTNUMBER Description ROW2 PARTNUMBER Description
1 IP004062 WCS-UNIT ASSY 31 7P0Il710 wCS-F.MT .BRKT ASSY
2 lP004063 wcs-UNIT.SUB ASSY 32 7P0I17ll wcS- 3MT.BRKT ASSY
3 IP004065 wCS-F D. FRAME ASSY 33 SP 306L wcs-FRNT.BRKT ASSY
4 7P006543 wcS-L.GUIDE.L BRKT 34 SP312L wcS-SEN covER
5 7P01034l wCS-L.GUIDE.R BRKT 35 SP408L TRB SF BELT F
6 4P008142 wcs-L.GUIDE ASSY 36 45000o i wCS-6K STUD
7 4P008142 wcS-L.GUIDE ASSY 37 45000o l wCS-6K2STUDL
8 7P00655l wcs-s.u.G BRKT 38 Sc408 -SCREW
9 4P008975 wCS-FRONT.PLT ASSY 39 HE00 I96 WET-T1-GUIDE SPG
10 IP004006 wCS-FRONT PLATE 40 4P007365 wZ-M7P .CBL ASSY
11 7PO1 I72I wCs-F PLATE SPG 41 4P007366 WZ-M6P.CBL ASSY
12 7P006573 wCS-FP PIN 42 4P007367 wZ-MI2P.CBL ASSY
13 7P012780 wCs-FP.SPG SHAFT 43 2P004454 WUF -B/R-R.GUl ASSY
14 2P004480 B-SCREW 44 IPO04018 WUF -B-ROLR GUIDE
15 2P004482 z-JRE PURCH.SPEC 45 7P006l20 WBM-PRISM MOLDWBM-B/R.C
16 7P011709 ERING 46 7P011614 SHAFTNRB-B/R ROLR
17 7P016635 wCS-FP.K SPG 47 4P008998 WBM-B/R.SH CLIP
18 7P006573 wCS-FP PIN 48 2P004455 WUF -BLT.GUID ASSY
19 4P009200 wCs-FPP CLAMP 49 4P007382 wUF -S003-CBL ASSY
20 4P009200 wcS-FPP CLAMP 50 2PO04456 WUF -KAIHEI.G ASSY
21 L40942 Jz-BELT CLAMP 51 2P003973 WUF-CS9FRAME
22 4P008173 wcs-sID-UP L GUIDE 52 7PO10385 WUF -SP6.R ASSY
23 4P008172 wcs-SID-UP R GUIDE 53 7P006552 R-NMB BRG
24 7P012616 wcs-STOPR.B ASSY 54 2P004465 wWuF -CS-3 GATE
25 4P008984 METAL BUSH 55 2P004430 WuF -CS-2 GATE
26 4P008935 WUF -IDL2.S ASS Y 56 2P004429 wWUF -CS-l GATE
27 4P005078 WUF - lDL-2 SHAFT 57 4P005069 wUF -U/L-6ATE SHAFT
28 4P008932 WUF-KUDO.R.S ASSY 58 4P008930 WUF-GATE.S ASSY
29 2P004358 WBM-S. DRIVE ASSY 59 7P011647 WUF -FL.GUIDE SPG
30 4P008936 WUF -SI .3BRKT ASSY 60 4P008132 WUF -S1.S3 BRKT

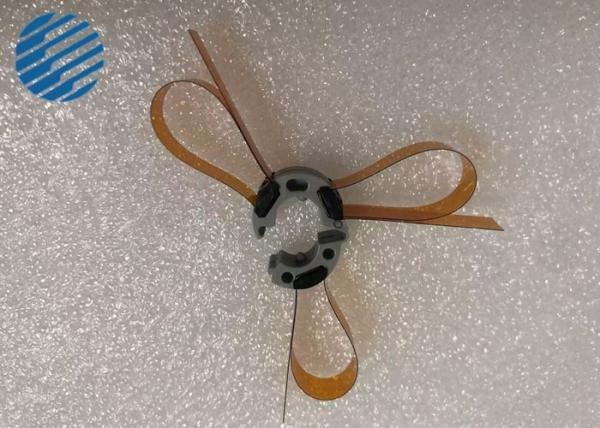

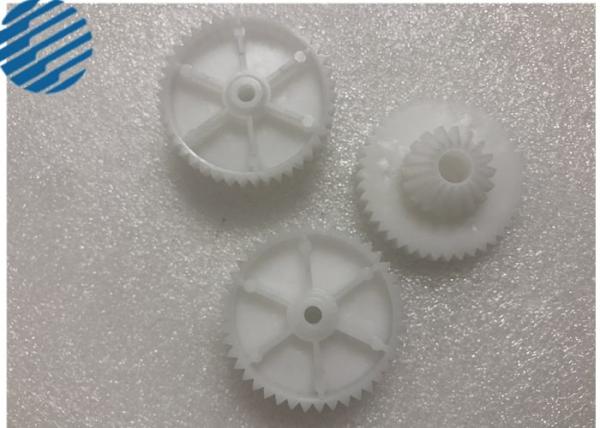

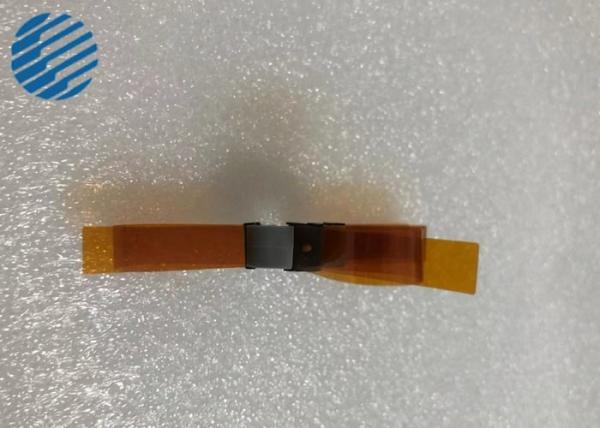

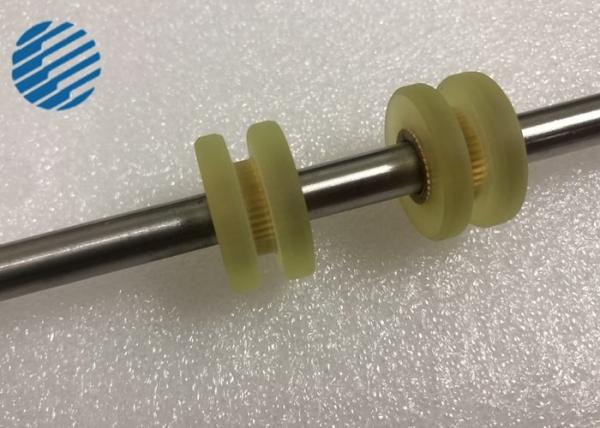

  • Parts Pics

4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi4P007460A Diebold ATM Parts WCS-S ROLR Assy HCM ECRM BCRM Hitachi
