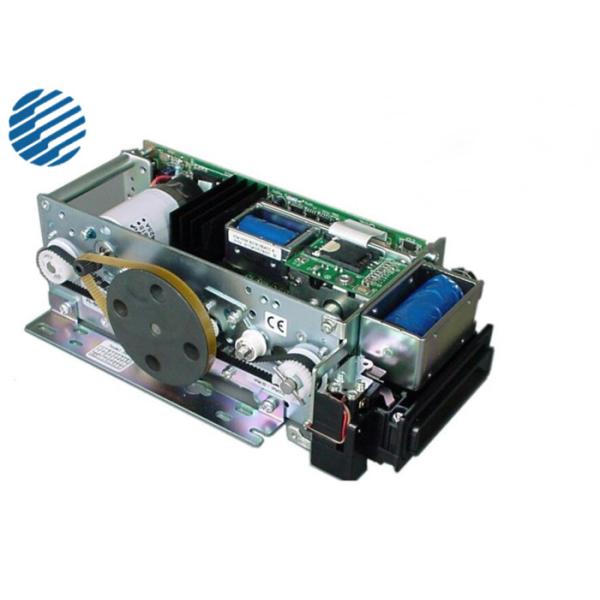

Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
Specifications
Brand Name :
Nautilus Hyosung
Model Number :
S52200006799 / 52200006799
Certification :
CO
Place of Origin :
Korea
MOQ :
1pc
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs in stock
Delivery Time :
1day
Packaging Details :
Natural packing or according to customer's requirement
Condition :
Original New and Refurbished original
Product name :
NH card reader control board
Used in :
HYOSUNG 8700T
Material :
Metal+PCB
Stock status :
1000pcs in stock
Shipment :
DHL Fedex UPS TNT, By air/ Express, By sea
After-sales service provided :
Online support, Video technical support
weight :
0.8kg,packing dimension :15*10*13cm
Description

Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799

Nautilus Hyosung ATM Parts CARD READER PCB S52200006799 8700T

52200006799

  • ICT3Q8-3A2294 Card Reader Specification
Applications
1) ATM/CD
2) Kiosk terminals
3) Payment systems
4) Retail POS terminals
5) Access control terminals
6) Other ID terminals
7) Low profile type
Features
1) High reliability and durability
2) IC Card protocol handling for
ISO and EMV Level 1 approved
3) Mechanism for warped card
handling
IC Contact
ISO/IEC 7816-Part1,2 and 3
Protocol Handling (T=0 and 1)
EMV 2000 ver 4.0 Level1 approved
Magnetic Stripe
ISO/IEC 7810,7811 series7813
R/W (Hi-Co write available : 2700Oe)
Power Requirement
+24 V DC / 2.0A (2.5A at peak 50ms)
Signal Interface
USB 1.1
Unit Life
More than 1,000,000 passes
Dimensions
112 mm(W) x 214 mm(D) x 68 mm(H)
Connector
UBB-4R-D14-1(LF) (JST) for USB
22-05-1042 (MOLEX) for Power
Mass
1.7 kg approx
  • Other parts in MX5600 HYOSUNG ATM
NAUTILUS HYOSUNG ATM parts list
ROW1 PARTNUMBER Description ROW2 PARTNUMBER Description
1 7760000067 PCBA:CST_M:CDU10 22 7120000089 UNIT:BRM20_SHUTTER:MX8000TA
2 7430000242 UNIT_SUB_ASSY:SOL_SF 23 7090000328 UNIT:CE:FC_EX_G41:Core2duo:2GB:HDD1
3 4820000027 BELT:T_BELT_W04L96_S3M 24 S5743000044 PC:TG:H61:DualCore2.5G_G540:2GB:HDD1:ODD
4 4820000028 BELT:T_BELT_W08L516_S3M 25 5611000125 PCBA:NCM-V05F-2:USB CAMERA:THIRD:NAMUGA
5 7310000405 SUB_ASSY:ROLLER_PICK_UP_SF 26 5611000126 PCBA:NCM-V05F-2:USB CAMERA:SECOND:NAMUGA
6 7310000408 SUB_ASSY:MOTOR_PICK_UP 27 7650000141 PCBA:7PORT_SMSC_HS_USB_HUB_B/D:NH
7 4400000090 LEVER:LOCK_GUIDE_OUT_FM 28 S7020000032 UP_KIT:UNIT:L-SPR3:INDIA
8 4400000091 LEVER:FIT_SF_LOCK 29 S5665000003 UP_KIT:VIDEO.CARD:HD7350:PCI-E
9 7430000445 UNIT_SUB_ASSY:NOTE_SEPA_SF5 30 S5693000025 UP_KIT:HDD_3.5 INCH:SATA:320GB
10 4380000027 MOLD:KNOB_CAP_CST 31 S7310000733 UP.KIT:SNB_ASSY:ESCROW (ASSY:CARRIAGE_ALL. )
11 4500000679 MOLD:HINGE_CAP_CST 32 S3250000019 UP_KIT:CABLE_ ASSY_SHU:END SEN
12 5611000166 PCBA:TOUCH CON:RES-05CUA_R20:RES:USB:S&T 33 S1010000055 UP_KIT:CPU:DUAL CORE:E5700:LGA
13 5659000024 T/S:TOUCH PANEL:T101IS-5RB001X:HIGGSTEC 34 S3266000992 UP_KIT:CABLE _ASSY:SYS:MULTI PO
14 5611000268 PCBA:AD_BD:NT101_VGA:10.1INCH:NEOTECH 35 S7090000310 UP_KIT UNIT:FC_EX_G41:EX_G41:E5700:2G
15 7650000034 PCBA:AD GENESIS_ASSY_OSD B/D:SMALL SIZE 36 S7090000149 UP_KITUNIT:CE:IG SAMBO:MX 560
16 7110000025 UNIT:SPL:10.1INCH:MX8200T 37 S7307000177 UP_KIT:SUB_ASSY:CST_NH_WW
17 5621000034 UNIT:P/S:750W:HPS750-BATMI 38 S56721401 UP_KIT:PRINT:MDP_350:DOT_9WIRE
18 5645000019 UNIT:MCU:ICT3Q8-3A2294:SANKYO:M_driven 39 S7310000709 UP_KIT: ASSY:MB
19 7000000229 UNIT:BRM20R-L124MG1HT-00 40 S5621000002 P/S:HPS250-GTTW:MX-7100T:TURKEY
20 7010000209 UNIT:CDU10_5CST_REAR_AUTO 41 S4520000535 UP_KIT:K-ASSY:PAPER_TAKE_SH_D322-MECH07
21 7100000136 UNIT:TILT_OPL_TC_NDC:MX_8200T 42 3205000028 CABLE_ASSY_CDU:3,4 CST SENSOR 1/F
  • Company Profile

TS TECH (HONG KONG) CO.,LTD founded in 2003 in China,is a leading professional supplier of ATM modules and spares, and help hundreds of customers from around the world to source their NCR, Wincor,Diebold,hyosung,GRG parts.

TS TECH (HONG KONG) CO.,LTD has a professional sales and technical team.Most of our sales have more than 10years experience in ATM industry.Our sales know exactly what machine are used in each Market. They are also experienced in importing&exporting from each country.

It can save your communication times.

Our technical team consists of four members. We have top technicians for every brand.As all of them have years of working experience in manufacturers such as wincor diebold NCR hyosung.They can give you technical support.

We are a direct manufacturer in atm spare parts.our factory located in Guangzhou.TS also have good relationships with original manufacturer.we can get new original parts from manufacturer.

I trust TS can give you good support!

  • Our service

1. supply thousands of kinds of products including brands like Hyosung,

NCR, DIEBOLD, HITACHI, FUJITSU, WINCOR and so forth.

2. do OEM according to customers’ needs.

3. professional and quick online technical support and sollutions.

4. after-sale service is reliable.

5. prompt and on-time delivery.

  • Pics detail

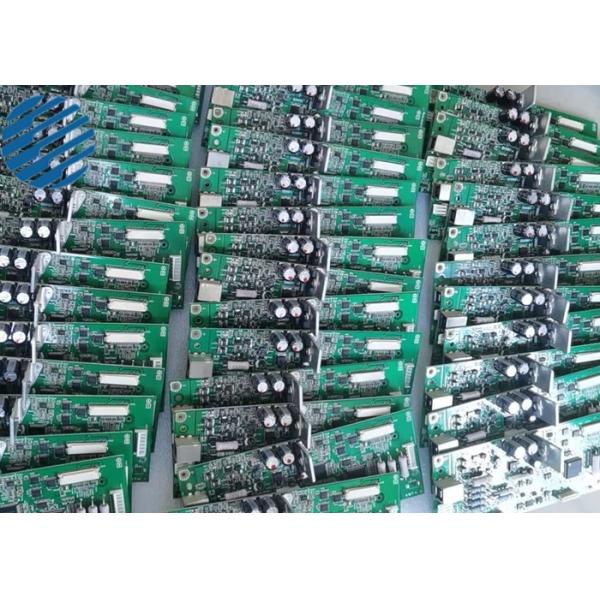

Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799

Hyosung ATM Motorized Card Reader ICT3Q8-3A2294 PCB S52200006799
