Specifications
Brand Name :
ATNJ
Model Number :
AS-LTE+5G
Certification :
CE,ROHS,CCC,TUV,BV, ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+450---580+kit
Payment Terms :
T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
1800MHz Frequency Range :
1710-1785MHz / 1805-1880MHz
N77--N78 Frequency Range :
customized 3300-3800MHz
Products Type :
5g signal booster, signal generator
Products Weight :
1.85kg
Package size :
54x19x16cm
Trademark :
ATNJ
Origin :
Shenzhen,CN
Description

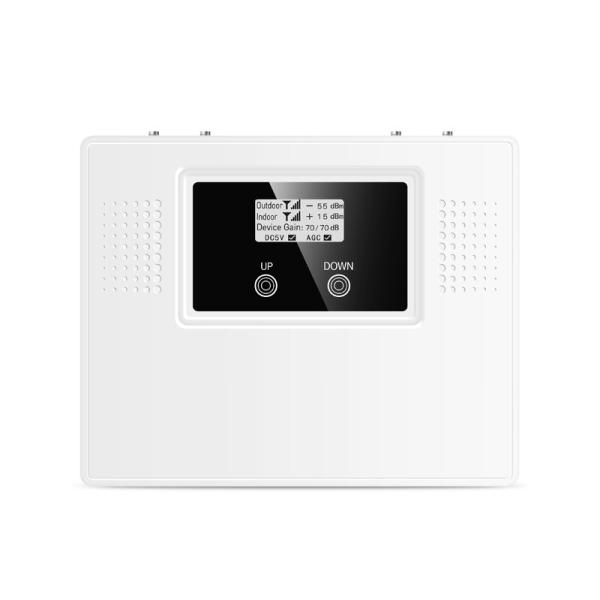

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular

General


The 5G Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

5G Signal Booster 1800MHz + N77 Customized 3300 - 4200MHz Cellular Signal Repeater Amplifier

How does it work?

1. RECEIVES SIGNAL

The powerful antenna reaches out to access a good signal, and delivers it to the booster.

2. BOOSTS SIGNAL

The booster receives the signal, amplifies it, and serves as a relay between your phone and the nearest cell tower.

3. BROADCASTS SIGNAL

Your devices get increased cell reception, and calls and data are fed through the booster back to the network.

Technical Specifications

LTE 1800 Performance Characteristics

Uplink

Downlink

Remark

Frequency range

1710MHz-1785 MHz

1805 MHz-1880 MHz

Bandwidth

75 MHz

75 MHz

Output power

17±2dBm

17±2dBm

Device gain

60±3dB

65±3dB

ALC/AGC Range

≥30dB

≥30dB

Noise

≤9dB

≤9dB

Ripple in band

≤8dB

≤8dB

VSWR

≤2.0dBm

≤2.0dBm

ACLR(dBc)

≤-36

≤-36

Time delay

≤3.0μs

≤3.0μs

Spurious emission

9kHz~150kHz

≤-36dBm @1kHz

150kHz~30MHz

≤-36dBm @10kHz

30MHz~1GHz

≤-36dBm @100kHz

1GHz~12.75GHz

≤-30dBm @1MHz

EVM

≤3.5%

≤3.5%

TDD-NR 3300---4200 Performance Characteristics

Uplink

Downlink

Frequency range

3300MHz-4200MHz or 3300MHz-4200MHz

Bandwidth

100 MHz

Output power

17±2dBm

17±2dBm

Device gain

60±3dB

60±3dB

ALC/AGC Range

≥30dB

≥30dB

Noise

≤9dB

≤9dB

Ripple in band

≤5dB

≤5dB

VSWR

≤2.0dBm

≤2.0dBm

ACLR(dBc)

≤-36

≤-36

Time delay

≤3.0μs

≤3.0μs

Spurious emission

9kHz~150kHz

≤-36dBm @1kHz

150kHz~30MHz

≤-36dBm @10kHz

30MHz~1GHz

≤-36dBm @100kHz

1GHz~12.75GHz

≤-30dBm @1MHz

256QAM EVM

≤3.5%

≤3.5%

Performance Characteristics

Working voltage

DC 5.0V

Working current

≤3.0A

Power adapter input voltage

AC 100~240V,50/60Hz

Power comsumption

≤15W

Enviroment temperature

-25℃~+55℃

relative humidity

≤85%

Device connection type

SMA-J

Power port

KLD-35-13

Device size

205×170×38mm

Weight

≤1Kg

Further detail pls click here for downloading the products specification:

1800MHz+N77 N78 A034 5G Signal Repeater.pdf

Selling Point

⭐ Intelligent to guide the installation with LCD .

⭐ Real time display the signal strength .

⭐ Automatic dormancy when no user make the calling .

⭐ Automatic alarm when installation mistake and provide the according solution .

⭐ Automatic adjust the system gain to avoid the repeater self-excitation .

⭐ Initiative reminding when the device was damaged .

⭐ Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
⭐ Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .

⭐With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

⭐ A variety of appearance customization.

Item Description

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celularBand N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular

The repeater makes the signal stronger in places with poor signal coverage such as:

1) Underground areas: basements, parking lots, tunnels;

2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;

3) Places distant from the BTS like private houses.

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular

Band N77 N78 5G Mobile Signal Booster LTE 4G repeater 5G amplificador de seal celular

FAQ:


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3.
How do I determine the best place to set up my booster?


How to select the best location is described fully in The installation guide. However, if you still cannot find a good place, you can contact us through chat or by email and we will help you with the setup.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if there are any other questions.
