Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material
Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material
Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material
Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material
Specifications
Brand Name :
ATNJ
Model Number :
AS-D
Certification :
CE,ROHS，CCC，TUV,BV， ISO
Place of Origin :
China
MOQ :
5Pcs
Price :
USD+40---49+kit
Payment Terms :
T/T, Western Union,Paypal,Alibaba,Bank transfering.
Supply Ability :
1000+unit+per day.
Delivery Time :
3-5 work days
Packaging Details :
Standard neutral packing,54x19x16cm(1 kit), 6kits as 1 carton(53x49x42cm)
Device Gain :
70dB
Output power :
17dbm
Frequency Range :
1920-1980MHz，2110-2170MHz
Color :
Black ,White Customized
Interface: :
SMA/F
Products type :
signal amplifier
Coverage :
100-300m2
Product name :
CDMA/GSM/DCS/WCDMA/LTE Mobile Phone Signal Booster/Repeater
Description

Smart Single Band 2100MHz 3G Signal Repeater Alloy Plastic Material

Mobile Signal Booster 2100MHz Cellular Repeater Amplifier Band1

Selling Point

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for choice.

Description

Specifications Parameters
Frequency Range (Customers to Choose) Uplink 1920-1980MHz
Downlink 2110-2170MHz
Frequency Bandwidth (3dB Bandwidth) 75MHz
Gain 70dB
Automatic gain control (Step Attenuation) 31dB @ 1dB/ Step
Auto Gain Control 20dB Min.
Output Power(Customers to Choose) 17±3dBm
Spurious Emission ≤ -15dBm/30kHz
9kHz~1GHz: ≤ -36dBm/30kHz
1GHz~12.75GHz: ≤ -30dBm/30kHz
Inter-Modulation Attenuation ACPR ≤ -40dBc / 30kHz (measured under rated output power)
In-band Ripple ≤ 3dB
VSWR <=2
I/O Impedance 50 Ω
Noise Figure ≤ 5dB
System Delay ≤ 5μs
RF Connector(Customers to Choose) SMA(F)
Operating Temperature - 10°C ~ + 55°C
Dimensions 165*130*40 (mm)
Indication LED Power supply

Further detail pls click here for downloading the products specification:

WCDMA 2100MHz B07 Signal Repeater.pdf

Product Images

Feature:

- Strong output power, wide coverage area .

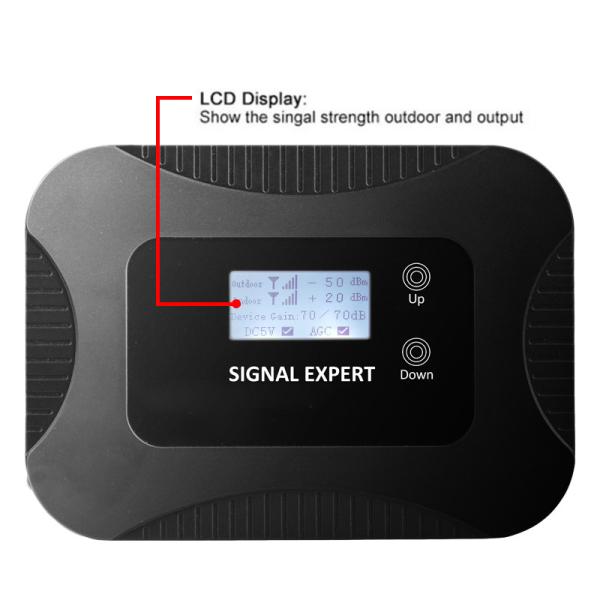

- LCD display signal in real time .

- High gain can support multiple loads .

FAQ


1. Are you trading company or manufacturer ? Could I use our own logo and label?

We are factory, with trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
A: Yes. We have a user manual and support technical support 24/7.

4. What is your warranty time?
We promise 3-year warranty for all products shipped from us. Man-made sabotage and natural factors are not within the scope of warranty.

5. Please feel free to contact us if any other questions.
