Specifications
Brand Name :
ATNJ
Model Number :
SDR TR
Certification :
CE, RoHs, CCC, ISO9001
Place of Origin :
shenzhen
MOQ :
1--5pcs
Price :
USD2150-USD2285
Payment Terms :
T/T,Paypal,Western Union，Alibaba insurance payment
Delivery Time :
30-50 working days
Packaging Details :
Neutral standard package 29*15*8cm
Type :
RF Module
Working frequency :
400MHz~8000MHz
multipliers :
424 18*18
attenuation range :
0~31dB
Description
SDR core PCBA board features:
1. SDR platform consisting of FPGA and RF direct acquisition transceiver.
2. 100K logic resources, 424 18*18 multipliers, resource-rich FPGA.
3. 4T4R 14-bit ADC and DAC RF direct sampling transceiver.
4. Working frequency: 400MHz~8000MHz.
5. Large scanning bandwidth, currently supports the maximum sampling bandwidth of 160MHz per channel; It can be designed to support a
maximum sampling bandwidth of 800MHz per channel.
6. 32 bit high-precision frequency control.
7. Each RF channel, input and output have DSA built-in, and the attenuation range is 0~31dB.
8. No LO leakage and I/Q imbalance.
9. Application: public network 3G, 4G, 5G, TDD and FDD mobile communications, signal monitoring systems, other radio radar and detection, private network communication systems, etc.
SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio
SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio

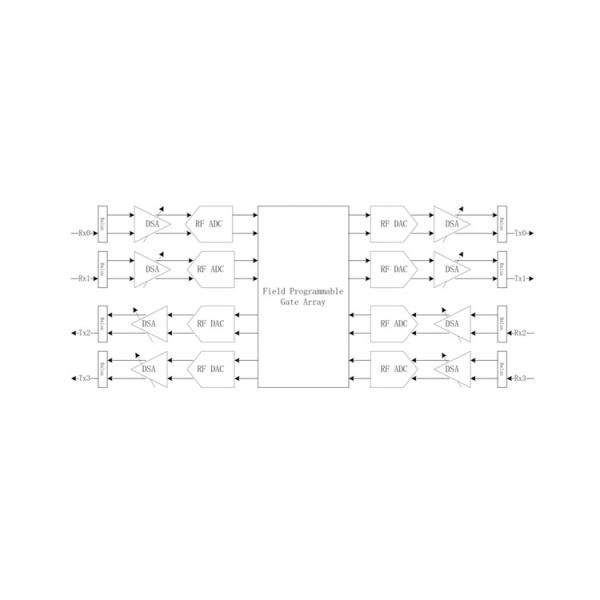

Card Diagram①
SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio
Card Diagram②
SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio
Card Diagram③
SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio
Typical Application

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And RadioSDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio

SDR TR Card Specially Used For Signal Repeater, Signal Monitoring System And Radio

FAQ

1. Are you trading company or manufacturer ? Could I use our own logo and label?
We are the factory, with good trading service. We provide OEM/OEM service.

2. Can I have a sample order? What is your MOQ?
Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.

3. Is it easy to set up your items?
Yes. We have a user manual and support technical support 24/7.
