16-25 Ton YAKAI Scrap Handling Magnets Manufacturer From China

Hydraulic Magnet Technical Parameter

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

* Lifting Ability Influenced by the Permeability of Scrap, the Data Range Would be Various Due to Different Working Condition

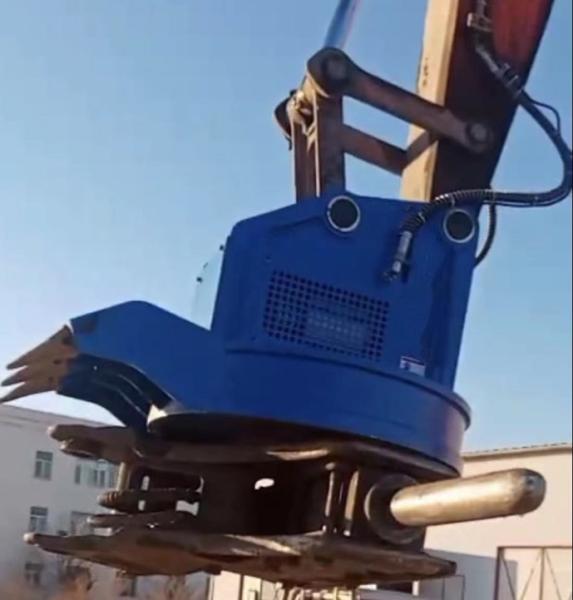

Excavator Hydraulic Magnet Introduction

The excavator hydraulic magnet is a wide-used lifting purpose tool for excavators. It is an excavator attachment modified from an electromagnetic magnet. The hydraulic oil of the excavator passes through the built-in electric generator to generate a strong magnetic field at the bottom. It is used for attacking and lifting steel scrap and cast iron, and it is used for handling and unloading, and for transporting ferromagnetic heavy objects. It has better moving and lifting functions. Even in high temperatures, harsh environments, rain and snow, low temperature, and other environments, it can still be used normally.

YAKAI Hydraulic Magnet Features

• High-Speed lifting and release operations can finish tasks quickly and efficiently.
• Before delivery, and related accessories are matched, the user scene, as long as according to the manual data,
• Option with tooth or without a tooth, the following is an excavator magnet with teeth. It would help clean the concrete rock to find the steel scrap and other iron, and steel objects.
• Rhino horn design is easy to install and use.
• Hydraulic Drive, No need to install electric cable, easy install, saves time and labor.
• Strong adsorption, lifting, and releasing speed fast.​
• Semi-permanent design reduces maintenance costs.
• Only Require 24-volt Excavator Battery, no need to install extra cable

Application File of Hydraulic Magent

• Gathering scrap steel or metal objects from demolition or second demolition worksites to recycle.
• Recycling the slab sheet, and much another steel scrap.
• Loading and unloading steel or iron objects
• Cleaning or replacing train railway

Tips Better to Know Before Installing Hydraulic Magnet on Your Excavator

• First, confirm whether the components of the excavator suction cup are complete and clean before the installation process.
• Second, there are hoisting screw holes on both sides of the suction cup of the excavator.
• Third, During installation, only T-shaped screws need to be screwed in to complete the hoisting, and then the T-shaped blocks and screws are used to fix it on the workbench, and then connect the mechanical equipment.
• DC power supply and ground wire, and then finely grind the upper plane of the suction cup of the excavator once so that the parallelism of the upper plane and the bottom surface can be kept consistent, and there will be no gap between the two planes during the specific construction process.
• affecting work efficiency. When completing the above installation progress, it is necessary to carry out commissioning first, which is to overlap the two adjacent magnetic poles to obtain sufficient positioning suction, and then operate the construction normally. If there are no problems with the whole process, then press the controller button to easily power up and demagnetize.
• But if there is any problem in the process, you need to turn off the power immediately, stop for inspection and maintenance, check the problem in time, and then do this until the problem is solved.
• Do not continue to operate when there is a problem, it is easy to damage the excavator and hydraulic magnet.
