2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
Specifications
Brand Name :
DaYan.HB
Model Number :
DYA250S-450S
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1
Price :
USD 13000-30000 / Unit
Payment Terms :
L/C, D/P, T/T
Supply Ability :
1250 Units per Year
Delivery Time :
7-10 Days
Packaging Details :
Wooden Box
Material :
High strength steel
Weight :
2600 kg
OEM :
Yes
Core Components :
Engine, Motor, Pump
Color :
Yellow, Black, or as customer's request
Turning Angle :
360degree
Description

Excavator Attachment Hydraulic Pile Hammer Hydraulic Post Driver

Vibratory Hammer

YAKAI vibration pile driver is also known as fence pile driver/road fence pile driver. In the construction of the common pile, drivers have hydraulic walking type diesel hammer pile driver and high-frequency hydraulic vibration pile driver two.

2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer

Factory Produce Process

2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer

Excavator Vibro Hammer Specification

Model

Eccentric Moment Suitable Excavator Drilling Depth Frequency Centrifugal Force Working Pressure Working Flow Max Turning Degree Weight
Main Body Vice Arm Total Weight
Nm ton m rpm kN bar Ipm degree kg kg kg
DYA150S 32 12-17 5 2500 172 300 120 180 1300 260 1560
DYA250S 36 20-26 5-11 2800 265 300 155 180 1900 400 2300
DYA330S 50 28-35 12-15 2800 420 320 168 180 2650 650 3300
DYA350S 65 35-40 15-18 2800 580 320 210 180 2900 650 3550
DYA450S 85 40-45 18 2800 750 320 255 180 3000 650 3650

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

Extension Boom

Pile Driver Extension Boom, Also Known as Vice Arm, is the Connection Boom between Pile Sheet Hammer and Excavator. We have two designs for Extension Boom. One is a Valve Located near to External Cover of the Excavator, Second Design is Improved, and the Control Center Built-in Extension Boom Would Make the Installation Easier. The Following Picture is Valve's Built-in Vice Arm.

2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer

If you have a demand for a longer extension boom, we could offer a customized Extension Arm at extra cost.

Vibro Hammer Clamp

2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer

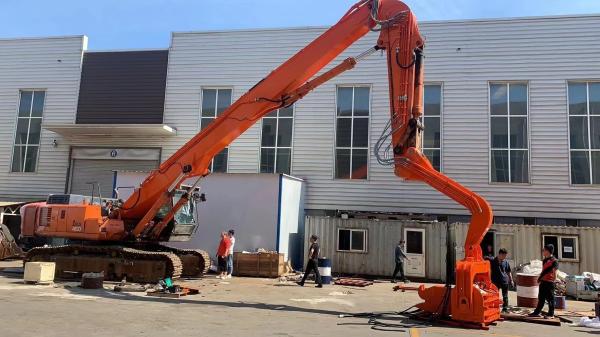

Vibratory Hammer Real Work shot


Hydraulic pile driver can be used to build piles, holes, also can be used for high-speed railway construction; through pebble layer, sand layer, and other soil type


The hydraulic pile driver suit for municipal, bridge, cofferdam, building foundation, and other short pile engineering.


The vibratory pile method is more efficient than other methods. It is mainly suitable for all kinds of sheet piles, I-steel piles, cement square piles, cylinder piles, guardian piles, and so on. This kind of pile driving method is most suitable for pile driving in sand soil, pile driving effect in clay is poor, need to choose a large power model.

2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer2600 Kg Sheet Piling Attachment For Excavator 360 Degree Hammer
