YAKAI Vibratory Hammer for Excavator Weight from 12 tons to 45 tons

Vibratory Hammer

A vibratory hammer, also known as Pile Sheet Hammer / Driver, is Mainly Used for Pushing in or Pulling out the Operation of Different Shape Pipes / Steel Sheet Plates, etc.

Which Excavator Attachments Could be Used for Sheet Metal Work? The Answer is Pile Sheet Drive! It would Quickly Push the Metal Sheet, Pipes, or Other Stuff into the Soil by Producing Vertical Power.

Excavator Vibro Hammer Working Principle

The vibrating pile driver uses its high-frequency vibration to vibrate the pile at high speed and transmits the vertical vibration generated by the machine to the pile, causing the soil structure around the pile to change due to vibration, and the strength is reduced, and the soil around the pile is liquefied. Thereby reducing the frictional resistance between the pile body and the ground, and then sinking it into the soil by vibratory piling and the weight of the pile body.

Factory Produce Process:

Excavator Vibro Hammer Specification:

* The Parameter above may change with the technology improvement, will not notice additionally, please understand.

YAKAI Pile Sheet Hammer Features

• Elastomer: High-Performance Imported Damping Rubber Block, Slable Quality, and Long Service Life.
• Ventilation Port: To Ensure the Balance of Pressure in the Gearbox, Stable and Removal.
• Adaptor Rotating System: 360° Rotation Disc.
• Rotation Arm: 180° Rotation Arm Detachable Boom and Turnover Shelf.
• Gear Box: Using Original Imported Hydraulic Motor, Double Efficiency, Excellent Quality.
• Main Clamp: Double Pressure Protection System, Stable Design with Powerful Clamp Force.

Extension Boom

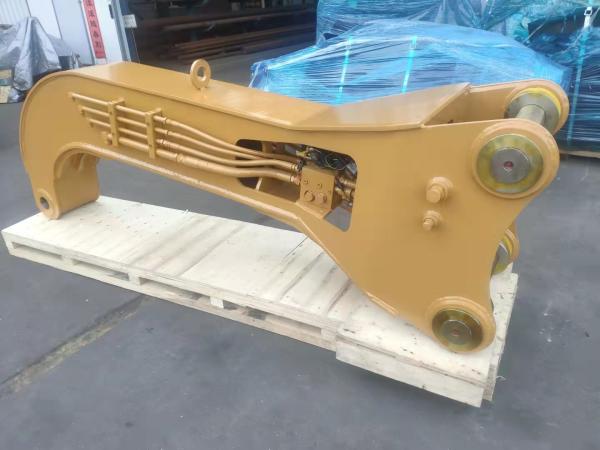

Pile Driver Extension Boom, Also Known as Vice Arm, is the Connection Boom between Pile Sheet Hammer and Excavator. We have two designs for Extension Boom. One is a Valve Located near to External Cover of the Excavator, Second Design is Improved, the Control Center Built-in Extension Boom Would Make the Installation Easier. The Following Picture is Valve Built-in Vice Arm.

*If you have a demand for a longer extension boom, we could offer a customized Extension Arm at extra cost.

Vibro Hammer Clamp

We have various design clamps for different working conditions:

• Fixed Clamp: for Photovoltaic, for Cement, for Cement Cuboid;
• Movable Clamp: Metal Steel, Cement Mixing Pile, Cement Round Pile, Cement Cuboid Pile;

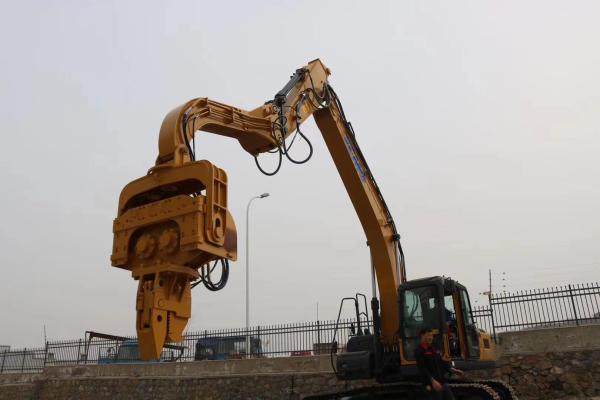

Vibratory Hammer Real Work shot
